System Power PWM Controller for Notebook Computers with Charge Pump CXSD62105 integrates dual step-down, constant-ontime, synchronous PWM controllers (that drives dual Nchannel MOSFETs for each channe

The CXSD62105 integrates dual step-down, constant-ontime, synchronous PWM controllers (that drives dual Nchannel MOSFETs for each channel) and two low dropout regulators as well as various protections into a chip. The PWM controllers step down high voltage of a battery to generate low-voltage for NB applications. The output of PWM1 and PWM2 can be adjusted from 2V to 5.5V by setting a resistive voltage-divider from VOUTx to GND. The linear regulators provide 5V and 3.3V output for standby power supply. The linear regulators provide up to 100mA output current. When the PWMx output voltage is higher than LDOx bypass threshold, the related LDOx regulator is shut off and its output is connected to VOUTx by internal switchover MOSFET. It can save power dissipation. The charge pump circuit with 270kHz clock driver uses VOUT1 as its power supply to generate approximately 15V DC voltage. The CXSD62105 provides excellent transient response and accurate DC output voltage in either PFM or PWM Mode. In Pulse-Frequency Mode (PFM), the CXSD62105 provides very high efficiency over light to heavy loads with loadingmodulated switching frequencies. The Forced-PWM Mode works nearly at constant frequency for low-noise requirements. The unique ultrasonic mode maintains the switching frequency above 25KHz, which eliminatesnoise in audio applications. The CXSD62105 is equipped with accurate sourcing and current-limit, output under-voltage output over-voltage protections, being perfect for NB applications. A 1.7ms (typ.) digital soft-start can reduce the start-up current. A soft-stop function actively discharges the output capacitors by the discharge device. The CXSD62105 has individual enable controls for each PWM channels and LDOs. Pulling both ENILIM1/2 pin and ENLDO pin low shuts down the whole chip with low quiescent current close to zero. The CXSD62105 is available in a TQFN4x4-24A package.

产品特点 返回TOP

· Wide Input voltage Range from 6V to 25V

· Provide 5 Independent Outputs with ±1.5% Accuracy Over-Temperature

- PWM1 Controller with Adjustable (2V to 5.5V) Output

- PWM2 Controller with Adjustable (2V to 5.5V) Output

- 100mA Low Dropout Regulator(LDO5) with Fixed 5V Output

- 100mA Low Dropout Regulator(LDO3) with Fixed 3.3V Output

- 270kHz Clock Signal for 15V Charge Pump (Used VOUT1 as Its Power Supply)

· Excellent Line/Load Regulations about ±1.5%OverTemperature Range

· ±1%, (±1.5%, 50mA) 2.0V Reference Voltage Output

· Built-In POR Control Scheme Implemented

· Selectable Forced-PWM or Automatic PFM/PWM (with Selectable Ultrasonic Operation)

· Constant-On-Time ControlSchemewith Frequency Compensation for PWM Mode

· Selectable Switching Frequency in PWM Mode

· Built-in DigitalSoft-StartforPWM Outputs andSoftStop for PWM Outputs and LDO Outputs

· Integrated Bootstrap Forward P-CH MOSFET

· High Efficiency over Light to Full Load Range (PWMs)

· Built-in Power Good Indicators (PWMs)

· Independent Enable Inputs (PWMs, LDO)

· 70% Under-Voltage and 125% Over-Voltage Protections (PWM)

· Adjustable Current-Limit Protection (PWMs)

- Using Sense Low-Side MOSFET’s RDS(ON)

· Over-Temperature Protection

· 4mmx4mm Thin QFN-24 (TQFN4x4-24A) package

· Lead Free and Green Device Available (RoHS Compliant)

应用范围 返回TOP

· Notebook and Sub-Notebook Computers

· Portable Devices

· DDR1, DDR2, and DDR3 Power Supplies

· 3-Cell and 4-Cell Li+ Battery-Powered Devices

· Graphic Cards

· Game Consoles

· Telecommunications

技术规格书（产品PDF) 返回TOP

需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！


产品封装图 返回TOP

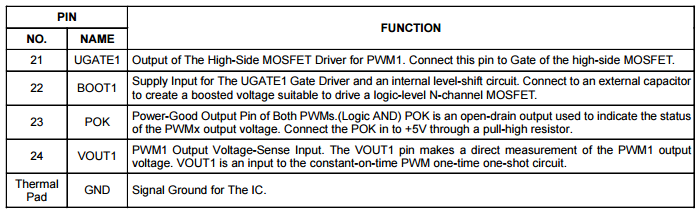

电路原理图 返回TOP

相关芯片选择指南返回TOP 更多同类产品......

Switching Regulator > Buck Controller
Part_No	Package	Archi tectu	Phase	No.of PWM Output	Output Current (A)	Input Voltage (V)		Reference Voltage (V)	Bias Voltage (V)	Quiescent Current (uA)
Part_No	Package	Archi tectu	Phase	No.of PWM Output	Output Current (A)	min	max	Reference Voltage (V)	Bias Voltage (V)	Quiescent Current (uA)
CXSD6273	SOP-14 QSOP-16 QFN4x4-16	VM	1	1	30	2.9	13.2	0.9	12	8000
CXSD6274	SOP-8	VM	1	1	20	2.9	13.2	0.8	12	5000
CXSD6274C	SOP-8	VM	1	1	20	2.9	13.2	0.8	12	5000
CXSD6275	QFN4x4-24	VM	2	1	60	3.1	13.2	0.6	12	5000
CXSD6276	SOP-8	VM	1	1	20	2.2	13.2	0.8	5~12	2100
CXSD6276A	SOP-8	VM	1	1	20	2.2	13.2	0.8	5~12	2100
CXSD6277/A/B	SOP8\|TSSOP8	VM	1	1	5	5	13.2	1.25\|0.8	5~12	3000
CXSD6278	SOP-8	VM	1	1	10	3.3	5.5	0.8	5	2100
CXSD6279B	SOP-14	VM	1	1	10	5	13.2	0.8	12	2000
CXSD6280	TSSOP-24 \|QFN5x5-32	VM	1	2	20	5	13.2	0.6	5~12	4000
CXSD6281N	SOP14 QSOP16 QFN-16	VM	1	1	30	2.9	13.2	0.9	12	4000
CXSD6282	SOP-14	VM	1	1	30	2.2	13.2	0.6	12	5000
CXSD6282A	SOP-14	VM	1	1	30	2.2	13.2	0.6	12	5000
CXSD6283	SOP-14	VM	1	1	25	2.2	13.2	0.8	12	5000
CXSD6284/A	LQFP7x7 48 TQFN7x7-48	VM	1	6	0.015	1.4	6.5	-	5	1800
CXSD6285	TSSOP-24P	VM	1	2	20	2.97	5.5	0.8	5~12	5000
CXSD6286	SOP-14	VM	1	1	10	5	13.2	0.8	12	3000
CXSD6287	SOP-8-P\|DIP-8	VM	1	1	30	2.9	13.2	1.2	12	3000
CXSD6288	SSOP28 QFN4x4-24	VM	1	2	20	5	24	0.9	5	1200
CXSD6289	SOP-20	VM	1	2	20	2.2	13.2	0.6	5~12	4000
CXSD6290	SOP8\|DFN3x3-10	VM	1	2	-	-	-	-	5~12	550
CXSD6291HC	DIP8\|SOP-8	VM	1	1	1	1.2	9	24	5	9 ~ 24
CXSD6292	SSOP16 QFN4x4-16 TQFN3x3-16	VM	1	1	25	3	25	0.6	5	1700
CXSD6293	TDFN3x3-10	COT	1	1	25	3	25	0.5	5	350
CXSD6294	QFN4x4-24	CM	2	1	40	4.5	13.2	0.6	5~12	4000
CXSD6295	SOP8P TDFN3x3-10	VM	1	1	20	3	13.2	0.8	5~12	2500
CXSD6296A\|B\|C\|D	SOP8P	VM	1	1	25	3	13.2	0.6\|0.8	5~12	1200
CXSD6297	TDFN3x3-10	VM	1	1	25	4	13.2	0.8	5~12	2000
CXSD6298	TDFN3x3-10	COT	1	1	25	4.5	25	0.6	5~12	80
CXSD6299\|A	SOP-8P	VM	1	1	25	4.5	13.2	0.8	5~12	16000
CXSD62100	TQFN3x3-10	VM	1	1	25	4.5	13.2	0.6	5~12	2500
CXSD62101\|L	TDFN3x3-10	COT	1	1	30	3	25	0.8	5~12	2000
CXSD62102	TQFN3x3-16	COT	1	1	30	1.8	28	0.6	5	600
CXSD62102A	TQFN 3x3 16	COT	1	1	30	1.8	28	0.6	5	600
CXSD62103	QFN4x4-24	VM	2	1	50	4.5	13.2	0.6	5~12	5000
CXSD62104	TQFN4x4-24	COT	1	2	15	6	25	2	N	550
CXSD62105	TQFN4x4-24	COT	1	2	15	6	25	2	N	550
CXSD62106\|A	TQFN4x4-4 TQFN3x3-20	COT	1	2	20	3	28	0.75	5	800
CXSD62107	TQFN3x3-16	COT	1	1	20	1.8	28	0.75	5	400
CXSD62108	QFN3.5x3.5-14 TQFN3x3-16	COT	1	1	20	1.8	28	0.75	5	400
CXSD62109	TQFN3x3-16	COT	1	2	20	1.8	28	0.75	5	400
CXSD62110	QFN3x3-20 TQFN3x3-16	COT	1	2	20	3	28	1.8\|1.5\|0.5	5	740
CXSD62111	TQFN4x4-24 \|QFN3x3-20	CM	1	2	15	5	28	0.5	N	3000
CXSD62112	TDFN3x3-10	COT	1	1	20	1.8	28	0.5	5	250
CXSD62113\|C	TQFN3x3-20	COT	1	2	15	6	25	2	N	550
CXSD62113E	TQFN 3x3 20	COT	2	2	11	6	25	2	N	550
CXSD62114	TQFN3x3-20	COT	2	2	11	5.5	25	2	N	280
CXSD62115	QFN4x4-24	VM	2	1	60	3.1	13.2	0.85	12	5000
CXSD62116A\|B\|C	SOP-8P	VM	1	1	20	2.9	13.2	0.8	12	16000
CXSD62117	SOP-20	VM	2	2	30	10	13.2	1	12	5000
CXSD62118	TDFN3x3-10	COT	1	1	25	1.8	28	0.7	5	250
CXSD62119	TQFN3x3-20	COT	2	1	40	1.8	25	REFIN Setting	5	700
CXSD62120	QFN 3x3 20 TQFN 3x3 16	COT	1	2	20	3	28	1.8\|1.5 1.35\|1.2 0.5	5	800
CXSD62121A	TQFN3x3 20	COT	1	2	15	3	28	0.75	5	220
CXSD62121B	TQFN3x3 20	COT	1	2	15	3	28	0.75	5	220
CXSD62121	TQFN3x3-20	COT	1	2	20	3	28	0.75	5	180
