Features
Adjustable Output Voltage from +0.8V to +12V
- 0.8V Reference Voltage
- +1% Accuracy over Temperature
Operates from An Input Battery Voltage Range of
+2.7V to +28V
Power-On-Reset Monitoring on VCC pin
Excellent line and load transient responses
PFM mode for increased light load efficiency
Programmable PWM Frequency from 100kHz to
1000kHz
Integrated 30mΩ at VCC=5V N-Channel MOSFET
For High Side
Integrated 9mΩ at VCC=5V N-Channel MOSFET For
Low Side
Integrated Bootstrap Forward P-CH MOSFET
External Adjustable Soft-Start and Soft-Stop
Selectable Forced PWM or automatic PFM/PWM
mode
Power Good Monitoring
70% Under-Voltage Protection
125% Over-Voltage Protection
Current-Limit Protection
- Using Sense Low-Side MOSFET’s RDS(ON)
Over-Temperature Protection

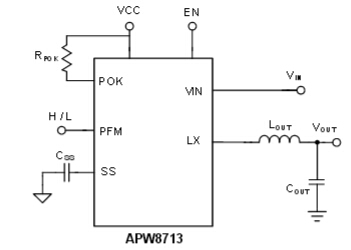

General Description
The APW8713 is a 8A, synchronous, step-down converter
with integrated 30mΩ N-channel High-Side MOSFET and
9mΩ Low-Side MOSFET. The APW8713 steps down high
voltage to generate low-voltage chipset or RAM supplies
in notebook computers.
The APW8713 provides excellent transient response and
accurate DC voltage output in either PFM or PWM Mode.
In Pulse Frequency Mode (PFM), the APW8713 provides
very high efficiency over light to heavy loads with loading-
modulated switching frequencies. In PWM Mode, the con-
verter works nearly at constant frequency for low-noise
requirements.
The APW8713 is equipped with accurate current-limit,
output under-voltage, and output over-voltage protections,
perfect for various applications. A Power-On-Reset func-
tion monitors the voltage on VCC to prevent wrong
operation during power-on. The APW8713 has external
adjustable soft-start and built-in an integrated output dis-
charge method for soft stop. A soft-start ramps up the
output voltage with programmable timing to reduce the
start-up current. A soft-stop function actively discharges
the output capacitors.
The APW8713 is available in TQFN4x4-23 (Power PAK).
相关产品
Part_No | Package & Pins | Topology | Archit ecture | No. of PWM Outputs | Drive Lout (A) | Vin (V) | Fmax(Khz) | Vref (V) | R-Top (milohm) | R-Sync (milohm) | Iq (No load) (uA) | |
min | max | |||||||||||
APW7083 | TQFN5x6-28 | Buck | CM | 1 | 5 | 4.5 | 26 | 380 | 0.8 | 50 | 20 | 1000 |
APW7085 | SOP-8 | Buck | CM | 1 | 2 | 4.5 | 26 | 380 | 0.8 | 100 | 1000 | |
APW7089 | SOP-8P | Buck | CM | 1 | 4 | 4.5 | 26 | 380 | 0.8 | 80 | 1000 | |
APW7104 | SOT-23-5 | Buck | CM | 1 | 1 | 2.7 | 6 | 1500 | 0.6 | 280 | 250 | 25 |
APW7104A | SOT-23-5 | Buck | CM | 1 | 1 | 2.7 | 6 | 1500 | 0.6 | 280 | 250 | |
APW7142 | SOP-8 | Buck | CM | 1 | 3 | 4.3 | 14 | 500 | 0.8 | 70 | 70 | 500 |
APW7145 | SOP-8P | Buck | CM | 1 | 3 | 4.3 | 14 | 500 | 0.8 | 55 | 45 | 500 |
APW7153B | TDFN3x3-10 | 3 | 2.6 | 5.5 | 2000 | 0.8 | 110 | 110 | 460 | |||
APW7176 | TDFN3x3-10 | Buck | CM | 2 | 1 | 2.7 | 6 | 1500 | 0.6 | 280 | 250 | 500 |
APW7176A | TDFN3x3-10 | Buck | CM | 2 | 1 | 2.7 | 6 | 1500 | 0.6 | 280 | 250 | |
APW7178 | TDFN2x2-6 | Buck | CM | 1 | 1 | 2.7 | 6 | 1500 | 0.6 | 280 | 250 | 25 |
APW7178A | TDFN2x2-6 | Buck | CM | 1 | 1 | 2.7 | 6 | 1500 | 0.6 | 280 | 250 | |
APW7179 | TDFN3x3-12 | Buck | CM | 2 | 1 | 2.7 | 6 | 1500 | 0.6 | 280 | 250 | 25 |
APW7179A | TDFN3x3-12 | Buck | CM | 2 | 1 | 2.7 | 6 | 1500 | 0.6 | 280 | 250 | |
APW7290 | TDFN2x2-8 | CM | 1 | 1 | 3.3 | 8 | 1500 | 0.6 | 280 | 250 | 25 | |
APW7300 | SOP-8 | Buck | CM | 1 | 2 | 4.5 | 24 | 340 | 0.925 | 110 | 110 | 1900 |
APW7301 | SOP-8P | Buck | CM | 1 | 3 | 4.5 | 24 | 340 | 0.925 | 110 | 110 | 1900 |
APW7302 | SOP-8 | Buck | CM | 1 | 2 | 4.5 | 24 | 340 | 0.92 | 130 | 130 | 1900 |
APW7302B | SOP-8P | Buck | CM | 1 | 2 | 4.5 | 24 | 340 | 0.92 | 130 | 130 | 1900 |
APW7303 | SOP-8P | Buck | CM | 1 | 3 | 4.5 | 24 | 340 | 0.92 | 85 | 85 | 1900 |
APW7304 | SOP-8P | Buck | CM | 1 | 4 | 4.5 | 24 | 340 | 0.8 | 85 | 85 | 1900 |
APW7311 | SOP-8P | Buck | CM | 1 | 3 | 4.5 | 24 | 1300 | 0.925 | 110 | 110 | 1900 |
APW7312 | SOP-8 | Buck | CM | 1 | 2 | 4.5 | 24 | 340 | 0.925 | 110 | 110 | 1900 |
APW7313 | SOP-8P | Buck | CM | 1 | 3 | 4.5 | 24 | 340 | 0.925 | 110 | 110 | 1900 |
APW7314 | TSOT-23-8 | Buck | CM | 1 | 2 | 4.5 | 24 | 500 | 0.8 | 150 | 70 | 500 |
APW7322 | SOP-8P | Buck | CM | 1 | 2 | 2.5 | 6 | 1000 | 0.8 | 85 | 75 | 460 |
APW7323 | SOP-8P | Buck | CM | 1 | 3.2 | 2.5 | 6 | 1000 | 0.8 | 85 | 75 | 460 |
APW7324 | SOP-8P | Buck | CM | 1 | 4 | 2.5 | 6 | 500 | 0.8 | 85 | 75 | 460 |
APW7325 | SOP-8P | Buck | CM | 1 | 5 | 2.5 | 6 | 1000 | 0.6 | 65 | 55 | 460 |
APW7334 | SOP-8 | Buck | CM | 1 | 2 | 4.5 | 24 | 340 | 0.8 | 110 | 110 | 1900 |
APW7335 | SOP-8P | Buck | CM | 1 | 3 | 4.5 | 24 | 340 | 0.8 | 110 | 110 | 1900 |
APW7336 | TDFN3x3-10 | Buck | CM | 1 | 2 | 4.5 | 24 | 340 | 0.8 | 110 | 110 | 1900 |
APW7337 | TDFN3x3-10 | Buck | CM | 1 | 3 | 4.5 | 24 | 340 | 0.8 | 110 | 110 | 1900 |
APW8713 | TQFN4x4-23 | Buck | COT | 1 | 6 | 2.7 | 28 | 100~1000 | 0.8 | 30 | 9 | 750 |
APW8802 | TQFN5x6-28 | Buck | COT | 1 | 8 | 3 | 25 | 500 | 0.75 | 12 | 12 | 400 |
APW8804 | TDFN3x3-10 | Buck | CM | 1 | 3 | 2.6 | 6 | 1000 | 0.6 | 65 | 55 | 460 |
APW8805 | TDFN3x3-10 | Buck | CM | 1 | 3 | 2.6 | 6 | 1000 | 0.6 | 75 | 55 | 460 |
APW8807 | TQFN3x3-16 | Buck | COT | 1 | 8 | 6 | 28 | 500 | 0.6 | 24 | 14 | 80 |
APW8824 | TSOT-23-6 | Buck | CM | 1 | 1 | 2.7 | 5.5 | 1500 | 0.6 | 280 | 250 | 25 |
APW8835 | TDFN3x3-10 | Buck | CM | 1 | 3 | 4.5 | 24 | 600 | 0.8 | 70 | 70 | 400 |
APW7414 | TSOT-23-8A | Buck | CM | 1 | 2 | 4.5 | 24 | 500 | 0.788 | 150 | 70 | 1000 |
APW7319 | TSOT-23-8A | Buck | CM | 1 | 2.5 | 4.5 | 24 | 500 | 0.807 | 140 | 60 | 1000 |
|
