Features
Wide Input Voltage Range from 7.5V to 24V
3A Continuous Output Current
Adjustable Output Voltage from 0.8V to 20V
VREF=0.8V+1% over all Load & Line Regulation &
TC Range
Integrated High/Low Side MOSFET
High Efficiency Performance up to 95% scale
Low Shutdown Current <1µA scale
Built-in Internal 1.5ms Soft-Start & Soft-Stop
Functions
Fixed 600kHz Switching Frequency with Maximum
90% Duty
Force PWM Mode Operation
Built-in Current Mode Control for Fast Response &
MLCC supports with Internal
Stable with Low ESR Capacitors
Power-On-Reset Detection on VCC & VIN
Over-Temperature Protection
Over Voltage Protection
Current-Limit Protection with Frequency Foldback
General Description

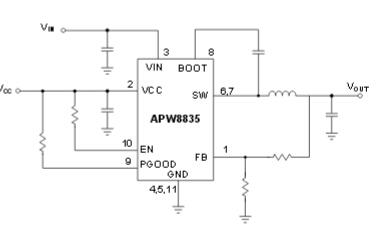

APW8835 is a 3A synchronous buck converter with inte-
grated power MOSFETs. The APW8835 design with a
current-mode control scheme, can convert wide input
voltage of 7.5V to 24V to the output voltage adjustable
from 0.8V to 20V to provide excellent output voltage
regulation.
The APW 8835 is equipped with force PW M mode
operation.
The APW8835 is also equipped with Power-on-reset, soft
start and whole protections (under-voltage, over-voltage,
over-temperature and current-limit) into a single package.
This device, available TDFN3x3-10 provides a very com-
pact system solution external components and PCB area.
相关产品
Part_No | Package & Pins | Topology | Archit ecture | No. of PWM Outputs | Drive Lout (A) | Vin (V) | Fmax(Khz) | Vref (V) | R-Top (milohm) | R-Sync (milohm) | Iq (No load) (uA) | |
min | max | |||||||||||
APW7083 | TQFN5x6-28 | Buck | CM | 1 | 5 | 4.5 | 26 | 380 | 0.8 | 50 | 20 | 1000 |
APW7085 | SOP-8 | Buck | CM | 1 | 2 | 4.5 | 26 | 380 | 0.8 | 100 | 1000 | |
APW7089 | SOP-8P | Buck | CM | 1 | 4 | 4.5 | 26 | 380 | 0.8 | 80 | 1000 | |
APW7104 | SOT-23-5 | Buck | CM | 1 | 1 | 2.7 | 6 | 1500 | 0.6 | 280 | 250 | 25 |
APW7104A | SOT-23-5 | Buck | CM | 1 | 1 | 2.7 | 6 | 1500 | 0.6 | 280 | 250 | |
APW7142 | SOP-8 | Buck | CM | 1 | 3 | 4.3 | 14 | 500 | 0.8 | 70 | 70 | 500 |
APW7145 | SOP-8P | Buck | CM | 1 | 3 | 4.3 | 14 | 500 | 0.8 | 55 | 45 | 500 |
APW7153B | TDFN3x3-10 | 3 | 2.6 | 5.5 | 2000 | 0.8 | 110 | 110 | 460 | |||
APW7176 | TDFN3x3-10 | Buck | CM | 2 | 1 | 2.7 | 6 | 1500 | 0.6 | 280 | 250 | 500 |
APW7176A | TDFN3x3-10 | Buck | CM | 2 | 1 | 2.7 | 6 | 1500 | 0.6 | 280 | 250 | |
APW7178 | TDFN2x2-6 | Buck | CM | 1 | 1 | 2.7 | 6 | 1500 | 0.6 | 280 | 250 | 25 |
APW7178A | TDFN2x2-6 | Buck | CM | 1 | 1 | 2.7 | 6 | 1500 | 0.6 | 280 | 250 | |
APW7179 | TDFN3x3-12 | Buck | CM | 2 | 1 | 2.7 | 6 | 1500 | 0.6 | 280 | 250 | 25 |
APW7179A | TDFN3x3-12 | Buck | CM | 2 | 1 | 2.7 | 6 | 1500 | 0.6 | 280 | 250 | |
APW7290 | TDFN2x2-8 | CM | 1 | 1 | 3.3 | 8 | 1500 | 0.6 | 280 | 250 | 25 | |
APW7300 | SOP-8 | Buck | CM | 1 | 2 | 4.5 | 24 | 340 | 0.925 | 110 | 110 | 1900 |
APW7301 | SOP-8P | Buck | CM | 1 | 3 | 4.5 | 24 | 340 | 0.925 | 110 | 110 | 1900 |
APW7302 | SOP-8 | Buck | CM | 1 | 2 | 4.5 | 24 | 340 | 0.92 | 130 | 130 | 1900 |
APW7302B | SOP-8P | Buck | CM | 1 | 2 | 4.5 | 24 | 340 | 0.92 | 130 | 130 | 1900 |
APW7303 | SOP-8P | Buck | CM | 1 | 3 | 4.5 | 24 | 340 | 0.92 | 85 | 85 | 1900 |
APW7304 | SOP-8P | Buck | CM | 1 | 4 | 4.5 | 24 | 340 | 0.8 | 85 | 85 | 1900 |
APW7311 | SOP-8P | Buck | CM | 1 | 3 | 4.5 | 24 | 1300 | 0.925 | 110 | 110 | 1900 |
APW7312 | SOP-8 | Buck | CM | 1 | 2 | 4.5 | 24 | 340 | 0.925 | 110 | 110 | 1900 |
APW7313 | SOP-8P | Buck | CM | 1 | 3 | 4.5 | 24 | 340 | 0.925 | 110 | 110 | 1900 |
APW7314 | TSOT-23-8 | Buck | CM | 1 | 2 | 4.5 | 24 | 500 | 0.8 | 150 | 70 | 500 |
APW7322 | SOP-8P | Buck | CM | 1 | 2 | 2.5 | 6 | 1000 | 0.8 | 85 | 75 | 460 |
APW7323 | SOP-8P | Buck | CM | 1 | 3.2 | 2.5 | 6 | 1000 | 0.8 | 85 | 75 | 460 |
APW7324 | SOP-8P | Buck | CM | 1 | 4 | 2.5 | 6 | 500 | 0.8 | 85 | 75 | 460 |
APW7325 | SOP-8P | Buck | CM | 1 | 5 | 2.5 | 6 | 1000 | 0.6 | 65 | 55 | 460 |
APW7334 | SOP-8 | Buck | CM | 1 | 2 | 4.5 | 24 | 340 | 0.8 | 110 | 110 | 1900 |
APW7335 | SOP-8P | Buck | CM | 1 | 3 | 4.5 | 24 | 340 | 0.8 | 110 | 110 | 1900 |
APW7336 | TDFN3x3-10 | Buck | CM | 1 | 2 | 4.5 | 24 | 340 | 0.8 | 110 | 110 | 1900 |
APW7337 | TDFN3x3-10 | Buck | CM | 1 | 3 | 4.5 | 24 | 340 | 0.8 | 110 | 110 | 1900 |
APW8713 | TQFN4x4-23 | Buck | COT | 1 | 6 | 2.7 | 28 | 100~1000 | 0.8 | 30 | 9 | 750 |
APW8802 | TQFN5x6-28 | Buck | COT | 1 | 8 | 3 | 25 | 500 | 0.75 | 12 | 12 | 400 |
APW8804 | TDFN3x3-10 | Buck | CM | 1 | 3 | 2.6 | 6 | 1000 | 0.6 | 65 | 55 | 460 |
APW8805 | TDFN3x3-10 | Buck | CM | 1 | 3 | 2.6 | 6 | 1000 | 0.6 | 75 | 55 | 460 |
APW8807 | TQFN3x3-16 | Buck | COT | 1 | 8 | 6 | 28 | 500 | 0.6 | 24 | 14 | 80 |
APW8824 | TSOT-23-6 | Buck | CM | 1 | 1 | 2.7 | 5.5 | 1500 | 0.6 | 280 | 250 | 25 |
APW8835 | TDFN3x3-10 | Buck | CM | 1 | 3 | 4.5 | 24 | 600 | 0.8 | 70 | 70 | 400 |
APW7414 | TSOT-23-8A | Buck | CM | 1 | 2 | 4.5 | 24 | 500 | 0.788 | 150 | 70 | 1000 |
APW7319 | TSOT-23-8A | Buck | CM | 1 | 2.5 | 4.5 | 24 | 500 | 0.807 | 140 | 60 | 1000 |
|
