双调节器输出低压差2.5V到5.5V输入电压300毫安输出电流CXLD64150逻辑控制关机模式超温保护短路电流限制和电流限制保护 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
目录7.相关产品 产品概述 返回TOP The CXLD64150 is a dual channel low dropout linear regulator, which operates from 2.5V to 5.5V input voltage and delivers up to 300mA output current at each channel. Typical dropout voltage is only 240mV at 300mA. The CXLD64150 with low quiescent current, high PSRR, and low noise is ideal for battery powered system appliances. Other features include logic-controlled shutdown mode, over-temperature protection, short-circuit current-limit, and current-limit protection to ensure specified output current. The CXLD64150 is available in the TSOT-23-6A and TDFN 1.6x1.6-6 packages.产品特点 返回TOP · Dual Regulator Outputs · Low Dropout Voltage: Typical 240mV at 300mA · Wide Input Voltage Range: 2.5V to 5.5V · Low Quiescent Current: Typical 58mA · High PSRR: 70dB at 1kHz · Low Shutdown Current:<1mA · Shutdown Function · Output Current-Limit Protection · Short-Circuit Current-Limit Protection · Over-Temperature Protection · Lead Free and Green Devices Available (RoHS Compliant) 应用范围 返回TOP · Mobile Phone · GPS Navigation · Blue Tooth Headset 技术规格书（产品PDF) 返回TOP 需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！ 产品封装图 返回TOP

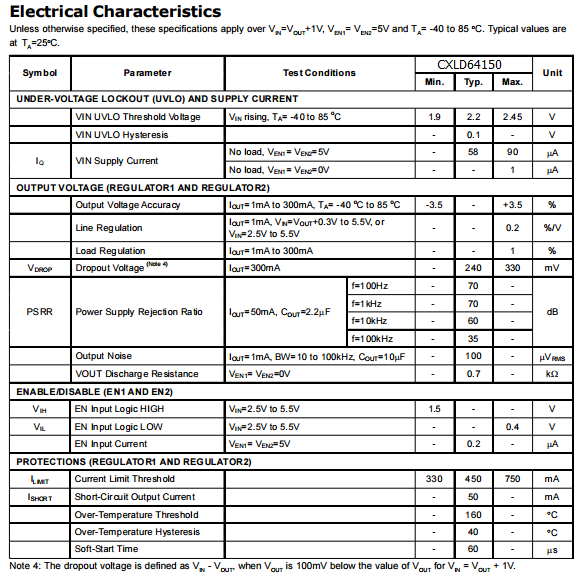

电路原理图 返回TOP
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Products > Linear Regulator > Daul Output LDO Regulator |
|||||||||||||
|
Part_No |
Package |
Input Voltage (V) |
Quies. Curren -tu(uA) |
Fixed Output Voltage 1(V) |
Fixed Output Voltage 2(V) |
Output Current 1(max) A |
Output Current 2 max A |
Dropout Voltage 1(V) |
Dropout Voltage 2(V) |
EN |
High PSRR |
Low Noise |
|
|
min |
max |
||||||||||||
|
SOP-8 |
4.75 |
8 |
10000 |
3.3 |
2.5 |
0.5 |
0.3 |
1.25 |
1.2 |
N |
N |
N |
|
|
SOP-8 |
4.2 |
6 |
100 |
3.3 |
2.5 |
0.5 |
0.5 |
0.5 |
0.6 |
N |
N |
N |
|
|
SOP-8/p |
4.2 |
6 |
100 |
3.3 |
1.8 |
0.5 |
0.3 |
0.6 |
0.9 |
N |
N |
N |
|
|
SOP-8/p |
4.15 |
6 |
130 |
3.3 |
2.5 |
0.5 |
0.5 |
0.55 |
0.63 |
Y |
N |
N |
|
|
SOT26/TSOT26 TDFN1.6x1.6-6 |
2.5 |
5.5 |
68 |
1.2-3.3 |
1.2-3.3 |
0.3 |
0.3 |
0.27 |
0.27 |
Y |
Y |
Y |
|
|
TSOT236A TDFN1.6x1.6-6 |
2.5 |
5.5 |
58 |
1.2-3.3 |
1.2-3.3 |
0.3 |
0.3 |
0.24 |
0.24 |
Y |
Y |
Y |
|
|
SOP-8/p |
3.95 |
6 |
110 |
3.3 |
3.3 |
0.3 |
0.3 |
0.35 |
0.35 |
Y |
N |
N |
|
|
SOP-8/p |
4.15 |
6 |
110 |
3.3 |
3.3 |
0.5 |
0.5 |
0.5 |
0.5 |
Y |
N |
N |
|
|
SOP-8/p |
4.1 |
6 |
110 |
3.3 |
2.8 |
0.5 |
0.5 |
0.45 |
0.5 |
Y |
N |
N |
|
|
TDFN1.5x1.5-6 |
2 |
5.5 |
58 |
1.2~3.3 |
1.2~3.3 |
0.3 |
0.3 |
0.24 |
0.24 |
Y |
Y |
Y |
|
|
TDFN1.6x1.6-6 |
2 |
5.5 |
58 |
1.2~3.3 |
1.2~3.3 |
0.3 |
0.3 |
0.24 |
0.24 |
Y |
Y |
Y |
|
