CXLD64242超低噪声高效CMOS线性稳压器高输出精度极低压差低静态电流和快速启动等特性TTL逻辑兼容的使能控制引脚 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
目录7.相关产品 产品概述 返回TOP CXLD64242是一款为超低噪声优化设计的高效CMOS线性稳压器，它还具有高输出精度、极低压差、低静态电流和快速启动等特性。CXLD64242输出很低的噪声电压，应用于需要干净电压源的RF电路是非常理想的，一个旁路噪声的引脚可以用来大大地降低输出噪声。 这款器件为手持式和电池供电的设备特别设计，它提供了与TTL逻辑兼容的使能控制引脚，当使能关断时，功耗下降至几乎为零。CXLD64242采用5引脚SC-70封装，它可以在使用低ESR的陶瓷电容时正常工作，大大节省了PCB板空间，这对手持式无线设备是非常重要的。CXLD64242能提供很宽范围的输出电压。关键特性还包括电流限制、过温关断保护和快速瞬态响应。The CXLD64242 is an efficient, CMOS voltage regulator optimized for ultra-low-noise applications. It offers high output accuracy, extremely low dropout voltage low ground current and fast start-up time. The CXLD64242 provides a very low noise output, ideal for RF applications where a clean voltage source is required. A noise bypass pin is also available for further reduction of output noise. Designed specifically for handheld and batterypowered devices, the CXLD64242 provides a TTL-logic-compatible enable pin. When disabled, power consumption drops nearly to zero. The CXLD64242 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in handheld wireless devices. Available in the SC-70 and SOT23-5 package, the CXLD64242 offers a wide range of output voltages. Key features include current limit, thermal shutdown and faster transient response.产品特点 返回TOP • 节省空间的5引脚SC-70封装 • 2.5V至5.5V输入电压范围 • 50μVrms输出噪声 • 300mA负载时250mV低压差 • 在1kHz时，达到75dB的PSRR • 70μA低地电流 • 能提供300mA输出电流 • 稳定工作于1μF陶瓷电容 • 优异的负载和电源瞬态响应 • 热关断和电流限制保护 • 输出电压：1.5V、1.8V、2.5V、2.8V、2.85V、2.9V、3.0V、3.3V 和可调输出电压 • 符合RoHS规范及Pb-Free z Space-Saving 5-pin SC-70 Package z 2.5V to 6V Input Voltage Range z 50μV(rms) Output Noise z 250mV Dropout @ 300mA z 75dB PSRR at 1kHz z Low 70μA Ground Current z Up to 300mA Output Current z Stability with 1μF Ceramic Output Capacitors z Excellent Load/Line Transient z Thermal Shutdown and Current Limit Protection z Available in 1.2V,1.3V,1.5V,1.8V,1.85V, 2.5V,2.8V,2.85V, 2.9V,3.0V,3.3V,3.5V,4.8V and Adjustable Voltages z RoHS Compliant and 100% Lead (Pb)-Free 应用范围 返回TOP • 蜂窝电话 • 蓝牙便携式设备 • PDA、掌上型电脑 • 个人消费电子 z Cellular Phones z Bluetooth Portable Radios and Accessories z PDA and Palmtop Computers z Consumer/Personal Electronics 技术规格书（产品PDF) 返回TOP 需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！ 产品封装图 返回TOP

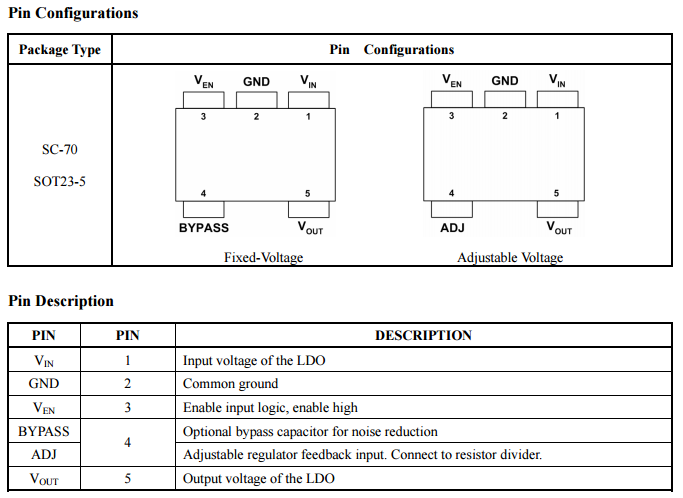

电路原理图 返回TOP
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
低漏失线性稳压器 |
|||||||||
|
Part Number |
remark |
Iout (mA) |
Vin (V) |
Vout (V) |
Dropout (mV) |
IQ (A) |
PSRR (dB) |
POR / Fault / Error |
Package |
|
150mA Low-Noise LDO in SOT23-5 |
150 |
2.5 ~ 5.5 |
1.2~4.8 |
140 |
70μA |
75 |
No |
SOT23-5 |
|
|
150mA Low-Noise LDO in SC-82 Without A Bypass Capacitor |
150 |
2.5~5.5 |
1.2~3.6 |
90 |
30uA |
70 |
NO |
SC-82 |
|
|
Dual,Low-Noise, High-PSRR, 150mA LDO without Bypass Capacitor |
150/150 |
2.5~5.5 |
1.2~3.6 |
190 |
50μA |
70 |
No |
TDFN-6,TSOT23-6 |
|
|
300mA High PSRR Low-Noise LDO |
300 |
2.5~5.5 |
1.2~4.8 |
250 |
70μA |
75 |
No |
SC-70,SOT23-5 |
|
|
300mA Low-Noise Low-Dropout Linear Regulator |
300 |
2.5~5.5 |
1.2~3.3 |
150 |
84μA |
65 |
No |
SOT23-5 |
|
|
300mA Low Dropout Linear Regulator |
300 |
2.5~5.5 |
1.2~3.5 |
170 |
90μA |
- |
No |
SOT23-3 SOT-89 |
|
|
A300mA Low-Noise LDO Without Bypass Capacitor |
300 |
2.5~5.5 |
1.2~3.6 |
200 |
30μA |
70 |
No |
SOT23-5 |
|
|
Dual, Low-Noise, High-PSRR, 300mA LDO without Bypass Capacitor |
300/300 |
2.5~5.5 |
1.2~3.6 |
380 |
50μA |
70 |
No |
TDFN-6,TSOT23-6,SOP-8(EP) |
|
|
Low-Noise, High-PSRR, 600mA LDO with PGOOD Indication |
600 |
2.5~5.5 |
0.8~5 |
360 |
80μA |
68 |
Yes |
TDFN-6 |
|
|
600mA High PSRR Low Dropout Linear Regulator |
600 |
2.5~5.5 |
0.8~5 |
300 |
120μA |
70 |
No |
SOT23-5 |
|
|
1A Ultra Low-Dropout Linear Regulator |
1000 |
2.5~5.5 |
1.5~3.3 |
300 |
300μA |
60 |
Yes |
SOT-223,SOP-8,SOT-89 |
|
|
2A Ultra Low-Dropout Linear Regulator |
2000 |
2.5~6 |
1.5~3.3 |
600 |
1mA |
56 |
Yes |
TO220,TO263,SOP-8 (EP) |
|
|
2A Low Dropout Linear Regulator with Programmable Soft-Start |
2000 |
2.7~5.5 |
0.8~3.3 |
165 |
0.8mA |
60 |
Yes |
SOP-8 |
|
|
600mA High PSRR Low Dropout Linear Regulator |
600 |
2.5~5.5 |
0.8~3.6 |
300 |
120μA |
70 |
No |
SOT23-5 |
|
