CXLD64324 CXLD64325输入电压8.5V正电压输出三端稳压器在输入/输出电压差很小的情况下也能提供高电流CMOS和激光微调技术低功耗高精度的加工 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

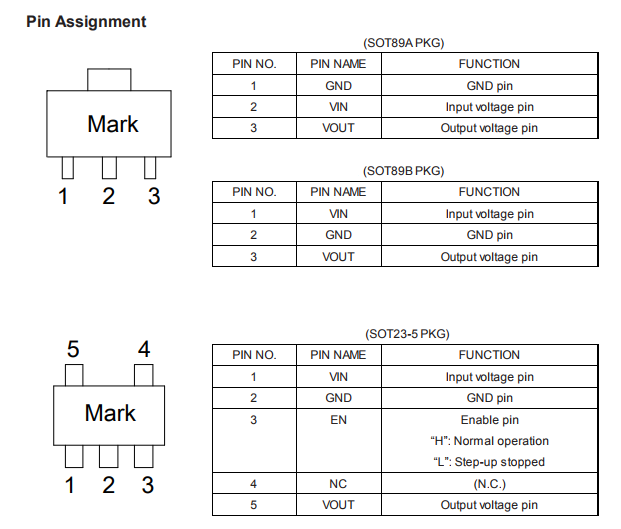

目录7.相关产品 产品概述 返回TOP The CXLD64324 CXLD64325 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The CXLD64324 CXLD64325 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to a load variations have improved in comparison to the existing series.产品特点 返回TOP Low voltage drop: 0.06V@100mA High input voltage: 8.5V Low temperature coefficient Low Quiescent Current: 25uA at 5.0V Output voltage accuracy: tolerance ±2% SOT23-5 and SOT89 packages 应用范围 返回TOP Battery-powered equipment Hand-Hold Equipment GRS Receivers Wireless LAN 技术规格书（产品PDF) 返回TOP 需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！ 产品封装图 返回TOP
电路原理图 返回TOP
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
CMOS电源稳压器LDO |
|||||||||
|
产品系列名 |
输出电 流Max （mA） |
输入电 压Max (V) |
输入耐 压Max (V) |
输出电 压范围 (V) |
精度 (±%) |
静态 电流 （uA） |
压差 |
特征 |
封装形式 |
|
250 |
12 |
15 |
1.5~5 |
±2% |
2 |
0.17V/100mA@VOUT=3.3V |
低消耗电流 |
SOT23-3/SOT23-5/SOT89 |
|
|
150 |
15 |
18 |
1.5~5 |
±2% |
2 |
0.26V/100mA@VOUT=3.3V |
低消耗电流 |
SOT23-3/SOT89 |
|
|
300 |
6 |
8 |
1.2~5 |
±2% |
1.5 |
0.17V/100mA@VOUT=3.3V |
8V耐压1.5uA静态电流 |
SOT23/SOT23-3/SOT89 |
|
|
300 |
6 |
8 |
1.2~5 |
±2% |
3 |
0.17V/100mA@VOUT=3.3V |
8V耐压3uA静态电流 |
SOT23/SOT23-3/SOT89 |
|
|
400 |
6 |
7 |
1.2~5 |
±2% |
30 |
0.15V/100mA@VOUT=3.3V |
超高速低噪声高纹波抑制比 |
SOT23/SOT23-3/SOT89 |
|
|
400 |
5 |
5.5 |
1.2~5 |
±2% |
30 |
0.17V/200mA@VOUT=3.3V |
超高速低噪声高纹波抑制比 |
SC70-5/SOT23-3 |
|
|
300 |
7 |
8 |
1.0~5 |
±2% |
30 |
0.15V/100mA@VOUT=3.0V |
超高速低噪声高纹波抑制比 |
SOT23-5/DFN1*1-4/DNF2*2-6 |
|
|
350 |
7 |
8 |
1.0~5 |
±2% |
30 |
0.15V/100mA@VOUT=3.0V |
超高速低噪声高纹波抑制比 |
SOT23-5/DFN1*1-4/DNF2*2-6 |
|
|
300 |
7 |
8 |
ADJ |
±2% |
30 |
0.30V/100mA@VOUT=3.0V |
超高速低噪声高纹波抑制比 |
SOT23-5/SOT23-6 |
|
|
300 |
8 |
10 |
1.2~5 |
±2% |
30 |
0.18V/100mA@VOUT=3.3V |
超高速低噪声高纹波抑制比 |
SOT23/SOT23-3/SOT89 |
|
|
300 |
15 |
18 |
1.6~5 |
±2% |
10 |
0.3V/100mA@VOUT=5.0V |
18V耐压带使能300mA |
SOT23/SOT23-3/SOT89 |
|
|
1000 |
8 |
10 |
0.6~5 |
±2% |
25 |
0.06V/100mA@VOUT=5.0V |
8.5V耐压1A电流能力高纹波 |
SOT89/SOT23-5 |
|
|
1000 |
8 |
10 |
0.6~5 |
±2% |
2 |
0.06V/100mA@VOUT=5.0V |
8.5V耐压1A电流能力低功耗 |
SOT89/SOT23-5 |
|
|
350 |
10 |
12 |
1.5~5 |
±2% |
2 |
0.17V/100mA@VOUT=3.3V |
SOT89 |
||
