The CXSD62389 is a monolithic step-down switch mode regulator with a built in internal power MOSFET. It achieves 3A continuous output current over a wide input supply range with excellent load and line regulation. The wide 4.5V to 28V input range accommodates a variety of step-down applications, including those in an automotive input environment. A 180μA operational quiescent current allows use in battery-powered applications. High power conversion efficiency over a wide load range is achieved by scaling down the switching frequency at light load condition to reduce the switching and gate driving losses. The frequency foldback helps prevent inductor current runaway during startup and thermal shutdown provides reliable, fault tolerant operation. By switching at 1.5MHz, the CXSD62389 is able to prevent EMI (ELECTROMAGNETIC Interference) noise problems, such as those found in AM radio and ADSL applications. The CXSD62389 requires a minimum number of readily available standard external components. It is available in a DIP-8, SOP-8 (FD) and TDFN3X3-8 package.

   产品特点 返回TOP2nG嘉泰姆


„ 3A Output Current 2nG嘉泰姆

„ Wide 4.5V to 28V Operating Input Range 2nG嘉泰姆

„ Programmable Switching Frequency from 100kHz to 1.5MHz 2nG嘉泰姆

„ Internal Soft-Start 2nG嘉泰姆

„ Cycle-by-Cycle Over Current Protection 2nG嘉泰姆

„ Ceramic Capacitor Stable 2nG嘉泰姆

„ High-Efficiency Pulse Skipping Mode for Light Load 2nG嘉泰姆

„ Available in DIP-8, SOP-8 (FD) and TDFN3X3-8 Package2nG嘉泰姆

   应用范围 返回TOP2nG嘉泰姆


„ High Voltage Power Conversion 2nG嘉泰姆

„ Automotive Systems 2nG嘉泰姆

„ Industrial Power Systems 2nG嘉泰姆

„ Distributed Power Systems 2nG嘉泰姆

„ Battery Powered Systems2nG嘉泰姆

   技术规格书(产品PDF) 返回TOP 2nG嘉泰姆


     需要详细的PDF规格书请扫一扫微信联系我们,还可以获得免费样品以及技术支持2nG嘉泰姆

 QQ截图20160419174301.jpg2nG嘉泰姆

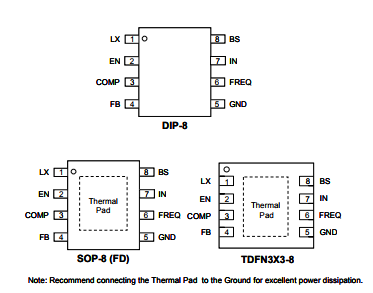

产品封装图 返回TOP2nG嘉泰姆
