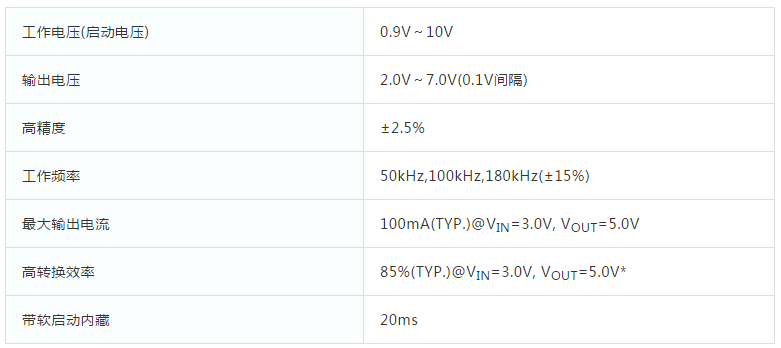

目录7.相关产品 产品概述 返回TOP CXSU63144系列是一组PWM控制的升压DC/DC转换器。CXSU63144系列采用CMOS工艺和激光微调技术从而达到了低功耗和高精度。 芯片自带的相位补偿和缓启动电路使得它有很好的瞬态响应和性能。输出电压可以在2.0V到7.0V范围内以0.1V间隔选择(±2.5%)。振荡频率也可以在三个频率50,100,和180kHz (±15%)中选择。每一种内置开关管型仅使用三种外部器件就可以组成一个升压电路：电感,二极管和电容。5脚封装可以提供降低功耗的CE功能。The CXSU63144/CXSU63145 series is a group of PWM controlled and PWM/PFM controlled step-up DC/DC converters. The built-in 1.4Ω switching transistor type enables a step-up circuit to be configured using only three components, a coil, a diode, and a capacitor. Output voltage can be selectable in the range from 2.0V to 7.0V in increments of 0.01V (accuracy:±2.5%). Oscillation frequency is also selectable from 50kHz, 100kHz, and 180kHz (accuracy:±15%) for the CXSU63144 and the CXSU63145 series. Soft-start time is internally set and offers protection against in-rush currents when the power is switched on and prevents voltage overshoot. Packages with CE (chip enable) pin are also available which can reduce the IC power consumption during during stand-by mode. The CXSU63144 series is the standard PWM controlled products. The control of the CXSU63145 series switches from PWM to PFM control during light loads when automatically switching is selected and the series is highly efficient from light loads to large output currents. 产品特点 返回TOP ●Smart phones / Mobile phones ●Note PCs / Tablet PCs ●Digital still cameras / Camcorders ●Mobile devices / terminals 应用范围 返回TOP
技术规格书（产品PDF) 返回TOP 需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！ 产品封装图 返回TOP
电路原理图 返回TOP
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
升压型DC/DC转换器 |
|||||||||||||||
|
产品名称 |
特点 |
封装 |
控制 |
FET |
Synchr onous |
VIN MIN |
VIN MAX |
VOUT MIN |
VOUT MAX |
IIN |
FB/VOUT 电压精度 |
振荡 频率 kHz |
限制 电流 mA |
消耗 电流 μA |
限定 电流 |
|
(V) |
(V) |
(V) |
(V) |
(mA) |
自动 闩锁 |
||||||||||
|
PWM/PFM |
SOT-25 |
PWM |
None |
No |
0.9 |
10 |
1.5 |
6.5 |
- |
±2.5% |
100 |
20 |
|||
|
PWM/PFM |
SOT-25 |
PWM/PFM |
None |
No |
0.9 |
10 |
1.5 |
6.5 |
- |
±2.5% |
100 |
20 |
|||
|
PWM/PFM |
SOT89/SOT89-5 USP-6B |
PWM |
Nch |
No |
0.9 |
10 |
2 |
7 |
- |
±2.5% |
50 |
8.2 |
|||
|
PWM/PFM |
SOT89/SOT89-5 USP-6B |
PWM/PFM |
Nch |
No |
0.9 |
10 |
2 |
7 |
- |
±2.5% |
50 |
8.2 |
|||
|
PWM |
MSOP-8A |
None |
No |
2.5 |
20 |
2.2 |
30 |
- |
100~600 |
90 |
Auto |
||||
|
PWM/PFM |
SOT25/USP6B |
PWM |
None |
No |
0.9 |
10 |
1.5 |
30 |
- |
±2.0% |
100 |
20 |
|||
|
PWM/PFM |
SOT25/USP6B |
PWM/PFM |
None |
No |
0.9 |
10 |
1.5 |
30 |
- |
±2.0% |
100 |
20 |
|||
|
PWM/PFM |
SOT25/USP6B |
PWM/PFM 外部转换 |
None |
No |
0.9 |
10 |
1.5 |
30 |
- |
±2.0% |
100 |
20 |
|||
|
PWM/PFM |
SOT25/USP6B |
PWM |
None |
No |
0.9 |
10 |
1.5 |
30 |
- |
±2.0% |
100 |
16 |
|||
|
PWM/PFM |
SOT25/USP6B |
PWM/PFM |
None |
No |
0.9 |
10 |
1.5 |
30 |
- |
±2.0% |
100 |
16 |
|||
|
PFM |
SOT25/USP6C |
PFM |
Nch |
No |
0.9 |
10 |
1.5 |
7 |
- |
±2.5% |
100 |
1.9 |
|||
|
PFM |
SOT23/SOT25 SOT89/USP6C |
PFM |
Nch |
No |
0.9 |
10 |
1.5 |
7 |
- |
±2.5% |
100 |
1.9 |
|||
|
背光LED驱动 |
SOT25/USP6B |
PWM |
Nch |
No |
2.5 |
6 |
17.5 |
- |
±0.5% |
1000 |
325 |
50 |
|||
|
PWM |
SOT25/USP6C |
PWM |
Nch |
No |
2.5 |
6 |
19.5 |
- |
±2.0% |
1000 |
400 |
55 |
|||
|
PWM/PFM |
SOT25/USP6B |
PWM |
None |
No |
0.9 |
6 |
1.5 |
30 |
- |
±2.0% |
100 |
13 |
|||
|
PWM/PFM |
SOT25/USP6C |
PWM/PFM |
None |
No |
0.9 |
6 |
1.5 |
30 |
- |
±2.0% |
100 |
13 |
|||
|
PWM/PFM |
SOT25/USP6B |
PWM/PFM 外部转换 |
None |
No |
0.9 |
6 |
1.5 |
30 |
- |
±2.0% |
100 |
13 |
|||
|
内置1A驱动三极管 |
MSOP10/USP10B |
PWM/PFM 外部转换 |
Nch |
Yes |
0.8 |
6 |
1.8 |
5.3 |
1000 |
±10mV |
1200 |
1500 |
30 |
Auto |
|
|
内置1A驱动三极管 |
USP10B |
PWM/PFM 外部转换 |
Nch |
Yes |
0.8 |
6 |
1.8 |
5.3 |
1000 |
±10mV |
1200 |
1500 |
29 |
Auto |
|
|
附带负载切断功能 |
USP10B |
PWM,PWM/PFM |
Nch |
Yes |
0.65 |
5.5 |
1.8 |
5 |
1000 |
±10mV |
1200 |
1500 |
36 |
Auto |
|
|
白色LED驱动升压 |
SOT25 |
PWM |
PWM |
No |
2.5 |
6 |
2.5 |
17.5 |
- |
±5.0% |
1000 |
360 |
60 |
||
|
内置1A驱动三极管 |
USP10B |
PWM/PFM |
Nch |
Yes |
0.65 |
5.5 |
1.8 |
5 |
1000 |
±2.0% |
1200 |
1590 |
39 |
Latch |
|
|
内置1A驱动三极管 |
USP10B |
PWM/PFM |
Nch |
Yes |
0.65 |
5.5 |
1.8 |
5 |
1000 |
±2.0% |
1200 |
1590 |
39 |
Auto |
|
|
PFM控制、同步整流 |
SOT25 |
PFM |
Nch |
Yes |
0.9 |
5.5 |
1.8 |
5 |
- |
±2.0% |
1200 |
350 |
6.3 |
Yes |
|
|
附带负载切断功能 |
SOT25 USP6C WLP6-01 |
PWM |
Nch |
Yes |
0.65 |
6 |
1.8 |
5.5 |
800 |
±2.0% |
1200 |
1300 |
17,26 |
自动 闩锁 |
|
|
附带负载切断功能 |
SOT25/USP6C USPN4B02/WLP6-01 |
PWM/PFM |
Nch |
Yes |
0.65 |
6 |
1.8 |
5.5 |
800 |
±2.0% |
1200 |
1300 |
17,26 |
自动 闩锁 |
|
