   产品概述 返回TOP6Fj嘉泰姆

The CXHA3145 series is an integrated Hall Effect latched sensor designed for electronic commutation of brush-less DC motor applications. The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifiers the Hall voltage, and a Sch-mitt to provide switching hysteresis for noise rejection, and open-collector output. An internal band gap regulator is used to provide temperature compensated supply voltage for internal circuits and allows a wide operating supply range. In the absence of a magnetic field, the output pin is “OFF” (High). A south pole of sufficient strength will turn the output “ON”(Low). While the magnetic flux density (B) is larger than threshold Bop, the output is “ON”. If B removed toward Brp, the output pin is latched “ON”state prior to B<Brp.When B<Brp, the output pin goes into “OFF”state

   产品特点 返回TOP6Fj嘉泰姆

 Hall effect Switch 6Fj嘉泰姆

 Wide operating voltage range :3.5V~38V 6Fj嘉泰姆

 Open Collector Pre-Driver 6Fj嘉泰姆

 Maximum output sink current: 50mA 6Fj嘉泰姆

 Operating Temperature:-40℃~+125℃ 6Fj嘉泰姆

 Package：SOT-23 TO92S6Fj嘉泰姆

   应用范围 返回TOP6Fj嘉泰姆

 Rotor Position Sensing 6Fj嘉泰姆

 Current Switch 6Fj嘉泰姆

 Brush-less DC Motor 6Fj嘉泰姆

 Revolution counting 6Fj嘉泰姆

 Encoder 6Fj嘉泰姆

 RPM Detection 6Fj嘉泰姆

 Brush-less DC Fan 6Fj嘉泰姆

 Speed measurement6Fj嘉泰姆

   技术规格书（产品PDF) 返回TOP 6Fj嘉泰姆

     需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！6Fj嘉泰姆

 6Fj嘉泰姆

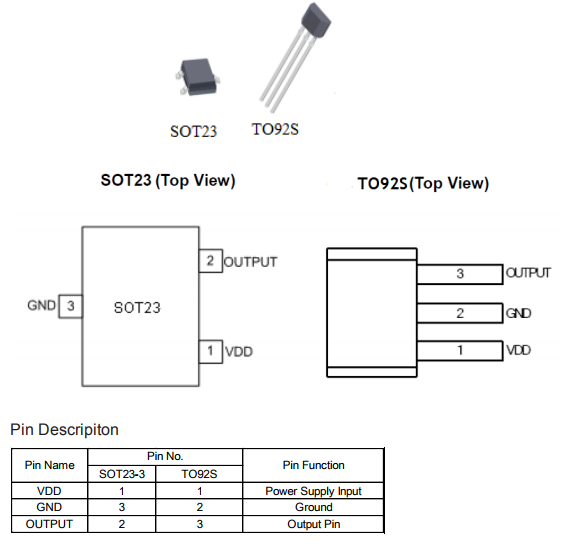

产品封装图 返回TOP6Fj嘉泰姆
