CXHA3186是完全集成的电阻可编程温度开关，其阈值由外部电阻设置。它们只需要一个外部电阻器就可以在0°C到+125°C的温度范围内设置温度阈值。CXHA3186提供开漏、有源低输出。这些开关在+2.7V至+5.5V单电源下工作，同时提供±0.5°C（典型值）或±3.5°C（最大值）或±3°C（60°C至+100°C）的温度阈值精度。它们通常消耗33μA的电源电流。磁滞可在10°C或30°C下选择引脚。CXHA3186有5针SOT-23和TDFN2X2-8封装。
±0.5°C典型阈值精度
？3.5°C（最大）阈值精度（0°C至+125°C）
？3°C阈值精度（60°C至+100°C）
·1%外部电阻设置的温度阈值
·低33μA电源电流
打开漏极激活低输出级
·保证复位有效至VCC=0.8V
·引脚可选择10°C或30°C滞后
-
[ CXHA3186 ]
目录
7.相关产品
产品概述 返回TOP
The CXHA3186 are fully integrated, resistor programmable temperature switches with thresholds set by an external resistor. They require only one external resistor to set the temperature threshold within a wide 0°C to +125°C temperature range. The CXHA3186 provides an open-drain, active low output. These switches operate with a +2.7V to +5.5V single supply while providing a temperature threshold accuracy of ±0.5°C (TYP) or ±3.5°C (MAX) or ±3°C (60°C to +100°C). They typically consume 33μA supply current. Hysteresis is pin selectable to 10°C or 30°C. The CXHA3186 are available in 5-pin SOT-23 and TDFN2X2-8 packages.
产品特点 返回TOP
„ ±0.5°C Typical Threshold Accuracy
„ ±3.5°C (max) Threshold Accuracy(0°C to +125°C)
„ ±3°C Threshold Accuracy(60°C to +100°C)
„ Temperature Threshold Set by a 1% External Resistor
„ Low 33μA Supply Current
„ Open-Drain Active Low Output Stage
„ Guaranteed Reset Valid to VCC = 0.8V
„ Pin-Selectable 10°C or 30°C Hysteresis
„ SOT-23-5 and TDFN2X2-8 Packages
应用范围 返回TOP
„ μP Temperature Monitoring in High-Speed
„ Computers
„ Temperature Control
„ Temperature Alarms
„ Fan Control
„ Automotive
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

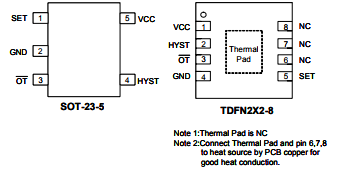

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
Temperature Transducer |
|||||||||
|
Part NO. |
VCC(V) min. |
VCC(V) max. |
Sensor Gain |
VOUT (V) |
Sensor Range(°C) |
Accuracy (°C) |
Isupply (μA) |
Note |
Package |
|
2 |
5.5 |
-11.6 |
2.5~0.3 |
-55~130 |
±1 |
18 |
Negative temperature coefficient output |
TO126F/SC70-5(SOT353) |
|
|
Digital Interface Temperature Sensor |
|||||||||
|
Part NO. |
VCC(V) min. |
VCC(V) max. |
Remote |
Local |
Interface |
Slave Address |
Accuracy (°C) |
Note |
Package |
|
3 |
5.5 |
N |
1 |
SMBus |
1001XXX |
±2 |
8 slave addresses 9 bits resolution |
SOP8/MSOP8/TDFN3X3-8 |
|
|
3 |
5.5 |
N |
1 |
SMBus |
1001XXX |
±1 |
8 slave addresses 11 bits resolution |
SOP8/MSOP8/TDFN3X3-8 /TDFN3X2-8 |
|
|
3 |
3.6 |
N |
1 |
SMBus |
1001000 |
±1 |
-10°C to 80°C±1°C(max) |
SOT23-5 |
|
|
3 |
5.5 |
1 |
1 |
SMBus |
1001100 |
±1 |
Support transitor mode |
SOP8/MSOP8 |
|
|
3 |
5.5 |
1 |
1 |
SMBus |
1001100 |
±1 |
Remote up to 160°C |
SOP8/MSOP8/TDFN3X3-8 |
|
|
3 |
5.5 |
N |
1 |
SMBus |
1001100 |
±3 |
Local temperature sensor |
MSOP8 |
|
|
3 |
5.5 |
2 |
1 |
SMBus |
1001100 |
±1 |
Support transistor mode |
MSOP10 |
|
|
3 |
5.5 |
1 |
1 |
SMBus |
1001100 |
±1 |
SMBus inputs are built-in switch to prevent reverse leakage |
SOP8/MSOP8/TDFN3X3-8 |
|
|
3 |
5.5 |
1 |
1 |
SMBus |
1001100 |
±1 |
Griffin |
SOP8 MSOP8 |
|
|
Thermal Switch |
|||||||||
|
Part NO. |
VCC(V) min. |
VCC(V) max. |
Sensor |
Hysterisis VCCGND |
Output Type |
Accuracy (°C) |
Isupply (μA) |
Note |
Package |
|
4 |
5.5 |
-- |
10 or 30 |
Open Drain |
±3.5 |
33 |
N/A |
SOT23-5 |
|
|
3 |
5.5 |
Remote |
10 or 2 |
Open Drain |
±3 |
-- |
OT is set by SET0 and SET1, Thermal diode needed |
SOP8/MSOP8 |
|
|
2.7 |
5.5 |
Local |
10 or 30 |
Open Drain |
±3.5 |
33 |
OT is set by an external resistor |
SOT23-5/TDFN2X2-8 |
|
|
2.7 |
5.5 |
Local |
10 or 2 |
Open Drain |
±3.5 |
33 |
OT is set by an external resistor |
TDFN2X2-8/ADFN1.5X1.5-6/SOT23-5/SOT23-6 |
|
|
2.7 |
5.5 |
Remote |
Set by Resistor |
Open Drain |
-- |
70 |
8 Remote SensorsThermistor is needed |
TQFN3X3-16 |
|
|
2.7 |
5.5 |
Remote |
Set by Resistor |
Open Drain |
-- |
42 |
2 Remote SensorsThermistor is needed |
SOT23-8/AQFN1.5X1.5-8 |
|
