CXES4270是一个用于外部N沟道MOSFET的高压侧配电控制器,允许+12V和+19V供电轨。错误的输入电压保护功能可保护错误的输入适配器插入。当输入电压超出目标输入电压范围时,集成电路关闭。内置的欠压保护监视输出电压是否存在短路情况。当输出电压低于车辆识别号电压的70%时,集成电路将关闭。过电流保护通过使用外部MOSFET的RDS(ON)上的电压降来监测输出电流。当输出电流达到触发点时,集成电路将被关闭。CXES4270在通电期间还提供短路保护。该设备监测DRV和VOUT电压,以进行短路检测。如果检测到短路情况,IC将关闭。其他功能,包括一个POK输出,它指示输出电压已准备就绪和逻辑控制关闭模式。
·用于外部N沟道MOSFET的高端驱动器
·欠压锁定(UVLO)
·错误的车辆识别号输入电压保护
·输出欠压保护(UVP)
·通电期间的短路保护(SCP)
·过电流保护(OCP)
·关闭功能
·电源正常(POK)功能
·提供无铅和绿色设备(符合RoHS)
-
[ CXES4270 ]"
目录
7.相关产品
产品概述 返回TOP
CXES4270 is a high-side power distribution controller for an external N-channel MOSFET, allow for +12V and +19V power-supply rails. The wrong input voltage protection function protects a wrong input adapter insertion. When input voltage is out of the target input voltage range, the IC is off.The built-in under-voltage protection monitors the output voltage for short-circuit conditions. When output voltage is less than 70% of VIN voltage, the IC will be shut down. The over-current protection monitors the output current by using the voltage drop across the external MOSFET’s RDS(ON) . When output current reaches the trip point, the IC will be shut down. The CXES4270 also provides a shortcircuit protection during power-up. The device monitors DRV and VOUT voltages for a short-circuit detection. If a short-circuit condition is detected, the IC will be shut down. Other features, including a POK output which indicates that the output voltage is ready and a logic-controlled shutdown mode.
产品特点 返回TOP
· High-Side Driver for an External N-Channel MOSFET
· Under-Voltage Lockout (UVLO)
· Wrong VIN Input Voltage Protection
· Output Under-Voltage Protection (UVP)
· Short-Circuit Protection During Power-Up (SCP)
· Over-Current Protection (OCP)
· Shutdown Function
· Power-Ok (POK) Function
· Lead Free and Green Devices Available (RoHS Compliant)
应用范围 返回TOP
· Desktop PCs

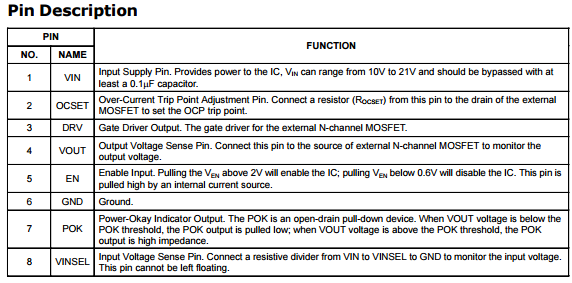

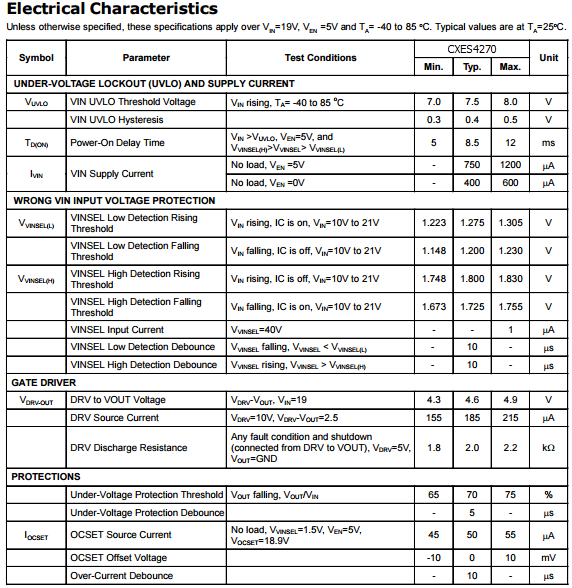

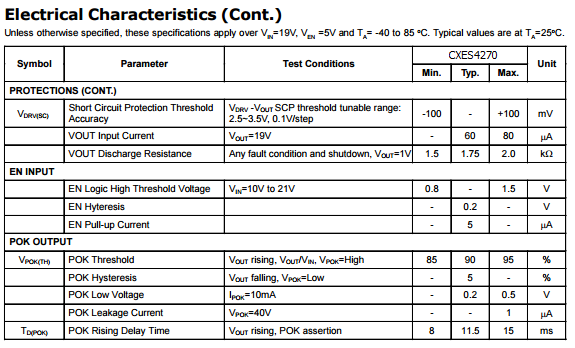

技术规格书(产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们,还可以获得免费样品以及技术支持!
产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
Products > Switch > Power Distribution Controller |
|||||||||||||||
Part_No |
Package |
No.of Channel |
External Power Switch Type |
Input Voltage (V) |
Quescint Current (uA) |
Wrong Input Voltage Protection |
Inpute Voltage UVLO |
SCP |
OCP (A) |
OVP |
UVP |
EN |
High/ Low EN |
POK |
|
min |
max |
||||||||||||||
SOP8 TDFN2x2-8 |
1 |
N-Channel MOSFET |
10 |
26 |
750 |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
H |
Y |
|
TDFN3x3-10 |
1 |
N-Channel MOSFET |
5 |
26 |
500 |
Y |
Y |
Y |
Y |
Y |
Y |
H |
Y |
||
TDFN3x3-10 |
1 |
N-channel MOSFET |
5 |
26 |
500 |
Y |
Y |
Y |
Y |
Y |
Y |
H |
Y |
