一,产品概述(General Description)    oLz嘉泰姆

      The CXSD6293 is a single-phase, constant-on-time, and  synchronousoLz嘉泰姆
PWM controller, which drives N-channel MOSFETs. An internal 0.5V temperature-compensated reference voltage with high accuracy is designed to meet theoLz嘉泰姆
requirement of low output voltage applications. The CXSD6293 steps downoLz嘉泰姆
high voltage to generate low-volt-age chipset or RAM supplies in notebookoLz嘉泰姆
computers.The PWM controller operates fixed 300kHz pseudo-con-oLz嘉泰姆
stant frequency PWM with an adaptive constant-on-time control. The deviceoLz嘉泰姆
provides excellent transient response and accurate DC voltage output in eitheroLz嘉泰姆
PFM or PWM Mode. In Pulse Frequency Mode (PFM), the CXSD6293 pro-oLz嘉泰姆
vides very high efficiency over light to heavy loads with loading-modulatedoLz嘉泰姆
switching frequencies. The device works in ultrasonic mode with PFM at nooLz嘉泰姆
load. The unique ultrasonic mode maintains the switching frequency aboveoLz嘉泰姆
20kHz, which eliminates noise in audio applications.oLz嘉泰姆
          The CXSD6293 is equipped with accurate over-current,outputoLz嘉泰姆
under-voltage, and output over-voltage protections.A Power-On-ResetoLz嘉泰姆
function monitors the voltage on VCC to prevent wrong operation duringoLz嘉泰姆
power-on. The CXSD6293 has a 1.5ms digital soft-start to ramp up theoLz嘉泰姆
output voltage to reduce the start-up current. A soft-stop function activelyoLz嘉泰姆
discharges the output capacitors with controlled reverse inductor current.oLz嘉泰姆
The CXSD6293 is available in TDFN3x3-10 packageoLz嘉泰姆
二.产品特点(Features)oLz嘉泰姆

1.)Operates from An Input Battery Voltage Range of +3V to +25VoLz嘉泰姆
      ±0.6% 0.5V Reference Over Line, Load Regulation, andoLz嘉泰姆
      Operating Temp. oLz嘉泰姆
2.)Drive Dual Low Cost N-Channel MOSFETsoLz嘉泰姆
    Adaptive Shoot-Through Protection oLz嘉泰姆
3.)Power-On-Reset Monitoring on VCC PinoLz嘉泰姆
4.)PFM Mode for Increasing Light Load EfficiencyoLz嘉泰姆
5.)Constant-On-Time Control SchemeoLz嘉泰姆
     Switching Frequency Compensation for PWM OperationoLz嘉泰姆
6.)300kHz Constant Switching FrequencyoLz嘉泰姆
7.)Integrated MOSFET Drivers and Bootstrap DiodeoLz嘉泰姆
8.)Internal Soft-Start and Soft-StopoLz嘉泰姆
9.)Power Good MonitoringoLz嘉泰姆
10.)70% Under-Voltage ProtectionoLz嘉泰姆
11.)125% Over-Voltage ProtectionoLz嘉泰姆
     Using Low-Side MOSFET’s RDS(ON)oLz嘉泰姆
12.)Over-Temperature ProtectionoLz嘉泰姆
13.)TDFN-10 3mmx3mm PackageoLz嘉泰姆
14.)Lead Free and Green Devices Available (RoHS Compliant)oLz嘉泰姆
三,应用范围 (Applications)oLz嘉泰姆

NotebookoLz嘉泰姆
Low Cost PCoLz嘉泰姆
Wide Input DC/DC RegulatorsoLz嘉泰姆
四.下载产品资料PDF文档 oLz嘉泰姆

需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！oLz嘉泰姆

 oLz嘉泰姆

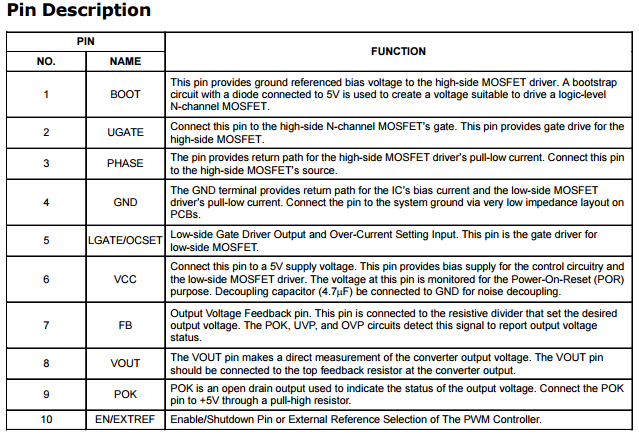

五,产品封装图 (Package)oLz嘉泰姆

oLz嘉泰姆
oLz嘉泰姆

六.电路原理图oLz嘉泰姆

oLz嘉泰姆
七,功能概述oLz嘉泰姆

Constant-On-Time PWM Controller with Input Feed-For-wardoLz嘉泰姆
The constant-on-time control architecture is a pseudo-fixed frequency with input voltage feed-forward. This ar-oLz嘉泰姆
chitecture relies on the output filter capacitor’s effective series resistance (ESR) to act as a current-sense resis-oLz嘉泰姆
tor so the output ripple voltage provides the PWM ramp signal. In PFM operation, the high-side switch on-time isoLz嘉泰姆
controlled by the on-time generator is determined solely by a one-shot whose pulse width is inversely propor-oLz嘉泰姆
tional to the input voltage and directly proportional to the output voltage. In PWM operation, the high-side switchoLz嘉泰姆
on-time is determined by a switching frequency control circuit in the on-time generator block.The switchingoLz嘉泰姆
frequency control circuit senses the switch-ing frequency of the high-side switch and keeps regulat-oLz嘉泰姆
ing it at a constant frequency in PWM mode. The design improves the frequency variation and is more outstand-oLz嘉泰姆
ing than a conventional constant-on-time controller, which has large switching frequency variation over inputoLz嘉泰姆

 voltage,output current, and temperature. Both in PFM and PWM,the on-time generator, which senses input oLz嘉泰姆

voltage on PHASE pin, provides very fast on-time response to input line transients.Another one-shot sets a oLz嘉泰姆

minimum off-time (typical:300ns). The on-time one-shot is triggered if the error com-parator is high, theoLz嘉泰姆

 low-side switch current is below the current-limit threshold, and the minimum off-time one-shot has oLz嘉泰姆

timed out. oLz嘉泰姆
Pulse-Frequency Modulation (PFM)oLz嘉泰姆
In PFM mode, an automatic switchover to pulse-frequency modulation (PFM) takes place at light loads. ThisoLz嘉泰姆
switchover is affected by a comparator that truncates the low-side switch on-time at the inductor current zerooLz嘉泰姆
crossing. This mechanism causes the threshold between PFM and PWM operation to coincide with the boundaryoLz嘉泰姆
between continuous and discontinuous inductor-current operation (also known as the critical conduction point).oLz嘉泰姆
The on-time of PFM is given by:oLz嘉泰姆
Ultrasonic ModeoLz嘉泰姆
The ultrasonic mode activates an unique PFM mode with a minimum switching frequency of 20kHz. The minimumoLz嘉泰姆
frequency 20kHz of ultrasonic mode eliminates audio-frequency interference in light load condition. It will transitoLz嘉泰姆
to unique PFM mode when output loading makes the frequency bigger than ultrasonic frequency.oLz嘉泰姆
In ultrasonic mode, the controller automatically transits to fixed-frequency PWM operation when the load reachesoLz嘉泰姆
the same critical conduction point (ILOAD(PFM to PWM)).When the controller detects that no switching has oc-oLz嘉泰姆
curred within about 40μs (Typical), an ultrasonic pulse will be occurred. The ultrasonic controller turns on theoLz嘉泰姆
low-side MOSFET firstly to reduce the output voltage. After feedback voltage drops below the internal referenceoLz嘉泰姆
voltage, the controller turns off the low-side MOSFET and triggers a constant-on-time. When the constant-on-oLz嘉泰姆

time has expired, the controller turns on the low-side MOSFET again until the inductor current is below the oLz嘉泰姆

zero-cross-ing threshold. The behavior is the same as PFM mode. oLz嘉泰姆
Power-On-Reset (POR)oLz嘉泰姆
A Power-On-Reset (POR) function is designed to prevent wrong logic controls when the VCC voltage is low. TheoLz嘉泰姆
POR function continually monitors the bias supply volt-age on the VCC pin if at least one of the enable pins is setoLz嘉泰姆
high. When the rising VCC voltage reaches the rising POR voltage threshold (4.2V, typical), the POR signal goesoLz嘉泰姆
high and the chip initiates soft-start operations. When this voltage drops lower than 4.0V (typical), the POR dis-oLz嘉泰姆
ables the chip.oLz嘉泰姆
