CXSU63128 CXSU63128D是一款高效的同步升压调节器，可将输入电压和输出电压分别转换为2.5V和5V。主开关采用NMOS，同步开关采用PMOS。它可以在关机模式下断开输出与输入的连接。。它集成了6A功率MOSFET，可输出5v2.5A的锂电池输入
-
"
目录
产品概述 返回TOP
CXSU63128/CXSU63128D is a high efficiency synchronous boost regulator that converts down to 2.5V input and 5V output voltage. It adopts NMOS for the main switch and PMOS for the synchronous switch. It can disconnect the output from input during the shutdown mode.. It integrates 6A power MOSFET and can output 5V 2.5A with Li-Battery input.产品特点 返回TOP
2.5V Minimum input voltage
Adjustable output voltage
6A peak current limit
Input under voltage lockout
600Khz fixed Switching Frequency
Load disconnect during shutdown
Integrated soft-start
Output over voltage protection
30mohm Power MOSFET
Thermal Shutdown
SOP8-PP Package
应用范围 返回TOP
Handheld Devices
Power Bank
All Single Cell Li or Dual Cell Battery Operated Products
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

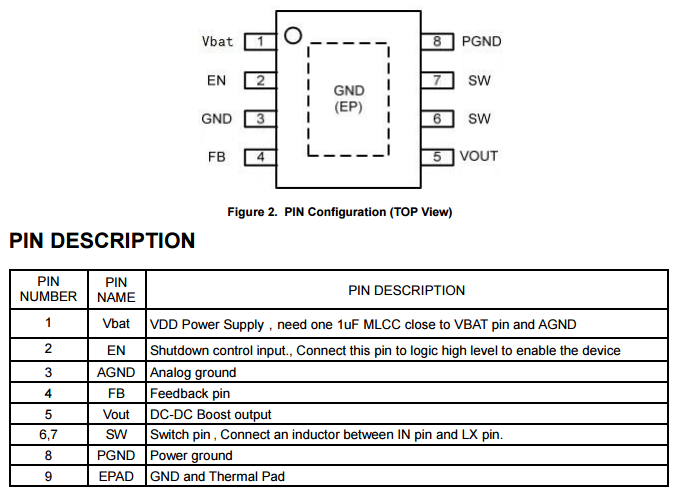

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品.....
|
DC/DC 升压转换器 |
||||||||
|
PN |
Ilim |
Vin |
Vout(V) |
Fs |
lq |
Temp |
Package |
Description |
|
A |
V |
KHz |
uA |
|||||
|
2 |
1.6-6 |
2.25-6 |
1200 |
65 |
Ind |
SOT23-6 |
低压升压DC-DC |
|
|
2.8 |
2.3-6 |
Vin-26 |
1200 |
75 |
Ind |
MSOP8 |
高压升压DC-DC |
|
|
4 |
2.3-6 |
Vin-14 |
1200 |
75 |
Ind |
MSOP8 |
高压升压DC-DC |
|
|
2.8 |
2.3-6 |
Vin-26 |
1200 |
75 |
Ind |
DFN-10 |
高压升压DC-DC |
|
|
2.8 |
2.3-6 |
Vin-26 |
1200 |
75 |
Ind |
SOT23-5 |
高压升压DC-DC |
|
|
2.8 |
2.3-6 |
Vin-26 |
1200 |
75 |
Ind |
SOT23-6 |
高压升压DC-DC |
|
|
4 |
2.3-6 |
Vin-14 |
1200 |
75 |
Ind |
SOT23-6 |
高压升压DC-DC |
|
|
2.8 |
2.3-6 |
Vin-26 |
1200 |
75 |
Ind |
SOP8 |
高压升压DC-DC 加强散热 |
|
|
4 |
1.6-6 |
Vin-14 |
1200 |
75 |
Ind |
SOP8 |
高压升压DC-DC 加强散热 |
|
|
2.8 |
2.3-6 |
Vin-26 |
1200 |
75 |
Ind |
SOP8-PP |
高压升压DC-DC |
|
|
4 |
2.3-6 |
Vin-26 |
1200 |
75 |
Ind |
SOP8 |
外部补偿 |
|
|
ADJ |
2.3-6 |
Vin-6 |
1200 |
75 |
Ind |
SOP8 |
电流限制可调 |
|
|
ADJ |
2.3-6 |
Vin-26 |
1200 |
75 |
Ind |
SOT23-6 |
电流限制可调 |
|
|
ADJ |
2.3-6 |
Vin-14 |
1200 |
75 |
Ind |
SOT23-6 |
电流限制可调 |
|
|
>6 |
2.5-5.5 |
Vin-5.5 |
600 |
85 |
Ind |
QFN4*4-16 |
同步升压5V 2A~2.5A移动电源 |
|
|
>7 |
2.5-5.5 |
Vin-5.5 |
600 |
85 |
Ind |
QFN3*3-15FC |
同步升压，5V 3A移动电源 |
|
|
>6 |
2.5-5.3 |
Vin-5.3 |
600 |
85 |
Ind |
SOP8-PP |
同步升压，5V 2A~2.5A移动电源 |
|
|
>8 |
2.5-5.5 |
Vin-5.5 |
600 |
85 |
Ind |
QFN3*3-15FC |
同步升压，5V 3.4A移动电源 |
|
