CXSU63211是一种高效率的电流模式升压变换器，具有固定的工作频率。CXSU63211在NMOSFET上集成了一个非常低的Rds，以减少功耗并获得更高的效率。最大效率可达93%。当车辆识别号高于3.3V，输出为5V时，CXSU63211CA输出2A电流。高1.2MHz的工作频率使L和C值最小化。内部补偿网络减少了外部元件的数量。小脚印SOT2 3-6封装为PCB版图区域提供了最佳解决方案。
-
[ 产品资料下载 ]
目录
7.相关产品
产品概述 返回TOP
The CXSU63211 is a high efficiency current-mode boost converter with a fixed operation frequency. The CXSU63211 integrates a very low Rds-on NMOSFET to reduce power loss and achieve higher efficiency. The maximum efficiency is up to 93%. CXSU63211can output 2A current when Vin is higher than 3.3V and output is 5V. The high 1.2MHz operation frequency minimizes L and C value. The internal compensation network reduces external component counts. Small foot print SOT23-6 package provides the best solution for PCB layout area. CXSU63211is designed with 12V process. This allows CXSU63211to be used in applications where higher voltage is needed, such as charging two Lithium batteries in series. The other possible application where the higher voltage is needed is Qualcomm Quick Charge 2.0 compatible portable chargers. CXSU63211can support 9V Vout for this application.
产品特点 返回TOP
Wide Input Range: 2.5-6V Input
Up to 1.5A Output Current
Maximum 8V Output Voltage
1.2MHz Switching Frequency
Low RDS(ON): 70mΩ
Up to 90% Efficiency
Under-Voltage Lockout Protection
Over-Temperature Protection
Internal Soft Start
1uA Shutdown Current
Accurate Reference: 0.6V VREF
Compact package: SOT23-6
应用范围 返回TOP
Chargers
LCD Displays
Digital Cameras
Handheld Devices
Portable Products
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

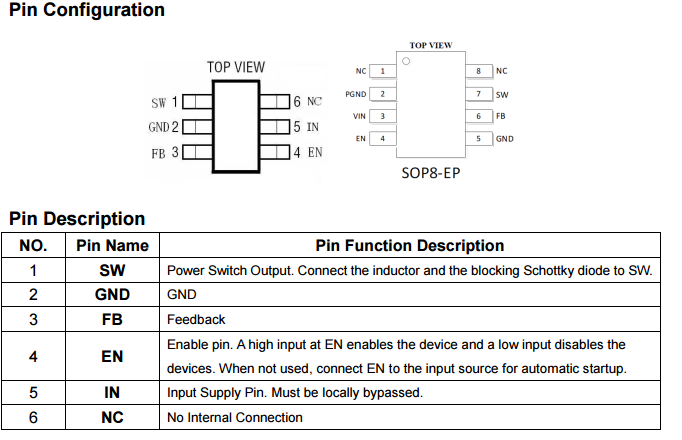

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
Boost DC/DC Converter |
|||||||||
|
Product |
Status |
Device Description |
VIN (min~max) |
VOUT |
IOUT |
IQ(typ) |
Vfb |
Frequency |
Pkg |
|
NEW |
5V/1A非同步升压/OC |
2.6~5.5V |
<6.5V |
1A |
260uA |
1.275V |
1MHZ |
SOT23-6 |
|
|
NEW |
V/2A非同步升压/OC |
2.6~5.5V |
<6.5V |
2A |
260uA |
1.275V |
1MHZ |
PSOP8 |
|
|
Active |
5V/2A非同步升压 |
2.5~6V |
<12V |
1.5/2.5A |
100uA |
0.6V |
1.2MHZ |
SOT23-6 PSOP8 |
|
|
Active |
5V/1.2A同步升压真关断 |
2.5~6V |
<12V |
1.2A |
100uA |
0.6V |
1MHZ |
PSOP8 |
|
|
Active |
2A(QC2.0)非同步升压 |
2.5~6V |
5V 9V |
2.2/1.8A |
200uA |
- |
1MHZ |
PSOP8 |
|
|
NEW |
5V/3A同步升压/智能识别 |
2.6~5.5V |
<5.5V |
3A |
190uA |
1.245V |
500KHZ |
PSOP8 |
|
|
NEW |
5V/3A同步升压 |
2.6~5.5V |
<5.5V |
3A |
190uA |
1.245V |
500KHZ |
PSOP8 |
|
