CXLD6446系列是高精度、低噪声、CMOS LDO电压调节器。CXLD6446系列具有低输出噪声、高纹波抑制比、低损耗和非常快的开机时间，是当今尖端手机的理想选择。CXLD6446内部包括参考电压源、误差放大器、驱动晶体管、电流限制器和相位补偿器。CXLD6446s电流限制器的折叠电路也用作输出电流限制器和的短路保护。输出引脚
-
[ 产品资料下载 ]
目录
1.产品概述 2.产品特点 3.应用范围 4.技术规格书下载（PDF文档）
一.产品概述
The CXLD6446 series are highly accurate, low noise, CMOS LDO Voltage Regulators. Offering low output noise, high ripple rejection ratio, low dropout and very fast turn-on times, the CXLD6446 series is ideal for today’s cutting edge mobile phone. Internally the CXLD6446 includes a reference voltage source, error amplifiers, driver transistors, current limiters and phase compensators. The CXLD6446s current limiters' foldback circuit also operates as a short protect for the output current limiter and. the output pin. The CXLD6446series is also fully compatible with low ESR ceramic capacitors, reducing cost and improving output stability. This high level of output stability is maintained even during frequent load fluctuations, due to the excellent transient response performance and high PSRR achieved across a broad range of frequencies.The CE function allows the output of regulator to be turned off, resulting in greatly reduced power consumption.
二.产品特点
Maximum Output Current: 500mA （VIN＝4.3V,VOUT＝3.3V）
Dropout Voltage: 100mV@ IOUT =100mA
Operating Voltage Range: 2V～6.0V
Highly Accuracy: ±2％
Low Power Consumption: 40uA（TYP.）
Standby Current: 0.1uA（TPY.）
High Ripple Rejection: 70dB@1KHz （CXLD6446C33）
Low output noise: 50uVrms
Line Regulation: 0.05％（TYP.）
Ultra Small Packages: SOT-89-3，SOT-23-3， SOT-23-5, DFN6L, SOT-353
三.应用范围
Mobile phones
Cordless phones, radio communication equipment
Portable games
Cameras, Video cameras
Reference voltage sources
Battery powered equipment
四.技术规格书（产品PDF)
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

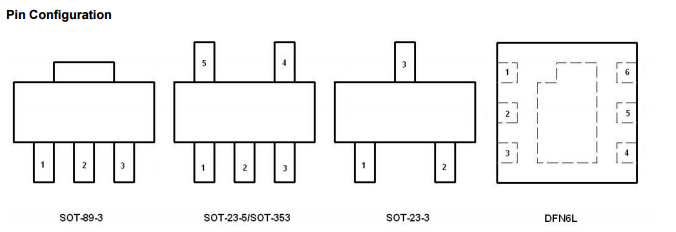

五.产品封装图
六.电路原理图
七.相关芯片选择指南 更多同类产品.....
|
CMOS LDO Linear Regulator（CMOS低压差线性稳压器） |
|||||||||
|
Part |
VIN |
IOUT |
VOUT |
Accu |
IQ |
PSRR |
VDROPOUT |
Application |
Package |
|
(Max) |
(1KHZ) |
3.3V@100mA |
|||||||
|
~6.5V |
300mA |
1.5-5.0V |
±2% |
8uA |
50dB |
150mV |
①②⑨⑪ |
SOT23-3/SOT89-3/ |
|
|
~6.5V |
800mA |
1.8-5.0V |
±1% |
80uA |
65dB |
35mV |
⑨⑰⑱⑲ |
SOT89-5/SOT23-5 |
|
|
~6.5V |
500mA |
1.2-5.0V |
±2% |
50uA |
70dB |
120mV |
①②③④⑨⑪⑫⑬ |
SOT23-5/SOT353 |
|
|
~6.5V |
300mA |
1.5-5.0V |
±2% |
8uA |
50dB |
110mV |
①②⑨⑪ |
SOT23-5 |
|
|
~6.5V |
300mA |
1.0-5.0V |
±1% |
8uA |
50dB |
105mV |
①②⑨⑪ |
SOT23-3/SOT89-3/SOT23/TO92 |
|
|
~6.5V |
800mA |
1.5-5.6V |
±1% |
100uA |
65dB |
35mV |
⑨⑰⑱⑲ |
SOT89-5/SOT23-5 |
|
|
~6.5V |
300mA |
1.2-5.0V |
±2% |
65uA |
62dB |
180mV |
①②③④⑨⑪⑫⑬ |
SOT23-5/SOT353/ |
|
|
~18V |
1000mA |
1.2-5.0V |
±2% |
50uA |
70dB |
80mV |
⑨⑭⑮⑯⑰ |
SOT223/TO252 |
|
|
~18V |
400mA |
1.2-5.0V |
±2% |
60uA |
60dB |
105mV |
①②③④⑨⑪⑫⑬ |
SOT23-5/SOT89-3 |
|
|
~18V |
400mA |
ADJ |
±2% |
60uA |
60dB |
105mV |
①②③④⑨⑪⑫⑬ |
SOT23-5/SOT89-3 |
|
|
~18V |
100mA |
3.0-5.0V |
±2.5% |
4uA |
60dB |
700mV(@50mA) |
③⑤⑥⑦⑧⑨⑩⑫ |
TO92/SOT89-3/SOT23-3 |
|
|
~18V |
150mA |
3.0-5.0V |
±2% |
3uA |
50dB |
580mV |
④⑤⑥⑩ |
TO92/SOT89-3/SOT23-3 |
|
|
~18V |
250mA |
3.0-5.0V |
±2% |
3uA |
50dB |
200mV |
⑨⑩⑪⑫⑭⑮⑯ |
TO92/SOT89-3/SOT23-3 |
|
|
~18V |
500mA |
1.5-5.0V |
±2% |
1.5uA |
50dB |
100mV |
①②④⑤⑨⑪ |
TO92/SOT89-3/SOT23-3 |
|
|
~18V |
300mA |
1.5-5.0V |
±2% |
0.7uA |
40dB |
160mV |
①②④⑤⑨⑪ |
SOT89-3/SOT23-3/SOT23-5 |
|
|
~18V |
300mA |
1.5-5.0V |
±2% |
5.5uA |
50dB |
160mV(VOUT=2.8V) |
①②⑨⑪ |
SOT23-5 |
|
|
~40V |
100mA |
3.0-5.0V |
±2% |
3uA |
50dB |
1100mV(@50mA) |
③⑤⑥⑦⑧⑨⑩⑫ |
TO92/SOT89-3 |
|
|
Applications：①Mobile phone②MID③Cordless phone④Radio communicationequipment⑤Wireless communication equipment⑥Electronic Balance |
|||||||||
|
⑦Toys⑧Reference voltage⑨Battery powered equipment⑩Ammeter⑪Camera, Video camera⑫Portable games⑬Reference voltage sources |
|||||||||
|
⑭Post Regulator for Switching DC/DC Converter⑮High-efficiency linear regulators⑯Battery Charger⑰PC⑱Communication tools |
|||||||||
|
⑲DVD or CD-ROM drivers★CXLD6449 OTP=165°CXLD6445 no OTP |
|||||||||
