CXLD6451系列是高精度、低噪声、LDO电压调节器，能够提供超过1A的输出电流，在1A（CXLD645 1A33）上具有1.3V的最大下降电压。该系列包含四个固定输出电压，分别为1.2V、1.8V、2.5V和3.3V，没有维持负载的最小负载要求。片上微调将参考/输出电压调整到±2%的精度范围内
-
[ 产品资料下载 ]
目录
1.产品概述 2.产品特点 3.应用范围 4.技术规格书下载（PDF文档）
一.产品概述
The CXLD6451 series are highly accurate, low noise, LDO Voltage Regulators that are capable of providing an output current that is in excess of 1A with a maximum dropout voltage of 1.3V at 1A （CXLD6451A33）.This series contains four fixed output voltages of 1.2V, 1.8V, 2.5V and 3.3V that have no minimum load requirement to maintain regulation. On chip trimming adjusts the reference/output voltage to within ±2% accuracy. Internal protection features consist of output current limiting, safe operating area compensation, and thermal shutdown. The CXLD6451 series can operate with up to 18V input. Devices are available in SOT223
二.产品特点
Output Current in Excess of 1A
Dropout Voltage:80mV@ IOUT =100mA （CXLD6451A33）
Operating Voltage Range: 2.5V～18V
Highly Accuracy: ±2％
Adjustable Output Voltage Option
Standby Current: 52uA（TYP.）
High Ripple Rejection: 70dB@1KHz（CXLD6451A33）
Line Regulation: 2mV（TYP.）
Temperature Stability≤0.5%
Thermal Shutdown Protection：160℃
Packages:SOT223 ,SOT89-3,TO252-2L，SOT23-3
三.应用范围
Consumer and Industrial Equipment Point of Regulation
Switching Power Supply Post Regulation
Hard Drive Controllers
Battery Chargers
四.技术规格书（产品PDF)
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

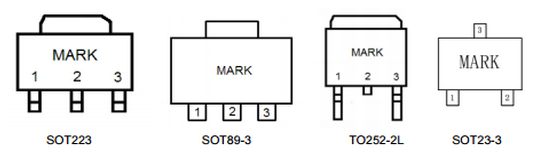

五.产品封装图
六.电路原理图
七.相关芯片选择指南 更多同类产品.....
|
CMOS LDO Linear Regulator（CMOS低压差线性稳压器） |
|||||||||
|
Part |
VIN |
IOUT |
VOUT |
Accu |
IQ |
PSRR |
VDROPOUT |
Application |
Package |
|
(Max) |
(1KHZ) |
3.3V@100mA |
|||||||
|
~6.5V |
300mA |
1.5-5.0V |
±2% |
8uA |
50dB |
150mV |
①②⑨⑪ |
SOT23-3/SOT89-3/ |
|
|
~6.5V |
800mA |
1.8-5.0V |
±1% |
80uA |
65dB |
35mV |
⑨⑰⑱⑲ |
SOT89-5/SOT23-5 |
|
|
~6.5V |
500mA |
1.2-5.0V |
±2% |
50uA |
70dB |
120mV |
①②③④⑨⑪⑫⑬ |
SOT23-5/SOT353 |
|
|
~6.5V |
300mA |
1.5-5.0V |
±2% |
8uA |
50dB |
110mV |
①②⑨⑪ |
SOT23-5 |
|
|
~6.5V |
300mA |
1.0-5.0V |
±1% |
8uA |
50dB |
105mV |
①②⑨⑪ |
SOT23-3/SOT89-3/SOT23/TO92 |
|
|
~6.5V |
800mA |
1.5-5.6V |
±1% |
100uA |
65dB |
35mV |
⑨⑰⑱⑲ |
SOT89-5/SOT23-5 |
|
|
~6.5V |
300mA |
1.2-5.0V |
±2% |
65uA |
62dB |
180mV |
①②③④⑨⑪⑫⑬ |
SOT23-5/SOT353/ |
|
|
~18V |
1000mA |
1.2-5.0V |
±2% |
50uA |
70dB |
80mV |
⑨⑭⑮⑯⑰ |
SOT223/TO252 |
|
|
~18V |
400mA |
1.2-5.0V |
±2% |
60uA |
60dB |
105mV |
①②③④⑨⑪⑫⑬ |
SOT23-5/SOT89-3 |
|
|
~18V |
400mA |
ADJ |
±2% |
60uA |
60dB |
105mV |
①②③④⑨⑪⑫⑬ |
SOT23-5/SOT89-3 |
|
|
~18V |
100mA |
3.0-5.0V |
±2.5% |
4uA |
60dB |
700mV(@50mA) |
③⑤⑥⑦⑧⑨⑩⑫ |
TO92/SOT89-3/SOT23-3 |
|
|
~18V |
150mA |
3.0-5.0V |
±2% |
3uA |
50dB |
580mV |
④⑤⑥⑩ |
TO92/SOT89-3/SOT23-3 |
|
|
~18V |
250mA |
3.0-5.0V |
±2% |
3uA |
50dB |
200mV |
⑨⑩⑪⑫⑭⑮⑯ |
TO92/SOT89-3/SOT23-3 |
|
|
~18V |
500mA |
1.5-5.0V |
±2% |
1.5uA |
50dB |
100mV |
①②④⑤⑨⑪ |
TO92/SOT89-3/SOT23-3 |
|
|
~18V |
300mA |
1.5-5.0V |
±2% |
0.7uA |
40dB |
160mV |
①②④⑤⑨⑪ |
SOT89-3/SOT23-3/SOT23-5 |
|
|
~18V |
300mA |
1.5-5.0V |
±2% |
5.5uA |
50dB |
160mV(VOUT=2.8V) |
①②⑨⑪ |
SOT23-5 |
|
|
~40V |
100mA |
3.0-5.0V |
±2% |
3uA |
50dB |
1100mV(@50mA) |
③⑤⑥⑦⑧⑨⑩⑫ |
TO92/SOT89-3 |
|
|
Applications：①Mobile phone②MID③Cordless phone④Radio communicationequipment⑤Wireless communication equipment⑥Electronic Balance |
|||||||||
|
⑦Toys⑧Reference voltage⑨Battery powered equipment⑩Ammeter⑪Camera, Video camera⑫Portable games⑬Reference voltage sources |
|||||||||
|
⑭Post Regulator for Switching DC/DC Converter⑮High-efficiency linear regulators⑯Battery Charger⑰PC⑱Communication tools |
|||||||||
|
⑲DVD or CD-ROM drivers★CXLD6449 OTP=165°CXLD6445 no OTP |
|||||||||
