CXLD64100是一个低电压降三端可调稳压器，具有1.5A输出电流能力。为了获得较低的压降和较快的瞬态响应，这对低压应用至关重要，对CXLD64100进行了优化。该设备可调，固定输出电压为1.8V、2.5V、2.85V和3.3V，输出电压的有效范围为1.25～10.7V，输入电压低于12V。在1.5 A的电压下，最大电压为1.45伏，电流限制被修整，以保证输出电流和可控短路电流。
-
[ 产品资料下载 ]
目录
7.相关产品
产品概述 返回TOP
The CXLD64100 is a low dropout three-terminal adjustable regulators with 1.5A output current capability. In order to obtain lower dropout voltage and faster transient response, which is critical for low voltage applications, the CXLD64100 has been optimized. The device is available in an adjustable version and fixed output voltages of 1.8V, 2.5V, 2.85V, and 3.3V, the output available voltage range is from 1.25 to 10.7V with an input supply below 12V. Dropout voltage is guaranteed at a maximum of 1.45V at 1.5A. Current limit is trimmed to ensure specified output current and controlled short-circuit current. On-chip thermal limiting provides protection against any combination of overload that would create excessive junction temperatures. The CXLD64100 is available in the industry standard 3-pin SOT-223, TO-252, TO-220, or TO-263 power packages
产品特点 返回TOP
· Guaranteed Output Voltage Accuracy within 2%
· Fast Transient Response
· Guaranteed Dropout Voltage at Multiple Currents
· Load Regulation : 0.1% Typ. · Line Regulation : 0.03% Typ.
· Low Dropout Voltage : 1.3V Typ. at IOUT =1.5A
· Current Limit : 1.5A Min. at TJ =125 °C
· On-Chip Thermal Limiting : 150 °C Typ.
· Adjustable Output : 1.25~10.7V
· Standard 3-pin SOT-223, TO-252 , TO-220, and TO-263 Power Packages
· Lead Free and Green Devices Available (RoHS Compliant)
应用范围 返回TOP
· Active SCSI Terminators
· Low Voltage Logic Supplies
· Battery-Powered Circuitry
· Post Regulator for Switching Power Supply
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

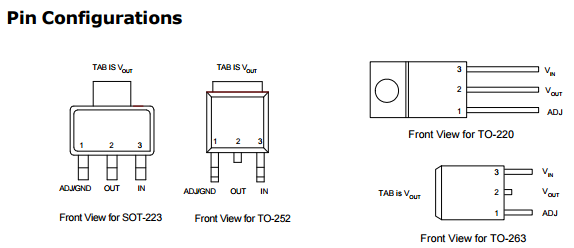

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
Linear Regulator > Single Output LDO Regulator |
||||||||||||||
|
Part_No |
Package |
Input Voltag (V) |
VCNTL Voltage (V) |
Quies. Curre. (uA) |
Ref. Volta. (V) |
Fixed Output Voltage (V) |
Out. Curr. (max) (A) |
Dro. Volt. (V) |
EN |
POK |
High PSRR |
Low Noise |
||
|
min |
max |
min |
max |
|||||||||||
|
TO220/TO252/TO263 |
2.75 |
7 |
N |
N |
8000 |
1.25 |
3.3 |
5 |
1.3 |
N |
N |
N |
N |
|
|
TO220/TO252/TO263 |
1.75 |
7 |
N |
N |
8000 |
1.25 |
3.3 |
3 |
1.3 |
N |
N |
N |
N |
|
|
SOT223/TO252/TO220 |
2.75 |
12 |
N |
N |
5500 |
1.25 |
1.8/2.5/2.85 /3.3 |
1.5 |
1.3 |
N |
N |
N |
N |
|
|
SOT89/TO92 SOT223/TO252 |
3.1 |
9 |
N |
N |
5500 |
1.25 |
1.8/2.5/3.3 |
0.8 |
1.3 |
N |
N |
N |
N |
|
|
CXLD64101R |
SOT89/TO92 |
3.1 |
9 |
N |
N |
5500 |
1.25 |
1.8/2.5/3.3 |
0.8 |
1.3 |
N |
N |
N |
N |
|
SOT89/TO92 |
2.95 |
9 |
N |
N |
5500 |
1.25 |
N |
0.5 |
1.3 |
N |
N |
N |
N |
|
|
SOT223 |
2.9 |
9 |
N |
N |
5500 |
N |
1.2 |
0.6 |
1.4 |
N |
N |
N |
N |
|
|
SOP-8 |
2.75 |
12 |
N |
N |
5500 |
1.25 |
3.3 |
1 |
1.1 |
N |
N |
N |
N |
|
|
SOP-8 |
3 |
6 |
N |
N |
50 |
N |
2.5 |
1 |
0.21 |
N |
N |
Y |
N |
|
|
TO220-5/TO263-5 TO252-5/SOP8P |
2.05 |
5.5 |
2.75 |
5.5 |
8000 |
1.25 |
1.5/1.8/2.5 |
5 |
0.52 |
N |
N |
Y |
N |
|
|
TO220-5/TO263-5 TO252-5 |
2.05 |
5.5 |
2.75 |
12 |
8000 |
1.25 |
N |
3 |
0.45 |
N |
N |
Y |
N |
|
|
SOT-23-5/SOT-23-3 SOT-89 |
2 |
6 |
N |
N |
4 |
N |
1.2~ 3.5 |
0.15 |
0.2 |
Y |
N |
N |
N |
|
|
CXLD64109/ |
SOT23-5 |
2.7 |
6 |
N |
N |
50 |
N |
1.3 ~ 5.0 |
0.15 |
0.3 |
Y |
N |
N |
N |
|
SOT23-5/SOT89/SOP8P |
5.4 |
25 |
N |
N |
15 |
1.24 |
3.3/5 |
0.15 |
0.75 |
Y |
N |
N |
N |
|
|
SOT23-5/SOT89 SOP8P |
6.5 |
25 |
N |
N |
70 |
1.24 |
3.3/5 |
0.15 |
1.9 |
T |
N |
N |
N |
|
|
SOT25 |
2.7 |
6 |
N |
N |
60 |
N |
1.2 |
0.15 |
1.5 |
Y |
Y |
N |
N |
|
|
CXLD64113/A |
SOT23/SOT89 |
2.7 |
6 |
N |
N |
50 |
N |
1.3~ 3.4/5 |
0.3 |
0.4 |
Y |
N |
N |
N |
|
CXLD64114/A |
SOT23/SOT25/SOT89 |
2.7 |
6 |
N |
N |
60 |
N |
1.5~ 4.5 |
0.3 |
0.4 |
N |
N |
N |
N |
|
SOT25 |
2.8 |
6 |
N |
N |
135 |
0.8 |
1.2,1.5,1.8, 2.5,3.3 |
0.3 |
0.23 |
Y |
N |
N |
N |
|
|
SOT25 |
2.8 |
6 |
N |
N |
135 |
N |
1.2/3.3 |
0.3 |
0.17 |
Y |
Y |
N |
N |
|
|
SOT25 |
2.8 |
6 |
N |
N |
135 |
0.8 |
1.2 |
0.3 |
0.23 |
Y |
N |
N |
N |
|
|
CXLD64118/A |
SOT23/SOT25/TSOT25 SC70-5/VTDFN1.2x1.6 -4/TDFN1.6x1.6-6 |
2.5 |
6 |
N |
N |
40 |
N |
1.2~3.7 |
0.3 |
0.52 |
Y |
N |
Y |
N |
|
CXLD64119/A |
SOT25 |
3 |
6 |
N |
N |
135 |
1.25 |
N |
0.3 |
0.5 |
Y |
N |
N |
N |
|
SOT25 |
2.7 |
6 |
N |
N |
135 |
0.8 |
N |
0.3 |
0.5 |
Y |
N |
N |
N |
|
|
SOT25 |
3 |
6 |
N |
N |
135 |
1.2 |
N |
0.3 |
0.5 |
Y |
N |
N |
N |
|
|
SOP-8P |
1.2 |
3.5 |
3 |
6 |
2000 |
N |
0.8~3 |
2 |
0.47 |
Y |
N |
N |
N |
|
|
SOP8/TSSOP8 |
2.7 |
6 |
N |
N |
120 |
N |
1.3~3.4 |
0.5 |
0.3 |
Y |
N |
N |
N |
|
|
SOT23/SOT89/SOT223 |
2.7 |
6 |
N |
N |
60 |
N |
1.5~4.5 |
0.56 |
0.6 |
N |
N |
N |
N |
|
|
SOT23/SOT89/SOT223 |
2.9 |
6 |
N |
N |
140 |
N |
1.0~5.0 |
0.6 |
0.22 |
N |
N |
N |
N |
|
|
SOP8 |
2.9 |
6 |
N |
N |
140 |
N |
1.2,1.5, 1.8,2.5, 2.8,3,3.3 |
0.6 |
0.22 |
N |
N |
N |
N |
|
|
SOP8 |
2.9 |
6 |
N |
N |
140 |
0 |
N |
0.6 |
0.25 |
Y |
N |
N |
N |
|
|
SOP8 |
4.5 |
6 |
N |
N |
140 |
0 |
N |
0.6 |
0.25 |
N |
N |
N |
N |
|
|
TDFN3x3-10 |
1.2 |
5.5 |
3 |
5.5 |
1000 |
0.8 |
N |
1 |
0.12 |
Y |
Y |
N |
N |
|
|
SOT-89/TO-92 |
2.75 |
9 |
N |
N |
6000 |
1.25 |
2.85/3.3/3.5 |
0.3 |
1.2 |
N |
N |
N |
N |
|
|
SOT-89/TO-92 |
2.95 |
9 |
N |
N |
6000 |
1.25 |
1.8,2.5, 2.6,2.8,3.3 |
0.45 |
1.3 |
N |
N |
N |
N |
|
|
SOT-89/TO-92 |
2.75 |
9 |
N |
N |
6000 |
1.25 |
2.85/3.3 |
0.3 |
1.2 |
N |
N |
N |
N |
|
|
SOT-89/TO-92 |
2.95 |
9 |
N |
N |
6000 |
1.25 |
1.8/2.5/3.3 |
0.5 |
1.3 |
N |
N |
N |
N |
|
|
SOT89/SOT223/TO252 |
2.7 |
6 |
N |
N |
50 |
N |
1.3~3.4 |
0.9 |
0.21 |
Y |
N |
Y |
N |
|
|
SOP-8 |
1 |
5.5 |
3 |
5.5 |
1000 |
0.8 |
N |
1 |
0.12 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.1 |
3.3 |
3 |
6 |
1000 |
0.8 |
N |
5 |
0.15 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.1 |
3.3 |
3 |
6 |
1000 |
0.8 |
N |
4 |
0.17 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.1 |
3.5 |
3 |
6 |
1000 |
0.8 |
N |
1.5 |
0.12 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.2 |
5.5 |
3 |
5.5 |
1000 |
0.8 |
N |
2 |
0.24 |
Y |
Y |
N |
N |
|
|
SOP-8 |
1.2 |
3.65 |
3 |
5.5 |
1000 |
0.8 |
N |
3 |
0.23 |
Y |
Y |
N |
N |
|
|
SOP-8 |
1.2 |
5.5 |
3 |
5.5 |
1000 |
0.8 |
N |
3 |
0.23 |
Y |
Y |
N |
N |
|
|
SOP8P/TDFN3x3-10 |
1.2 |
5.5 |
3 |
5.5 |
100 |
0.8 |
N |
3 |
0.23 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.2 |
3.65 |
3 |
5.5 |
1000 |
0.8 |
N |
4 |
0.3 |
Y |
Y |
N |
N |
|
|
SOP-8P/TDFN3x3-10 |
1 |
5.25 |
3 |
5.5 |
1000 |
0.8 |
N |
5 |
0.15 |
Y |
Y |
N |
N |
|
