CXLD64105是一个低压差稳压器，工作电压从2.7V到6V，提供高达1A的电流能力。为了获得较低的压降和较快的瞬态响应，这对低电压应用至关重要，对CXLD64105进行了优化。该器件可在2.5V、2.8V和3.3V的固定输出电压下使用。在1A负载下，CXLD64 105的失压保证最大为210MV。电流限制被修剪以确保指定的输出电流和控制短路电流。
-
[ 产品资料下载 ]
目录
7.相关产品
产品概述 返回TOP
The CXLD64105 is a low dropout regulator which operates from 2.7V to 6V input voltage and delivers up to 1A current capability. In order to obtain lower dropout voltage and faster transient response which is critical for low voltage applications, the CXLD64105 has been optimized. The device is available in fixed output voltages of 2.5V, 2.8V, and 3.3V. CXLD64105 Dropout voltage is guaranteed at a maximum of 210mV at 1A load. Current limit is trimmed to ensure specified output current and controlled short-circuit current. On-chip thermal limiting provides protection against any combination of overload that would create excessive junction temperatures. The CXLD64105 is available in the industry standard 8-pin SOP power package which can be used in applications where space is limited.
产品特点 返回TOP
· Guaranteed Output Voltage Accuracy within 2%
· Fast Transient Response · Load Regulation : 1mV Typ.
· Line Regulation : 4mV Typ.
· Low Dropout Voltage : 210mV at IOUT =1A
· Current Limit : 1A Typ. at TJ =125 °C
· On-Chip Thermal Limiting : 150 °C Typ.
· Standard 8-pin SOP Power Package
· Very Low Shutdown Current : < 0.5mA
· Fixed Output Voltage : 2.5V, 2.8V and 3.3V
· Lead Free and Green Devices Available (RoHS Compliant)
应用范围 返回TOP
· Peripheral Cards
· Active SCSI Terminators
· Low Voltage Logic Supplies
· Post Regulator for Switching Power Supply

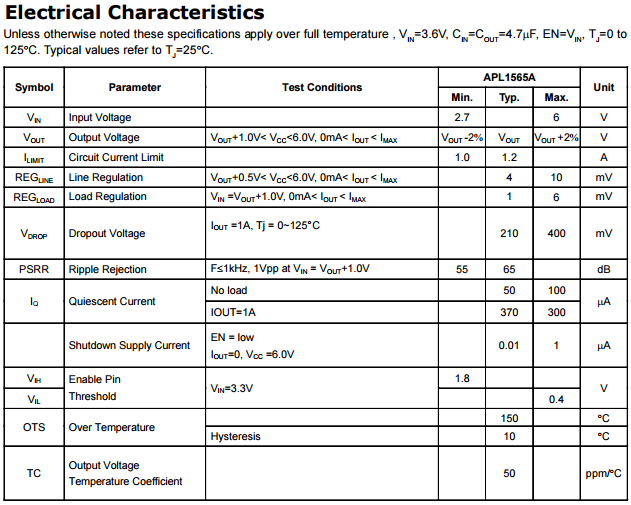

技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

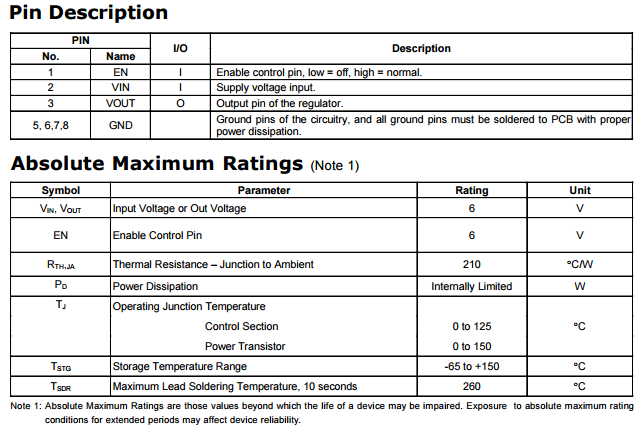

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
Linear Regulator > Single Output LDO Regulator |
||||||||||||||
|
Part_No |
Package |
Input Voltag (V) |
VCNTL Voltage (V) |
Quies. Curre. (uA) |
Ref. Volta. (V) |
Fixed Output Voltage (V) |
Out. Curr. (max) (A) |
Dro. Volt. (V) |
EN |
POK |
High PSRR |
Low Noise |
||
|
min |
max |
min |
max |
|||||||||||
|
TO220/TO252/TO263 |
2.75 |
7 |
N |
N |
8000 |
1.25 |
3.3 |
5 |
1.3 |
N |
N |
N |
N |
|
|
TO220/TO252/TO263 |
1.75 |
7 |
N |
N |
8000 |
1.25 |
3.3 |
3 |
1.3 |
N |
N |
N |
N |
|
|
SOT223/TO252/TO220 |
2.75 |
12 |
N |
N |
5500 |
1.25 |
1.8/2.5/2.85 /3.3 |
1.5 |
1.3 |
N |
N |
N |
N |
|
|
SOT89/TO92 SOT223/TO252 |
3.1 |
9 |
N |
N |
5500 |
1.25 |
1.8/2.5/3.3 |
0.8 |
1.3 |
N |
N |
N |
N |
|
|
CXLD64101R |
SOT89/TO92 |
3.1 |
9 |
N |
N |
5500 |
1.25 |
1.8/2.5/3.3 |
0.8 |
1.3 |
N |
N |
N |
N |
|
SOT89/TO92 |
2.95 |
9 |
N |
N |
5500 |
1.25 |
N |
0.5 |
1.3 |
N |
N |
N |
N |
|
|
SOT223 |
2.9 |
9 |
N |
N |
5500 |
N |
1.2 |
0.6 |
1.4 |
N |
N |
N |
N |
|
|
SOP-8 |
2.75 |
12 |
N |
N |
5500 |
1.25 |
3.3 |
1 |
1.1 |
N |
N |
N |
N |
|
|
SOP-8 |
3 |
6 |
N |
N |
50 |
N |
2.5 |
1 |
0.21 |
N |
N |
Y |
N |
|
|
TO220-5/TO263-5 TO252-5/SOP8P |
2.05 |
5.5 |
2.75 |
5.5 |
8000 |
1.25 |
1.5/1.8/2.5 |
5 |
0.52 |
N |
N |
Y |
N |
|
|
TO220-5/TO263-5 TO252-5 |
2.05 |
5.5 |
2.75 |
12 |
8000 |
1.25 |
N |
3 |
0.45 |
N |
N |
Y |
N |
|
|
SOT-23-5/SOT-23-3 SOT-89 |
2 |
6 |
N |
N |
4 |
N |
1.2~ 3.5 |
0.15 |
0.2 |
Y |
N |
N |
N |
|
|
CXLD64109/ |
SOT23-5 |
2.7 |
6 |
N |
N |
50 |
N |
1.3 ~ 5.0 |
0.15 |
0.3 |
Y |
N |
N |
N |
|
SOT23-5/SOT89/SOP8 |
5.4 |
25 |
N |
N |
15 |
1.24 |
3.3/5 |
0.15 |
0.75 |
Y |
N |
N |
N |
|
|
SOT23-5/SOT89 SOP8P |
6.5 |
25 |
N |
N |
70 |
1.24 |
3.3/5 |
0.15 |
1.9 |
T |
N |
N |
N |
|
|
SOT25 |
2.7 |
6 |
N |
N |
60 |
N |
1.2 |
0.15 |
1.5 |
Y |
Y |
N |
N |
|
|
CXLD64113/A |
SOT23/SOT89 |
2.7 |
6 |
N |
N |
50 |
N |
1.3~ 3.4/5 |
0.3 |
0.4 |
Y |
N |
N |
N |
|
CXLD64114/A |
SOT23/SOT25/SOT89 |
2.7 |
6 |
N |
N |
60 |
N |
1.5~ 4.5 |
0.3 |
0.4 |
N |
N |
N |
N |
|
SOT25 |
2.8 |
6 |
N |
N |
135 |
0.8 |
1.2,1.5,1.8, 2.5,3.3 |
0.3 |
0.23 |
Y |
N |
N |
N |
|
|
SOT25 |
2.8 |
6 |
N |
N |
135 |
N |
1.2/3.3 |
0.3 |
0.17 |
Y |
Y |
N |
N |
|
|
SOT25 |
2.8 |
6 |
N |
N |
135 |
0.8 |
1.2 |
0.3 |
0.23 |
Y |
N |
N |
N |
|
|
CXLD64118/A |
SOT23/SOT25/TSOT25 SC70-5/VTDFN1.2x1.6 -4/TDFN1.6x1.6-6 |
2.5 |
6 |
N |
N |
40 |
N |
1.2~3.7 |
0.3 |
0.52 |
Y |
N |
Y |
N |
|
CXLD64119/A |
SOT25 |
3 |
6 |
N |
N |
135 |
1.25 |
N |
0.3 |
0.5 |
Y |
N |
N |
N |
|
SOT25 |
2.7 |
6 |
N |
N |
135 |
0.8 |
N |
0.3 |
0.5 |
Y |
N |
N |
N |
|
|
SOT25 |
3 |
6 |
N |
N |
135 |
1.2 |
N |
0.3 |
0.5 |
Y |
N |
N |
N |
|
|
SOP-8P |
1.2 |
3.5 |
3 |
6 |
2000 |
N |
0.8~3 |
2 |
0.47 |
Y |
N |
N |
N |
|
|
SOP8/TSSOP8 |
2.7 |
6 |
N |
N |
120 |
N |
1.3~3.4 |
0.5 |
0.3 |
Y |
N |
N |
N |
|
|
SOT23/SOT89/SOT223 |
2.7 |
6 |
N |
N |
60 |
N |
1.5~4.5 |
0.56 |
0.6 |
N |
N |
N |
N |
|
|
SOT23/SOT89/SOT223 |
2.9 |
6 |
N |
N |
140 |
N |
1.0~5.0 |
0.6 |
0.22 |
N |
N |
N |
N |
|
|
SOP8 |
2.9 |
6 |
N |
N |
140 |
N |
1.2,1.5, 1.8,2.5, 2.8,3,3.3 |
0.6 |
0.22 |
N |
N |
N |
N |
|
|
SOP8 |
2.9 |
6 |
N |
N |
140 |
0 |
N |
0.6 |
0.25 |
Y |
N |
N |
N |
|
|
SOP8 |
4.5 |
6 |
N |
N |
140 |
0 |
N |
0.6 |
0.25 |
N |
N |
N |
N |
|
|
TDFN3x3-10 |
1.2 |
5.5 |
3 |
5.5 |
1000 |
0.8 |
N |
1 |
0.12 |
Y |
Y |
N |
N |
|
|
SOT-89/TO-92 |
2.75 |
9 |
N |
N |
6000 |
1.25 |
2.85/3.3/3.5 |
0.3 |
1.2 |
N |
N |
N |
N |
|
|
SOT-89/TO-92 |
2.95 |
9 |
N |
N |
6000 |
1.25 |
1.8,2.5, 2.6,2.8,3.3 |
0.45 |
1.3 |
N |
N |
N |
N |
|
|
SOT-89/TO-92 |
2.75 |
9 |
N |
N |
6000 |
1.25 |
2.85/3.3 |
0.3 |
1.2 |
N |
N |
N |
N |
|
|
SOT-89/TO-92 |
2.95 |
9 |
N |
N |
6000 |
1.25 |
1.8/2.5/3.3 |
0.5 |
1.3 |
N |
N |
N |
N |
|
|
SOT89/SOT223/TO252 |
2.7 |
6 |
N |
N |
50 |
N |
1.3~3.4 |
0.9 |
0.21 |
Y |
N |
Y |
N |
|
|
SOP-8 |
1 |
5.5 |
3 |
5.5 |
1000 |
0.8 |
N |
1 |
0.12 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.1 |
3.3 |
3 |
6 |
1000 |
0.8 |
N |
5 |
0.15 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.1 |
3.3 |
3 |
6 |
1000 |
0.8 |
N |
4 |
0.17 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.1 |
3.5 |
3 |
6 |
1000 |
0.8 |
N |
1.5 |
0.12 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.2 |
5.5 |
3 |
5.5 |
1000 |
0.8 |
N |
2 |
0.24 |
Y |
Y |
N |
N |
|
|
SOP-8 |
1.2 |
3.65 |
3 |
5.5 |
1000 |
0.8 |
N |
3 |
0.23 |
Y |
Y |
N |
N |
|
|
SOP-8 |
1.2 |
5.5 |
3 |
5.5 |
1000 |
0.8 |
N |
3 |
0.23 |
Y |
Y |
N |
N |
|
|
SOP8P/TDFN3x3-10 |
1.2 |
5.5 |
3 |
5.5 |
100 |
0.8 |
N |
3 |
0.23 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.2 |
3.65 |
3 |
5.5 |
1000 |
0.8 |
N |
4 |
0.3 |
Y |
Y |
N |
N |
|
|
SOP-8P/TDFN3x3-10 |
1 |
5.25 |
3 |
5.5 |
1000 |
0.8 |
N |
5 |
0.15 |
Y |
Y |
N |
N |
|
