CXLD64119 CXLD64119A是一个P通道低压差线性稳压器，它只需要一个3-6V的输入电压，并提供高达300mA的电流来设置输出电压。它还可以与低ESR陶瓷电容器一起工作，非常适用于笔记本电脑和手机等电池供电的应用。在300毫安的负载下，典型的电压降只有300毫伏。具有电流折叠和热关机功能的电流限制可防止电流过载和温度过高。
-
[ 产品资料下载 ]
目录
7.相关产品
产品概述 返回TOP
The CXLD64119/A is a P-channel low dropout linear regulator which needs only one input voltage from 3 to 6V, and delivers current up to 300mA to set output voltage. It also can work with low ESR ceramic capacitors and is ideal for using in the battery-powered applications such as notebook computers and cellular phones. Typical dropout voltage is only 300mV at 300mA loading. Current-limit with current foldback and thermal shutdown functions protect the device against current over-loads and over-temperature. The CXLD64119/A is available in a SOT- 23-5 package.
产品特点 返回TOP
· Wide Operating Voltage: 3~6V
· Low Dropout Voltage: 300mV(Typical) @ 300mA
· Guaranteed 300mA Output Current
· Adjustable Output Voltage: 1.25~5.5V
· Current-Limit Protection with Foldback Current
· Over-Temperature Protection
· Stable with Low ESR Ceramic Capacitor
· SOT-23-5 Package
· Lead Free and Green Devices Available (RoHS Compliant)
应用范围 返回TOP
· Cellular Phones
· Portable and Battery-Powered Equipment
· Notebook and Personal Computers

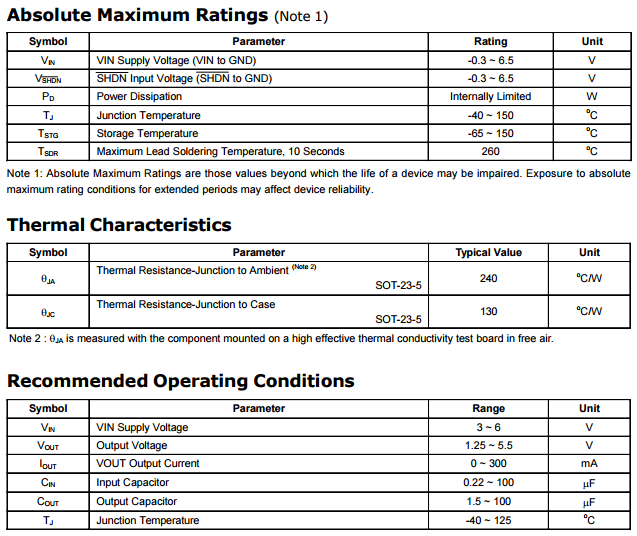

技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

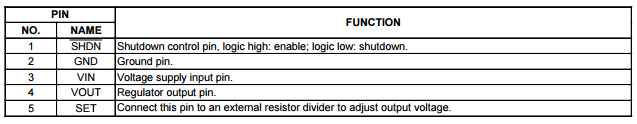

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
Linear Regulator > Single Output LDO Regulator |
||||||||||||||
|
Part_No |
Package |
Input Voltag (V) |
VCNTL Voltage (V) |
Quies. Curre. (uA) |
Ref. Volta. (V) |
Fixed Output Voltage (V) |
Out. Curr. (max) (A) |
Dro. Volt. (V) |
EN |
POK |
High PSRR |
Low Noise |
||
|
min |
max |
min |
max |
|||||||||||
|
TO220/TO252/TO263 |
2.75 |
7 |
N |
N |
8000 |
1.25 |
3.3 |
5 |
1.3 |
N |
N |
N |
N |
|
|
TO220/TO252/TO263 |
1.75 |
7 |
N |
N |
8000 |
1.25 |
3.3 |
3 |
1.3 |
N |
N |
N |
N |
|
|
SOT223/TO252/TO220 |
2.75 |
12 |
N |
N |
5500 |
1.25 |
1.8/2.5/2.85 /3.3 |
1.5 |
1.3 |
N |
N |
N |
N |
|
|
SOT89/TO92 SOT223/TO252 |
3.1 |
9 |
N |
N |
5500 |
1.25 |
1.8/2.5/3.3 |
0.8 |
1.3 |
N |
N |
N |
N |
|
|
CXLD64101R |
SOT89/TO92 |
3.1 |
9 |
N |
N |
5500 |
1.25 |
1.8/2.5/3.3 |
0.8 |
1.3 |
N |
N |
N |
N |
|
SOT89/TO92 |
2.95 |
9 |
N |
N |
5500 |
1.25 |
N |
0.5 |
1.3 |
N |
N |
N |
N |
|
|
SOT223 |
2.9 |
9 |
N |
N |
5500 |
N |
1.2 |
0.6 |
1.4 |
N |
N |
N |
N |
|
|
SOP-8 |
2.75 |
12 |
N |
N |
5500 |
1.25 |
3.3 |
1 |
1.1 |
N |
N |
N |
N |
|
|
SOP-8 |
3 |
6 |
N |
N |
50 |
N |
2.5 |
1 |
0.21 |
N |
N |
Y |
N |
|
|
TO220-5/TO263-5 TO252-5/SOP8P |
2.05 |
5.5 |
2.75 |
5.5 |
8000 |
1.25 |
1.5/1.8/2.5 |
5 |
0.52 |
N |
N |
Y |
N |
|
|
TO220-5/TO263-5 TO252-5 |
2.05 |
5.5 |
2.75 |
12 |
8000 |
1.25 |
N |
3 |
0.45 |
N |
N |
Y |
N |
|
|
SOT-23-5/SOT-23-3 SOT-89 |
2 |
6 |
N |
N |
4 |
N |
1.2~ 3.5 |
0.15 |
0.2 |
Y |
N |
N |
N |
|
|
CXLD64109/ |
SOT23-5 |
2.7 |
6 |
N |
N |
50 |
N |
1.3 ~ 5.0 |
0.15 |
0.3 |
Y |
N |
N |
N |
|
SOT23-5/SOT89/SOP8 |
5.4 |
25 |
N |
N |
15 |
1.24 |
3.3/5 |
0.15 |
0.75 |
Y |
N |
N |
N |
|
|
SOT23-5/SOT89 SOP8P |
6.5 |
25 |
N |
N |
70 |
1.24 |
3.3/5 |
0.15 |
1.9 |
T |
N |
N |
N |
|
|
SOT25 |
2.7 |
6 |
N |
N |
60 |
N |
1.2 |
0.15 |
1.5 |
Y |
Y |
N |
N |
|
|
CXLD64113/A |
SOT23/SOT89 |
2.7 |
6 |
N |
N |
50 |
N |
1.3~ 3.4/5 |
0.3 |
0.4 |
Y |
N |
N |
N |
|
CXLD64114/A |
SOT23/SOT25/SOT89 |
2.7 |
6 |
N |
N |
60 |
N |
1.5~ 4.5 |
0.3 |
0.4 |
N |
N |
N |
N |
|
SOT25 |
2.8 |
6 |
N |
N |
135 |
0.8 |
1.2,1.5,1.8, 2.5,3.3 |
0.3 |
0.23 |
Y |
N |
N |
N |
|
|
SOT25 |
2.8 |
6 |
N |
N |
135 |
N |
1.2/3.3 |
0.3 |
0.17 |
Y |
Y |
N |
N |
|
|
SOT25 |
2.8 |
6 |
N |
N |
135 |
0.8 |
1.2 |
0.3 |
0.23 |
Y |
N |
N |
N |
|
|
CXLD64118/A |
SOT23/SOT25/TSOT25 SC70-5/VTDFN1.2x1.6 -4/TDFN1.6x1.6-6 |
2.5 |
6 |
N |
N |
40 |
N |
1.2~3.7 |
0.3 |
0.52 |
Y |
N |
Y |
N |
|
CXLD64119/A |
SOT25 |
3 |
6 |
N |
N |
135 |
1.25 |
N |
0.3 |
0.5 |
Y |
N |
N |
N |
|
SOT25 |
2.7 |
6 |
N |
N |
135 |
0.8 |
N |
0.3 |
0.5 |
Y |
N |
N |
N |
|
|
SOT25 |
3 |
6 |
N |
N |
135 |
1.2 |
N |
0.3 |
0.5 |
Y |
N |
N |
N |
|
|
SOP-8P |
1.2 |
3.5 |
3 |
6 |
2000 |
N |
0.8~3 |
2 |
0.47 |
Y |
N |
N |
N |
|
|
SOP8/TSSOP8 |
2.7 |
6 |
N |
N |
120 |
N |
1.3~3.4 |
0.5 |
0.3 |
Y |
N |
N |
N |
|
|
SOT23/SOT89/SOT223 |
2.7 |
6 |
N |
N |
60 |
N |
1.5~4.5 |
0.56 |
0.6 |
N |
N |
N |
N |
|
|
SOT23/SOT89/SOT223 |
2.9 |
6 |
N |
N |
140 |
N |
1.0~5.0 |
0.6 |
0.22 |
N |
N |
N |
N |
|
|
SOP8 |
2.9 |
6 |
N |
N |
140 |
N |
1.2,1.5, 1.8,2.5, 2.8,3,3.3 |
0.6 |
0.22 |
N |
N |
N |
N |
|
|
SOP8 |
2.9 |
6 |
N |
N |
140 |
0 |
N |
0.6 |
0.25 |
Y |
N |
N |
N |
|
|
SOP8 |
4.5 |
6 |
N |
N |
140 |
0 |
N |
0.6 |
0.25 |
N |
N |
N |
N |
|
|
TDFN3x3-10 |
1.2 |
5.5 |
3 |
5.5 |
1000 |
0.8 |
N |
1 |
0.12 |
Y |
Y |
N |
N |
|
|
SOT-89/TO-92 |
2.75 |
9 |
N |
N |
6000 |
1.25 |
2.85/3.3/3.5 |
0.3 |
1.2 |
N |
N |
N |
N |
|
|
SOT-89/TO-92 |
2.95 |
9 |
N |
N |
6000 |
1.25 |
1.8,2.5, 2.6,2.8,3.3 |
0.45 |
1.3 |
N |
N |
N |
N |
|
|
SOT-89/TO-92 |
2.75 |
9 |
N |
N |
6000 |
1.25 |
2.85/3.3 |
0.3 |
1.2 |
N |
N |
N |
N |
|
|
SOT-89/TO-92 |
2.95 |
9 |
N |
N |
6000 |
1.25 |
1.8/2.5/3.3 |
0.5 |
1.3 |
N |
N |
N |
N |
|
|
SOT89/SOT223/TO252 |
2.7 |
6 |
N |
N |
50 |
N |
1.3~3.4 |
0.9 |
0.21 |
Y |
N |
Y |
N |
|
|
SOP-8 |
1 |
5.5 |
3 |
5.5 |
1000 |
0.8 |
N |
1 |
0.12 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.1 |
3.3 |
3 |
6 |
1000 |
0.8 |
N |
5 |
0.15 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.1 |
3.3 |
3 |
6 |
1000 |
0.8 |
N |
4 |
0.17 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.1 |
3.5 |
3 |
6 |
1000 |
0.8 |
N |
1.5 |
0.12 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.2 |
5.5 |
3 |
5.5 |
1000 |
0.8 |
N |
2 |
0.24 |
Y |
Y |
N |
N |
|
|
SOP-8 |
1.2 |
3.65 |
3 |
5.5 |
1000 |
0.8 |
N |
3 |
0.23 |
Y |
Y |
N |
N |
|
|
SOP-8 |
1.2 |
5.5 |
3 |
5.5 |
1000 |
0.8 |
N |
3 |
0.23 |
Y |
Y |
N |
N |
|
|
SOP8P/TDFN3x3-10 |
1.2 |
5.5 |
3 |
5.5 |
100 |
0.8 |
N |
3 |
0.23 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.2 |
3.65 |
3 |
5.5 |
1000 |
0.8 |
N |
4 |
0.3 |
Y |
Y |
N |
N |
|
|
SOP-8P/TDFN3x3-10 |
1 |
5.25 |
3 |
5.5 |
1000 |
0.8 |
N |
5 |
0.15 |
Y |
Y |
N |
N |
|
