CXLD64133是一个3针低压差线性稳压器，输出电压在线、负载和温度变化的精度为2.0%。在500毫安输出电流的辍学电压小于1.3V。两个输出电流限制和热关机内置，以提供最大的保护CXLD64 133对故障条件。当电流超过500毫安或结温达到150℃时，过电流和热关机电路激活
-
[ 产品资料下载 ]
目录
7.相关产品
产品概述 返回TOP
The CXLD64133 is a 3-pin low dropout linear regulator with 2.0% accuracy of output voltage over line, load and temperature variations. Dropout voltage at 500mA output current is less than 1.3V. Both output current limiting and thermal shutdown are built in to provide maximal protection to the CXLD64133 against fault conditions. The over current and thermal shutdown circuits become active when the current exceeds 500mA, or the junction temperature reaches 150°C. Normal operation is recovered when junction temperature drops below 130°C.
产品特点 返回TOP
· Low Dropout Voltage of 1.3V at 500mA
· Output Voltage Accuracy ± 2.0%
· Line Regulation - 3mV (typ.)
· Load Regulation - 13mV (typ.)
· Input Voltage Range up to 9V
· Internal Current-Limit and Thermal Shutdown Protections
· Available Output Voltages -ADJ, 1.8V, 2.5V, 3.3V
· Various SOT-89 Package Available
· Lead Free and Green Devices Available (RoHS Compliant)
应用范围 返回TOP
· Voltage Regulator for CD-ROM Drivers
· Voltage Regulator for LAN Cards
· Wireless Communication Systems
· Portable Instrument
· Portable Consumer Equipment
· Low Voltage Systems

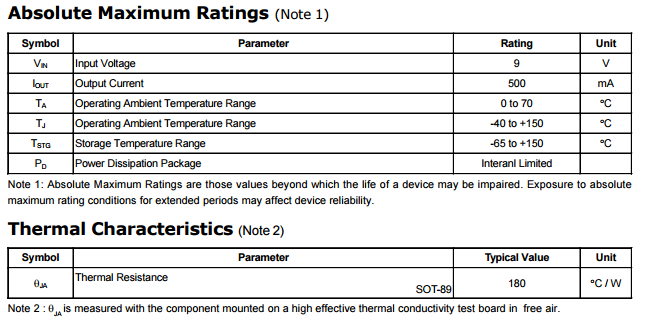

技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！
产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
