CXSU6375是一款用于电池应用的升压开关调节器控制器IC。CXSU6375包括用于驱动NPN晶体管或N-MOS的图腾柱输出级，用于比较反馈放大器输出电压的高精度基准（0.5V）、精密最大占空比控制、具有短路保护功能的可编程软启动和操作和待机模式之间的操作模式控制。
-
"
目录
1.产品概述 2.产品特点 3.应用范围 4.技术规格书下载（PDF文档）
一.产品概述
The CXSU6375 is a boost switching regulator controller IC for battery-used applications. The CXSU6375 includes a totem-pole output stage for driving NPN transistor or N-MOS, high precision reference (0.5V) for comparing output voltage by feedback amplifier, precision maximum duty cycle control, programmable soft start with short circuit protection function and operating mode control between operation and standby mode
二.产品特点
˙Wide Supply Voltage Operating Range: 1.8 to 15V
˙Reference Voltage Precision: 2%
˙Low Current Consumption: 5.5mA in Operation Mode
˙Low Current Consumption: 1μA in Standby Mode
˙High Oscillator Frequency: 1MHz max.
˙Programmable Soft Start Function (SS)
˙Short Circuit Protection Function (SCP)
˙Totem-Pole Output with Adjustable ON / OFF
Current (for NPN Transistors or n-Channel MOSFET)
˙Logic Level Control Stand-by Mode Function
˙Package: SOP-8L (EP),SOP-8L and TSSOP-8L and MSOP-8L
三.应用范围
Ø Digital Camera
Ø PDA
Ø Portable Equipment
四.技术规格书（产品PDF)
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

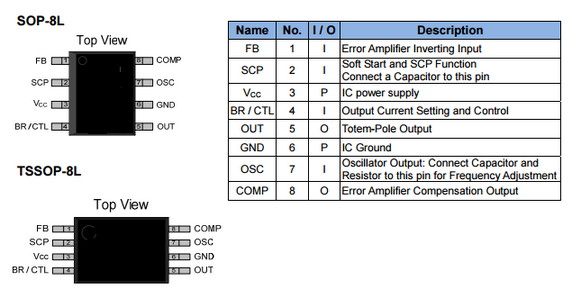

五.产品封装图
六.电路原理图
七.相关芯片选择指南 更多同类产品......
| 非同步升压（BOOST）转换器NON-SYNCHRONOUS STEP-UP (BOOST) CONVERTERS | ||||||||||
| Part No. | VIN | VOUT | Driver | Feedback | Switching | Soft Start | Status | Notes | Package | |
| (Min) | (Max) | (Max) | Current | Voltage | Frequency | |||||
| (V) | (V) | (A) | (V) | (kHz) | ||||||
| CXSU6367 | 3.6 | 20 | 20 | 2 | 0.5 | 320 | External | MP | SOP8 | |
| CXSU6368 | 2.6 | 5.5 | 12 | 1.6 | 1.24 | 640/1200 | External | MP | MSOP8 | |
| CXSU6368H | 2.6 | 5.5 | 12 | 3 | 1.24 | 640/1200 | External | MP | SOP8E DFN8 | |
| CXSU6369 | 2.6 | 5.5 | 12 | 2~2.6 | 0.6 | 1000 | Internal | MP | SOT23-6 | |
| CXSU6370 | 2.7 | 5.5 | 20 | 0.75 | 1.24 | 1200 | Internal | MP | SOT23-5 SOT23-6 | |
| CXSU6371 | 2.6 | 5.5 | 12 | 3.5 | 0.6 | 1000 | Internal | MP | SOP8E DFN8 | |
| CXSU6372 | 2.6 | 5.5 | 9 | 4.5 | 0.6 | 500 | Internal | MP | SOP8E | |
| CXSU6373 | 2.4 | 5.5 | 18 | 5 | 0.6 | 350 | Internal | MP | SOP8E | |
| CXSU6374 | 2.4 | 5.5 | MOSFET | Source -0.105/Sink 0.13 | 0.6 | 550 | Internal | MP | OCP Adjust | SOT23-6 |
| CXSU6375 | 1.8 | 15 | MOSFET | 0.05 | 0.5 | Adjust | External | MP | 75% duty cycle | SOP8 TSSOP8 |
| CXSU6376 | 1.8 | 15 | MOSFET | 0.05 | 0.5 | Adjust | External | MP | 85% duty cycle | SOP8 TSSOP8 |
| CXSU6377 | 2.4 | 5.5 | MOSFET | Source -0.105 Sink 0.13 | 0.6 | 550 | Internal | MP | SO | |
