CXSU63113同步降压变换器是一种具有电流控制方式的高频降压稳压器。可输出1.5A，具有良好的线路和负载调节能力运行时电流仅为130uA，停机时小于1uA。该设备是小型空间和电池供电的应用的理想解决方案，如移动电话和手持设备CXSU63113集成了脉宽调制控制器、电源开关和补偿网络，只需五个部件即可实现1.5A输出开关电源
-
"
目录
产品概述 返回TOP
The CXSU63113 synchronous buck converter is a high frequency step-down voltage regulator with current control mode. It can output 1.5A with excellent line and load regulation. The current is only 130uA at operating and less than 1uA at shutdown. This device is the ideally solution for small space and battery powered consume application, such as cellular phone and Hand-held device. The CXSU63113 integrates PWM controller, power switch and compensation network, required only five components to implement a 1.5A output switching power supply. It has internal fixed 1.5MHz frequency and makes application circuit smaller. The CXSU63113 is available in an adjustable output voltage version. The adjustable version has wide output range from 0.6V to VIN. The CXSU63113 series products are available in a DFN-10L 3X3package
产品特点 返回TOP
• 2.5V to 5.5V Input Range
• 1.5A Output Capability
• High Efficiency up to 95%
• Low Quiescent Current 130uA
• Adjustable Output Voltage from 0.6V to VIN
• 1.5MHz Constant Frequency Operation
• Low Dropout Operation: 100% Duty Cycle
• Under Voltage Lockout, Over Current, Short Current, and Thermal Protection
• Operating Temperature: -40o C to +85°C
• Available in very tiny DFN3X3-10L Package
• RoHS Compliant and 100% Lead(Pb)- Free
应用范围 返回TOP
• Handheld Instruments
• MP3/4 Player
• DSP Core Supplies
• Board Mounted Power Supplies
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

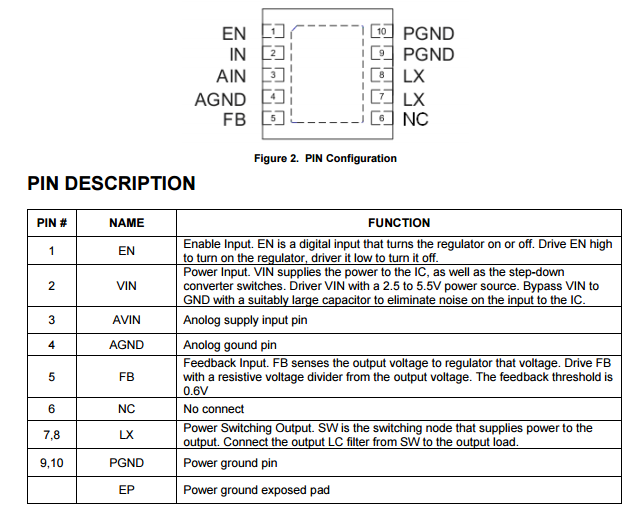

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
DC/DC 同步降压转换器 |
|||||||||
|
PN |
Ilim |
Vin |
Vout(V) |
Fs |
lq |
Temp |
Package |
Description |
|
|
A |
V |
ADJ |
fix |
KHz |
uA |
||||
|
0.6 |
2.5-5.5 |
0.6-Vin |
1.8,3.3 |
1500 |
130 |
lnd |
SOT23-5 |
600mA Synchronous Step-Down DCDC converter, |
|
|
0.6 |
2.5-5.5 |
0.6-Vin |
1.8,3.3 |
1500 |
20 |
lnd |
SOT23-5 |
600mA Synchronous Step-Down DCDC converter |
|
|
0.6 |
2.5-5.5 |
0.6-Vin |
1.8,3.3 |
1500 |
20 |
lnd |
SOT23-5 |
600mA Synchronous Step-Down DCDC converter |
|
|
1.2 |
2.5-5.5 |
0.6-Vin |
- |
1500 |
130 |
Ind |
SOT23-5 |
1.2A Synchronous Step-Down DCDC converter |
|
|
1.2 |
2.5-5.5 |
0.6-Vin |
- |
1500 |
130 |
Ind |
SOT23-5 |
1.2A Synchronous Step-Down DC/DC Converter |
|
|
1.5 |
2.5-5.5 |
0.6-Vin |
- |
1500 |
130/20 |
Ind |
DFN-6 |
1.5A Synchronous Step-Down DCDC converter,pin compatiable with RT8010 |
|
|
1.5 |
2.5-5.5 |
0.6-Vin |
- |
1500 |
130 |
Ind |
DFN-10 |
1.5A Synchronous Step-Down DCDC converter |
|
|
2.5 |
2.5-5.5 |
0.6-Vin |
- |
1500 |
130 |
Vin |
QFN-16 |
2.5A 1.5MHz Synchronous Step-Down DC/DC Converter |
|
|
2.5 |
2.5-5.5 |
0.6-Vin |
- |
1500 |
130 |
Ind |
DFN-10 |
2.5A 1.5MHz Synchronous Step-Down DC/DC Converter |
|
|
2 |
2.5-5.5 |
0.6-Vin |
- |
1500 |
130 |
Ind |
SOP8 |
2A 1.5MHz Synchronous Step-Down DC/DC Converter |
|
|
2 |
2.5-5.5 |
0.6-Vin |
- |
1500 |
130 |
Ind |
DFN-10 |
2A 1.5MHz Synchronous Step-Down DC/DC Converter |
|
|
0.6 |
2.5-5.5 |
0.6-Vin |
- |
4000 |
130 |
Ind |
SOT23-5 |
4MHz 600mA Synchronous Step-Down DCDC converter |
|
|
1.5 |
2.5-5.5 |
0.6-Vin |
- |
1500 |
130 |
Ind |
SOT23-6 |
1.5A 1.5MHz Synchronous Step-Down DC/DC Converter |
|
|
2 |
2.5-5.5 |
0.6-Vin |
1500 |
130 |
lnd |
DFN-10 |
2A 1.5MHz Synchronous Step-Down DC/DC Converter |
||
|
1.0X2 |
2.5-5.5 |
0.6-Vin |
- |
1500 |
130 20 |
lnd |
DFN-12 |
||
|
1x2 |
2.5-5.5 |
0.6-vi n |
- |
1500 |
20 |
lnd |
DFN-10 |
Two Channel Integrated Power Management IC 2 Buck (1A) |
|
|
2 |
2.5-5.5 |
0.6-vi n |
- |
1500 |
20 |
lnd |
DFN-10 |
2A 1.5MHz Synchronous Step-Down DC/DC Converter |
|
|
1.2 |
2.5-5.5 |
0.6-Vin |
- |
1500 |
130 |
Ind |
SOT23-5 |
1.2A Synchronous Step-Down DC/DC Converter |
|
|
2.5 |
4.75-20 |
0.925-14 |
- |
340 |
1300 |
Ind |
SOP8 |
2.5A Synchronous Step-Down Converter with Fast Transient Response |
|
|
1 |
2.5-5.5 |
0.6-vin |
1.8,3.3 |
1500 |
130 |
Ind |
SOT23-5 |
1A Synchronous Step-Down DCDC converter |
|
