CXAR41114 CXAR41114A是一种桥接捆绑负载（BTL）音频功率放大器，专门为内置扬声器的低压应用开发。CXAR41114 CXAR41114a在5V电源下工作，可在整个声带频率中以10%THD+N的频率向BTL 3W负载提供3.3W的连续功率。虽然该设备的特点是20千赫，但其操作是优化的窄带应用，如无线通信。在大多数应用中，BTL配置消除了对输出端外部耦合电容的需求，这对于小型电池供电设备尤为重要。该设备的特点是功率敏感的应用关闭模式与特殊的depop电路，以消除扬声器噪音时退出关闭模式。CXAR41114 CXAR41114A有SOP-8、SOP-8P或MSOP-8P。
·工作电压：2.5V-5.5V
·桥梁捆绑荷载（BTL）模式运行
·电源电流–VDD=5V时，I DD=7mA
·低关断电流–I DD=0.1毫安
·低失真
–2.5W，VDD=5V，BTL，RL=3W，THD+N=0.1%
–2.1W，VDD=5V，BTL，RL=4W，THD+N=0.1%
·1%THD+N时的输出功率
–2.6W，VDD=5V，BTL，RL=3W时
–2.3W，在VDD=5V时，BTL，在10%THD+N时，RL=4W
-3.3W，VDD=5V，BTL，RL=3W
–VDD=5V时为2.7W，BTL，RL=4W
·Depop电路集成
·热关机保护和过电流保护电路
·高电源电压纹波抑制
·表面贴装包装
-
[ CXAR41114/A ]
目录
7.相关产品
产品概述 返回TOP
The CXAR41114/A is a bridged-tied load (BTL) audio power amplifier developed especially for low-voltage applications where internal speakers. Operating with a 5V supply, the CXAR41114/A can deliver 3.3W of continuous power into a BTL 3W load at 10% THD+N throughout voice band frequencies. Although this device is characterized out to 20kHz, its operation is optimized for narrow band applications such as wireless communications. The BTL configuration eliminates the need for external coupling capacitors on the output in most applications, which is particularly important for small battery-powered equipment. This device features a shutdown mode for power sensitive applications with special depop circuitry to eliminate speaker noise when exiting shutdown mode. The CXAR41114/A are available in a SOP-8, SOP-8P or MSOP-8P.
产品特点 返回TOP
· Operating Voltage : 2.5V-5.5V
· Bridge-Tied Load (BTL) Mode Operation
· Supply Current – I DD =7mA at VDD =5V
· Low Shutdown Current – I DD =0.1mA
· Low Distortion
– 2.5W, at VDD =5V, BTL, RL =3W, THD+N=0.1%
– 2.1W, at VDD =5V, BTL, RL =4W, THD+N=0.1%
· Output Power at 1% THD+N
– 2.6W, at VDD =5V, BTL, RL =3W
– 2.3W, at VDD =5V, BTL, RL =4W at 10% THD+N
–3.3W at VDD =5V, BTL, RL =3W
–2.7W at VDD =5V, BTL, RL =4W
· Depop Circuitry Integrated
· Thermal Shutdown Protection and Over-Current Protection Circuitry
· High SupplyVoltage Ripple Rejection
· Surface-Mount Packaging
– MSOP-8P (with Enhanced Thermal Pad)
–SOP-8P (with Enhanced Thermal Pad)
–SOP-8
· Lead Free and Green Devices Available (RoHS Compliant)
应用范围 返回TOP
· Mobil Phones
· PDAs
· Portable Electronic Devices
· Desktop Computers
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

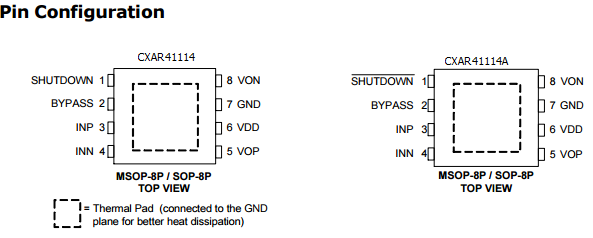

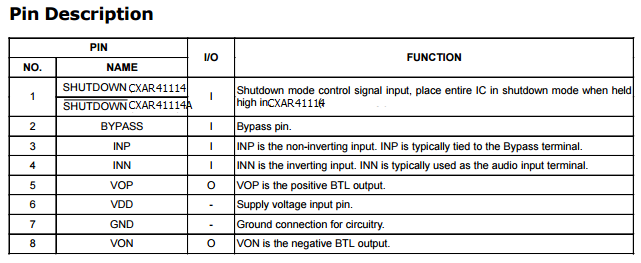

产品封装图 返回TOP

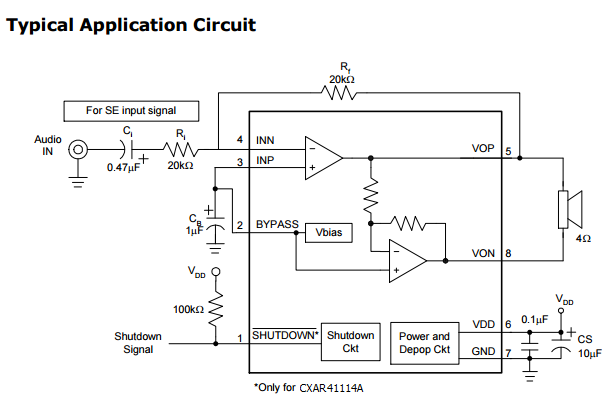

电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
Audio Products > Speaker Amplifier |
||||||||||||||||||
|
Part_No |
Package |
Cla -ss |
VDD Voltage (V) |
IDD, Supply Current (mA) |
TSTAR -UP (uS) |
Out. Pow. RL =4(W) |
Output Power RL=8W (W) |
Head- phon Mode Output Powe RL=32W(mW) |
Total Harm. Dist. Plus Noise (%) |
Pow. Sup. Rej. Ratio dB |
Output Noise (uV) |
Sign. to nois Ratio dB |
Output Offset Voltage (mV) |
Digit. Input |
Head phone |
AGC Pow. limit |
Mute |
|
|
min |
max |
|||||||||||||||||
|
SOP-8 |
AB |
3 |
5.5 |
1 |
0.4 |
1.5 |
0.9 |
NA |
0.15 |
74 |
28 |
NA |
20 |
N |
N |
N |
N |
|
|
MSOP8/P/ TDFN3x3-8 |
AB |
2 |
5.5 |
3 |
0.1 |
2.1 |
1.3 |
NA |
0.05 |
80 |
15 |
105 |
5 |
N |
N |
N |
N |
|
|
WLCSP1.5 x1.5-9A TDFN3x3-8 DFN3x3-8 |
D |
2 |
5.5 |
2 |
NA |
2.45 |
1.45 |
NA |
0.1 |
80 |
100 |
90 |
25 |
N |
N |
N |
N |
|
|
WLCSP1.5 x1.5-9A |
D |
2 |
5.5 |
2 |
NA |
2.45 |
1.45 |
NA |
0.1 |
80 |
100 |
90 |
25 |
N |
N |
N |
N |
|
|
WLCSP1.5 x1.5-9A TDFN3x3-8 |
D |
2 |
5.5 |
3 |
NA |
2.2 |
1.3 |
NA |
0.05 |
70 |
100 |
89 |
20 |
N |
N |
N |
N |
|
|
WLCSP1.2 x1.2-9 TDFN3x3-8 |
D |
2 |
5.5 |
2 |
0 |
2.45 |
1.3 |
NA |
0.1 |
75 |
55 |
90 |
1 |
N |
N |
N |
N |
|
|
WLCSP1.5 x2-12 TQFN4x4-16 |
G |
3 |
5.2 |
4 |
0.6 |
3.6 |
2 |
N/A |
0.06 |
70 |
49 |
97.5 |
2 |
N |
N |
N |
N |
|
|
TSSOP24P TSSOP20P TQFN3x2-16 |
AB |
3 |
5.5 |
6 |
NA |
1.7 |
1.1 |
90 |
0.04 |
85 |
15 |
105 |
5 |
N |
Y |
N |
N |
|
|
TQFN4x4-16 TQFN3x3-16 |
AB |
3 |
5.5 |
6 |
0.7 |
2 |
1.3 |
52 |
0.06 |
61 |
22 |
93 |
10 |
N |
Y |
N |
N |
|
|
TQFN5 x5-20A |
AB |
2 |
5.5 |
6 |
0.1 |
2.1 |
1.3 |
NA |
0.05 |
80 |
15 |
105 |
5 |
N |
N |
N |
N |
|
|
TQFN4x4-28 |
AB |
5 |
5.5 |
18 |
NA |
1.9 |
1.2 |
120 |
0.15 |
70 |
80 |
90 |
10 |
N |
Y |
N |
N |
|
|
TSSOP-28P TQFN5x5-28 |
AB |
5 |
5.5 |
18 |
NA |
1.9 |
1.2 |
120 |
0.15 |
70 |
80 |
90 |
10 |
N |
Y |
N |
N |
|
|
TQFN5 x5-32A |
AB |
5 |
5.5 |
9 |
0 |
1.9 |
1.3 |
120 |
0.07 |
75 |
22 |
100 |
5 |
N |
Y |
N |
N |
|
|
TQFN5 x5-32 |
AB |
5 |
5.5 |
9 |
0 |
1.9 |
1.3 |
120 |
0.07 |
75 |
22 |
100 |
5 |
N |
Y |
N |
N |
|
|
TQFN5 x5-32A |
AB |
5 |
5.5 |
9 |
0 |
1.9 |
1.3 |
120 |
0.07 |
75 |
22 |
100 |
5 |
N |
Y |
N |
N |
|
|
SOP-16P |
AB |
5 |
5.5 |
9 |
1 |
1.8 |
1.3 |
95 |
0.07 |
60 |
20 |
95 |
5 |
N |
Y |
N |
N |
|
|
DIP16/A |
AB |
5 |
5.5 |
9 |
NA |
2 |
1.3 |
95 |
0.07 |
60 |
20 |
95 |
5 |
N |
Y |
N |
N |
|
|
DIP16/A |
AB |
5 |
5.5 |
9 |
NA |
2 |
1.3 |
95 |
0.07 |
60 |
20 |
95 |
5 |
N |
Y |
N |
N |
|
|
DIP16/A |
AB |
3 |
5.5 |
9 |
1.6 |
2 |
1.3 |
95 |
0.09 |
60 |
20 |
95 |
5 |
N |
Y |
N |
N |
|
|
TSSOP-24P |
AB |
5 |
5.5 |
14 |
NA |
1.9 |
1.1 |
90 |
0.05 |
60 |
20 |
95 |
5 |
N |
Y |
N |
N |
|
|
TQFN3x3-16 |
D |
2 |
5.5 |
3 |
0 |
2.3 |
1.34 |
NA |
0.15 |
74 |
100 |
85 |
5 |
N |
N |
N |
N |
|
|
SOP-16P |
D |
3 |
5.5 |
8 |
1.6 |
2.4 |
1.4 |
NA |
0.1 |
55 |
75 |
90 |
20 |
N |
N |
N |
Y |
|
|
SOP-24 DIP-24 QFN4x4-20A |
D |
3 |
5.5 |
7 |
1.6 |
2.2 |
1.3 |
60 |
0.1 |
70 |
75 |
82.5 |
5 |
N |
Y |
A |
Y |
|
|
SOP-16 QDN4x4-20A |
D |
3 |
5.5 |
8 |
1.6 |
2.4 |
1.1 |
NA |
0.1 |
70 |
75 |
85 |
10 |
N |
N |
A |
Y |
|
|
SSOP24/ QFN4x4-20A |
D |
3 |
5.8 |
8 |
1.4 |
2.4 |
1.7 |
70 |
0.1 |
80 |
50 |
92 |
5 |
N |
Y |
A |
Y |
|
|
SSOP24/P SOP-18 QFN4x4-20A |
D |
3 |
5.5 |
5 |
1.2 |
2.3 |
1.3 |
NA |
0.1 |
70 |
80 |
85 |
20 |
N |
N |
A |
Y |
|
|
SSOP-24/P |
D |
3 |
5.5 |
5 |
1.2 |
2.25 |
1.3 |
68 |
0.06 |
60 |
80 |
78 |
20 |
N |
Y |
A |
Y |
|
|
TQFN5x5-32 |
D |
8 |
17 |
18 |
1 |
NA |
12 |
NA |
0.07 |
65 |
230 |
NA |
20 |
N |
N |
N |
Y |
|
|
TSSOP28P QFN4x4-28 |
D |
8 |
26 |
20 |
0 |
NA |
7 |
NA |
0.1 |
NA |
120 |
95 |
15 |
N |
N |
P |
N |
|
|
TSSOP28P QFN4x4-28 |
D |
8 |
26 |
20 |
0 |
NA |
8 |
NA |
0.1 |
NA |
120 |
95 |
15 |
N |
N |
P |
N |
|
|
TSSOP28P QFN4x4-28 |
D |
8 |
26 |
20 |
0 |
NA |
12 |
0.1 |
NA |
65 |
120 |
95 |
15 |
N |
N |
P |
N |
|
|
QFN5.2 x6.2-32 |
D |
8 |
17 |
18 |
1 |
NA |
14 |
NA |
0.05 |
65 |
250 |
NA |
20 |
N |
N |
N |
Y |
|
|
TSSOP28P QFN4x4-28 |
D |
8 |
26 |
20 |
0 |
NA |
15 |
NA |
0.1 |
65 |
160 |
95 |
15 |
N |
N |
P |
N |
|
|
TSSOP28P QFN4x4-28B |
D |
5 |
22 |
17 |
0 |
NA |
15 |
NA |
0.05 |
65 |
130 |
95 |
5 |
N |
N |
P |
N |
|
|
TSSOP28P QFN4x4-28B |
D |
5 |
26 |
17 |
0 |
NA |
17 |
NA |
0.05 |
70 |
120 |
95 |
5 |
N |
N |
P |
N |
|
|
TQFN7 x7-48/P |
D |
9 |
14 |
20 |
NA |
NA |
7.5 |
NA |
0.2 |
85 |
250 |
85 |
20 |
N |
N |
N |
N |
|
|
SOP8/P MSOP8P |
AB |
3 |
5.5 |
7 |
0.4 |
2.3 |
1.3 |
NA |
0.04 |
60 |
28 |
NA |
NA |
N |
N |
N |
N |
|
