CXAR4173是一种立体声、差分输入、单电源和无盖线路驱动器，可在SOP-14和TSSOP-14软件包中提供。CXAR4173是接地参考输出，不需要输出电容器进行直流闭锁。消除输出电容器的优点是节省成本，消除元件高度，提高低频响应。建议使用±1V/V至±10V/V的外部增益设置。高PSRR提高了对噪声和射频校正的免疫力。CXAR4173具有Depop解决方案的关机和欠压检测功能。CXAR4173能够在3.3V电压下将2.1Vrms驱动至2.5kW负载，并提供短路和热保护
·工作电压：3V~3.6V
·差动输入
·接地参考输出
-无需输出电容器（用于直流闭锁）
-节省PCB空间
-降低BOM成本
-改善低频响应
·低噪声和THD+N-SNR>108dB
-噪音<8mVrms
-20Hz~20kHz时THD+N<0.02%
·在VDD=3.3V时输出电压摆幅可达2.1Vrms/Ch，在217Hz时输出电压摆幅可达2.5kW，PSRR:80dB
·快速启动时间：500ms
·集成De-Pop电路
·热和短路
-电路保护
-
[ CXAR4173 ]
目录
7.相关产品
产品概述 返回TOP
The CXAR4173 is a stereo, differential input, single supply, and cap-free line driver, which is available in SOP-14 and TSSOP-14 packages. The CXAR4173 is ground-reference output, and doesn’t need the output capacitors for DC blocking. The advantages of eliminating the output capacitor are saving the cost, eliminating component height, and improving the low frequency response. The external gain setting is recommended using from ±1V/V to ±10V/V. High PSRR provides increased immunity to noise and RF rectification. CXAR4173 has shutdown and under-voltage detector function for Depop solution. The CXAR4173 is capable of driving 2.1Vrms at 3.3V into 2.5kW load, and provides short-circuit and thermal protection
产品特点 返回TOP
· Operating Voltage: 3V~3.6V
· Differential Input
· Ground Reference Output
- No Output Capacitor Required (for DC Blocking)
- Save the PCB Space
- Reduce the BOM Costs
- Improve the Low Frequency Response
· Low Noise and THD+N - SNR > 108dB
- Noise < 8mVrms
- THD+N < 0.02% at 20Hz~20kHz
· Output Voltage Swing Can Reach 2.1Vrms/Ch into 2.5kW at VDD=3.3V · High PSRR: 80dB at 217Hz
· Fast Start-up Time: 500ms
· Integrate the De-Pop Circuitry
· Thermal and Short
-Circuit Protection
· Surface-Mount Packaging
- SOP-14 - TSSOP-14
· Lead Free and Green Devices Available (RoHS Compliant)
应用范围 返回TOP
· Set-Top Boxes
· CD/DVD Players
· LCD TVs
· HTIBs (Home Theater in Box)
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

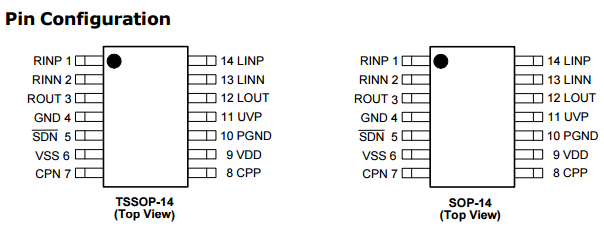

产品封装图 返回TOP

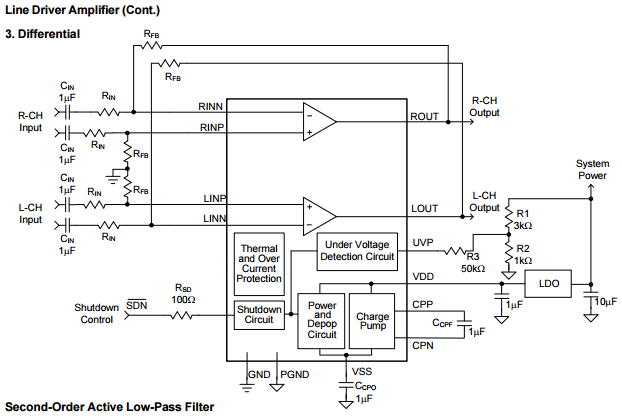

电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
Audio Products > Headphone Amplifier |
||||||||||||
|
Part_No |
Package |
VDD Voltage (V) |
IDD, Supply Current (mA) |
TSTART-UP(uS) |
Output Power RL=32W (mW) |
Output Power RL=2.5KW (mW) |
Total Harmonic Distortion Plus Noise (%) |
Power Supply Rejection Ratio (dB) |
Output Noise (uV) |
Signal to Noise Ratio (dB) |
Output Offset Voltage (mV) |
|
|
min |
max |
|||||||||||
|
TSSOP14/SOP14 |
3 |
3.6 |
10 |
500 |
20 |
2.1 |
0.001 |
80 |
8 |
108 |
5 |
|
|
TSSOP14/SOP14 |
2.3 |
5.5 |
10 |
500 |
40 |
2.1 |
0.001 |
80 |
8 |
108 |
5 |
|
|
TQFN4x4-20A/ TSSOP16/SOP14 |
2.3 |
4.5 |
5 |
500 |
NA |
2.1 |
0.002 |
90 |
10 |
105 |
8 |
|
|
TQFN4x4-20B/TSSOP-16 |
2.3 |
4.5 |
5 |
16000 |
NA |
2.1 |
0.003 |
80 |
15 |
102 |
8 |
|
|
TQFN4x4-20B/TSSOP-16/TQFN3x3-16 |
1.8 |
5.5 |
2 |
120 |
150 |
NA |
0.03 |
82 |
15 |
95 |
5 |
|
|
TSSOP-16 |
||||||||||||
|
WLCSP-16 |
2.4 |
5.5 |
2.5 |
4000 |
22 |
NA |
0.02 |
90 |
7 |
95 |
0.5 |
|
|
WLCSP2x2-16 |
1.8 |
4.5 |
5 |
120 |
145 |
NA |
0.02 |
75 |
15 |
100 |
5 |
|
|
WLCSP1.6x1.6-12/TDFN3x3-12 |
2.3 |
5.5 |
1 |
4000 |
60 |
NA |
0.03 |
80 |
27 |
95 |
8 |
|
|
WLCSP1.6x 1.6-12 |
2.3 |
5.5 |
1 |
4000 |
60 |
NA |
0.03 |
80 |
27 |
95 |
8 |
|
|
MSOP-10P |
2.3 |
5.5 |
10 |
500 |
60 |
2.1 |
0.001 |
80 |
8 |
108 |
5 |
|
