产品概述 返回TOP
产品特点 返回TOP
· Single Phase Full Wave Fan Driver
· Low Supply Current
· Built-In Variable Speed Function
· Include Hall Bias Circuit
· Built-In Lock Protection and Auto Restart Function
· FG Output and RD Output Signal available
· Built-In Current Limit Circuit
· Built-In Thermal Protection Circuit

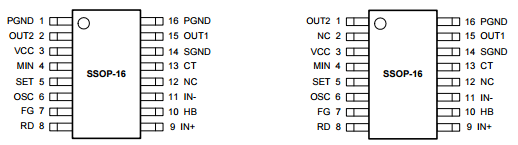

· SSOP-16 Package
· Lead Free and Green Devices Available (RoHS Compliant)
应用范围 返回TOP
· Variable Speed Control Fan
技术规格书(产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们,还可以获得免费样品以及技术支持!
Fan Motor Driver > Notebook PC Application | ||||||||||||
Part_No | Main App. Fields | Package | Supply Voltage (V) | Output Current (max)(mA) | Phase | FG | RD | Lock& Restart Time | Speed Control | HB Output | Status | |
min | max | |||||||||||
NB Motor | MSOP10 | 2 | 5.5 | 1000 | 1 | Yes | No | CT | Direct PWM | Yes | Now | |
NB Motor | MSOP8 | 2.3 | 5.5 | 1000 | 1 | Yes | No | Internal | Direct PWM | No | Now | |
NB Motor | MSOP8 | 2 | 5.5 | 1000 | 1 | Yes | No | Internal | - | Yes | Now | |
NB Motor | MSOP10 | 2.2 | 5.5 | 1000 | 1 | Yes | No | Internal | - | No | Now |
Fan Motor Driver > Desktop PC Application | |||||||||||||
Part_No | Main App. Fields | Pack. | Supply Voltage (V) | Output Current (max)(mA) | Phase | FG | RD | Lock& Restart Time | Speed Control | Regul ator | HB Output | Status | |
min | max | ||||||||||||
NB Motor | SSOP16 | 4.5 | 15 | 1000 | 1 | Yes | Yes | CT | PWM | No | Yes | Now |
