CXHA3175 CXHA3176是一个温度传感器，Delta Sigma模数转换器，带SMBus接口的数字过温探测器。主机可以随时查询CXHA3175 CXHA3176读取温度。当温度超过可编程限制时，开漏超温停机（O.S.）输出激活。该引脚可以在“比较器”或“中断”模式下工作。主机可以对温度报警阈值（TOS）和报警条件消失的温度（THYST）进行编程。此外，主机可以读回CXHA3175、CXHA3176的TOS和THYST寄存器的内容。传感器在比较器模式下通电，默认阈值为50°C至45°C THYST。对于CXHA3175 CXHA3176-1和80°C TOS，对于CXHA3175 CXHA3176-2为75°C THYST。
·SMBus接口
可编程跳闸点（TOS）和滞后（THYST）
单独的开漏输出引脚在输出端用作中断或比较器
·注册回读功能
·电源默认值允许独立操作作为恒温器
·关机模式，最大限度地降低功耗
·最多可将8个CXHA3175 CXHA3176s连接到单个总线
-
[ CXHA3175 ]
目录
7.相关产品
产品概述 返回TOP
The CXHA3175 CXHA3176 is a temperature sensor, Delta-Sigma analog-to-digital converter, and digital over- temperature detector with SMBus interface. The host can query the CXHA3175 CXHA3176 at any time to read temperature. The open-drain Over temperature Shutdown (O.S.) output becomes active when the temperature exceeds a programmable limit. This pin can operate in either “Comparator” or “Interrupt” mode. The host can program both the temperature alarm threshold (TOS) and the temperature at which the alarm condition goes away (THYST). In addition, the host can read back the contents of the CXHA3175 CXHA3176's TOS and THYST registers. The sensor powers up in Comparator mode with default thresholds of 50°C TOS 45°C THYST. for CXHA3175 CXHA3176-1 and 80°C TOS , 75°C THYST for CXHA3175 CXHA3176-2.
产品特点 返回TOP
„ SMBus interface
„ Programmable Trip Point (TOS) and Hysteresis (THYST)
„ Separate open-drain output pin operates as interrupt or comparator at output
„ Register readback capability
„ Power up defaults permit stand-alone operation as thermostat
„ Shutdown mode to minimize power consumption
„ Up to 8 CXHA3175 CXHA3176s can be connected to a single bus
应用范围 返回TOP
„ System Thermal Management
„ Personal Computers
„ Office Electronics
„ Electronic Test Equipment
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

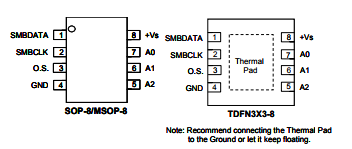

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
Temperature Transducer |
|||||||||
|
Part NO. |
VCC(V) min. |
VCC(V) max. |
Sensor Gain |
VOUT (V) |
Sensor Range(°C) |
Accuracy (°C) |
Isupply (μA) |
Note |
Package |
|
2 |
5.5 |
-11.6 |
2.5~0.3 |
-55~130 |
±1 |
18 |
Negative temperature coefficient output |
TO126F/SC70-5(SOT353) |
|
|
Digital Interface Temperature Sensor |
|||||||||
|
Part NO. |
VCC(V) min. |
VCC(V) max. |
Remote |
Local |
Interface |
Slave Address |
Accuracy (°C) |
Note |
Package |
|
3 |
5.5 |
N |
1 |
SMBus |
1001XXX |
±2 |
8 slave addresses 9 bits resolution |
SOP8/MSOP8/TDFN3X3-8 |
|
|
3 |
5.5 |
N |
1 |
SMBus |
1001XXX |
±1 |
8 slave addresses 11 bits resolution |
SOP8/MSOP8/TDFN3X3-8 /TDFN3X2-8 |
|
|
3 |
3.6 |
N |
1 |
SMBus |
1001000 |
±1 |
-10°C to 80°C±1°C(max) |
SOT23-5 |
|
|
3 |
5.5 |
1 |
1 |
SMBus |
1001100 |
±1 |
Support transitor mode |
SOP8/MSOP8 |
|
|
3 |
5.5 |
1 |
1 |
SMBus |
1001100 |
±1 |
Remote up to 160°C |
SOP8/MSOP8/TDFN3X3-8 |
|
|
3 |
5.5 |
N |
1 |
SMBus |
1001100 |
±3 |
Local temperature sensor |
MSOP8 |
|
|
3 |
5.5 |
2 |
1 |
SMBus |
1001100 |
±1 |
Support transistor mode |
MSOP10 |
|
|
3 |
5.5 |
1 |
1 |
SMBus |
1001100 |
±1 |
SMBus inputs are built-in switch to prevent reverse leakage |
SOP8/MSOP8/TDFN3X3-8 |
|
|
3 |
5.5 |
1 |
1 |
SMBus |
1001100 |
±1 |
Griffin |
SOP8 MSOP8 |
|
|
Thermal Switch |
|||||||||
|
Part NO. |
VCC(V) min. |
VCC(V) max. |
Sensor |
Hysterisis VCCGND |
Output Type |
Accuracy (°C) |
Isupply (μA) |
Note |
Package |
|
4 |
5.5 |
-- |
10 or 30 |
Open Drain |
±3.5 |
33 |
N/A |
SOT23-5 |
|
|
3 |
5.5 |
Remote |
10 or 2 |
Open Drain |
±3 |
-- |
OT is set by SET0 and SET1, Thermal diode needed |
SOP8/MSOP8 |
|
|
2.7 |
5.5 |
Local |
10 or 30 |
Open Drain |
±3.5 |
33 |
OT is set by an external resistor |
SOT23-5/TDFN2X2-8 |
|
|
2.7 |
5.5 |
Local |
10 or 2 |
Open Drain |
±3.5 |
33 |
OT is set by an external resistor |
TDFN2X2-8/ADFN1.5X1.5-6/SOT23-5/SOT23-6 |
|
|
2.7 |
5.5 |
Remote |
Set by Resistor |
Open Drain |
-- |
70 |
8 Remote SensorsThermistor is needed |
TQFN3X3-16 |
|
|
2.7 |
5.5 |
Remote |
Set by Resistor |
Open Drain |
-- |
42 |
2 Remote SensorsThermistor is needed |
SOT23-8/AQFN1.5X1.5-8 |
|
