CXCO4333是一种适用于TFT-LCD行驱动器的9通道电平移位器。该装置将数字输入信号电平转换为几乎等于其输出电源电压的输出电压。CXCO4333有3个电源：车辆识别号、车辆识别号和车辆识别号。VIN为低压电源，电压范围为2.6V至5.5V；VGH为正高压电源，电压范围为7V至40V；VGL1为负高压电源，电压范围为0V至-30V；CKO_1~CKO_6为带栅极遮蔽功能的电平移位器输出。STO和LCO_1~LCO_2是无栅极阴影功能的电平移位器输出。CXCO4333具有广泛的保护功能，包括UVLO、OTP。该设备在-40°C到+85°C的温度范围内工作。CXCO4333有一个5mmx5mm的32引线QFN封装。
输入电源范围：2.6V~5.5V
保护功能
输入欠压锁定（UVLO）
热过载保护（150°C）
9通道电平变换器
+40V最高电压等级
-30V最低电压水平
最大700ns上升/下降时间
500毫安峰值电流
20毫安持续电流
门阴影功能。
-
[ CXCO4333 ]"
目录
7.相关产品
产品概述 返回TOP
The CXCO4333 is a 9-channel level shifter suitable for TFT-LCD row drivers. This device will level shift a digital input signal to an output voltage nearly equal to its output supply voltage. The CXCO4333 has 3 supplies: VIN, VGH and VGL1. VIN is low voltage supply with a voltage range from 2.6V to 5.5V. VGH is positive high voltage supply with a voltage range from 7V to 40V. VGL1 is negative high voltage supply with a voltage range from 0V to -30V. CKO_1~CKO_6 are level shifter outputs with gate shading function. STO and LCO_1~LCO_2 are level shifter outputs without gate shading function. The CXCO4333 features extensive protection functions that include UVLO, OTP. This device operates over the temperature range from -40°C to +85°C. The CXCO4333 is available in a 5mmx5mm, 32-lead QFN package.
产品特点 返回TOP
„ Input Supply Range: 2.6V~5.5V
„ Protection Function
Š Input Under Voltage Lockout (UVLO)
Š Thermal Overload Protection (150°C)
„ 9-Channel Level Shifter
Š +40V Highest Voltage Level
Š -30V Lowest Voltage Level
Š Maximum 700ns Rising/Falling Time
Š 500mA Peak Current
Š 20mA Continuous Current
Š Gate Shading Function.
„ 32-pin, QFN (5mmx5mm) Package
„ RoHS Compliant
应用范围 返回TOP
„ LCD Monitor Panel
„ LCD TV panel
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

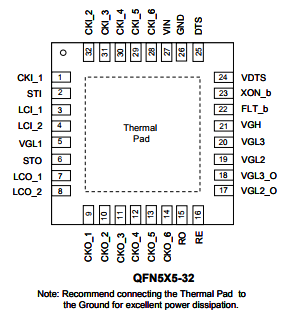

产品封装图 返回TOP
