CXSD62302是一个同步降压DC/DC转换器提供宽4.5V至21V输入电压范围和2A连续负载电流能力。CXSD62302故障保护包括逐周电流限制、UVLO、输出过电压保护和热关机。可调软启动功能可防止启动时出现浪涌电流。此设备使用当前模式提供快速瞬态响应的控制方案。内部的
补偿功能减少外部补偿组件简化了设计过程。在关机模式下，电源电流小于1μA。
-
"
目录
7.相关产品
产品概述 返回TOP
The CXSD62302 is a synchronous step -down DC/DC converter
that provides wide 4.5V to 21V input voltage range and 2A
continuous load current capability.The CXSD62302 fault protection
includes cycle -by-cycle current limit, UVLO, output overvoltage
protection and thermal shutdown. The adjustable soft-start function prevents inrush current at turn-on. This device uses current mode
control scheme which provides fast transient response. nternal
compensation function reduces external compensation components
and simplifies the design process. In shutdown mode, the supply
current is less than 1μA.The CXSD62302 is available in SOT-23-6 package
and provides good thermal conductance.
产品特点 返回TOP
High Efficiency up to 94%
Low Rds(on) Integrated Power MOSFET
Internal Compensation Function
Wide Input Voltage Range: 4.5V to 21V
Adjustable Output Voltage from 0.8V to 17.85V
2A Output Current
Fixed 600KHz Switching Frequency
Current Mode Operation
Cycle-by-Cycle Current Limit
Over-Temperature Protection with Auto Recovery
Output Overvoltage Protection
Under Voltage Lockout
<1μA Shutdown Current
SOT-23-6 Package
应用范围 返回TOP
STB (Set-Top-Box)
LCD Display, TV
Distributed Power System
Networking, XDSL Modem
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

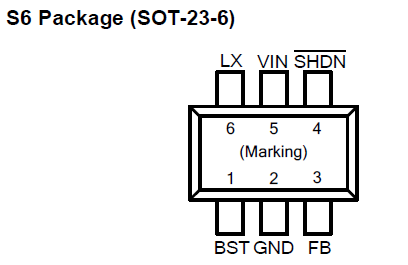

产品封装图 返回TOP

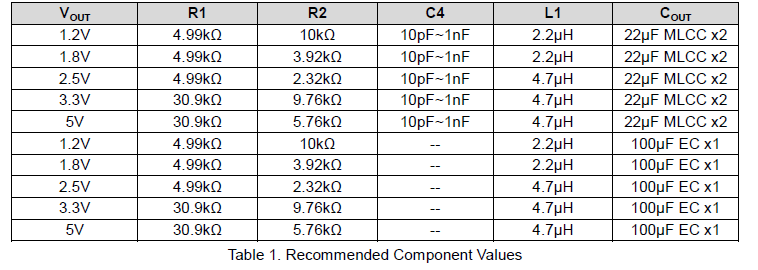

电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
DC/DC降压转换器 |
|||||
|
型号 |
输入电压 |
输出电压 |
输出电流 |
封装 |
|
|
8V~30V |
1.2-16V |
2A |
93% |
SOP8 |
|
|
2.5 v |
0.6~5.5 v |
800mA |
94% |
DFN3*3-10L |
|
|
5V~16V |
1.2V~16V |
2A |
92% |
SOP-8L |
|
|
2.3V~6V |
0.6V~6 |
1300MA |
96% |
SOT23-5 |
|
|
2.3V~5.5V |
0.6V~5.5 |
600mA |
96% |
SOT23-5 |
|
|
4.5 v~21 v |
0.8V~17.85V |
2A |
94% |
SOT-23-6 |
|
|
2~6v |
0.6V |
800mA |
96% |
SOT23-5 |
|
|
6.5 |
1.5V~5.0V |
300mA |
96% |
SOT23-3、SOT89-3 |
|
