CXSD62465系列是超低输出电压线性N-FET控制器，旨在简化笔记本电脑的电源管理两个版本都具有0.5V的参考电压，精度为±2%，提供输出电压的严格调节、启用控制、开漏功率良好信号、欠压保护和软启动
-
[ 产品资料下载 ]
目录
7.相关产品
产品概述 返回TOP
The CXSD62465 series are ultra low output voltage linear N-FET controllers designed to simplify power management for notebook computers. Both voltage adjustable (CXSD62465-ADJ) version and voltage fixed (CXSD62465-XXX) version are available for SOT23-6 package. The output voltage can be adjusted from 0.5V to 2.5V for CXSD62465-ADJ. And there are four fixed voltage (1.05V, 1.35V, 1.5V, 1.8V) available for CXSD62465-XXX. Both versions feature a 0.5V reference voltage with ±2% accuracy providing tight regulation of the output voltage, enable control, open drain power good signal, under-voltage protection and soft start. The GCXSD62465 XXX features additional output voltage discharge function during shutdown.
产品特点 返回TOP
„ 0.5V±1.5% Reference Voltage
„ Adjustable Output Voltage Down to 0.5V
„ MLCC and POSCAP Stable
„ Enable Control
„ Power Good Signal Output
„ Under Voltage Short Circuit Protection
„ Drive N-Channel MOSFETs
„ Output Voltage Discharge (CXSD62465-XXX)
„ SOT-23-6 Package
应用范围 返回TOP
„Notebook or Desknote Computers
„ Motherboards
„ Graphic Cards
„ Ultra-Low-Dropout Voltage Regulators
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！
产品封装图 返回TOP

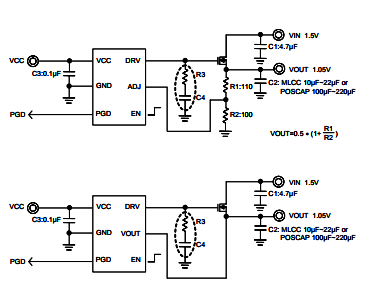

电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品....
|
Dual Output |
||||||||||
|
Part NO. |
Vin(V min. |
Vin(V max. |
IOUT (A) |
VOUT (V) |
Dropout @IOUT(V |
EN |
Dis- charge |
IQ (μA) |
Note |
Package |
|
2.5 |
6 |
0.3 |
Programmable |
0.21 |
H |
Y |
85 |
MLCC |
TDFN2X2-8 |
|
|
2.5 |
6 |
0.3 |
VOUT1=1.8/2.5/2.8/ 2.85/3,VOUT2=1.8/ 2.8/2.85/3/3.3 |
0.21 |
H |
Y |
210 |
MLCC |
TSOT23-6/SOT23-6 TDFN2X2-8/TDFN3X3-8 |
|
|
2.5 |
6 |
0.3 |
VOUT1/2=1.8/2.5/ 2.8/3/3.3 |
0.21 |
H |
Y |
210 |
MLCC |
TSOT23-6 |
|
|
2.5 |
6 |
0.3 |
VOUT1=1.2/1.8/2.6/3 /3.3,VOUT2=1.8/2.85 /3.3 |
0.21 |
H |
Y |
60 |
MLCC |
WLCSP2X3-6/SOT-23-6 |
|
|
2.5 |
6 |
0.3 |
VOUT1=1.2~3.3 VOUT2=1.5~3.3 |
0.21 |
HPullLow |
Y |
60 |
MLCC |
TDFN1.6X1.6-6/TSOT-23-6/ADFN1.5X1.5-6 |
|
|
2.5 |
6 |
0.3 |
VOUT1=1.2~3.3 VOUT2=1.5~3.3 |
0.21 |
H |
Y |
60 |
MLCC |
TDFN1.6X1.6-6/TSOT-23-6/TDFN2X2-8 |
|
|
Special Functions |
||||||||||
|
Part NO. |
Vin(V min. |
Vin(V max. |
IOUT (A) |
VOUT (V) |
Dropout @IOUT(V |
EN |
Dis- charge |
IQ (μA) |
Note |
Package |
|
4.5 |
5.5 |
-- |
ADJ(0.5) |
-- |
H |
-- |
300 |
LDO driver |
SOT23-6 |
|
|
1.4 |
5.5 |
1 |
ADJ(0.8) |
0.125 |
H |
Y |
1000 |
MLCC,POK, Dual mode |
SOP8/SOP8(FD) |
|
|
1.4 |
5.5 |
2 |
ADJ(0.8) |
0.3 |
H |
Y |
1000 |
MLCC,POK, Dual mode |
SOP8/SOP8(FD) |
|
|
1.1 |
5.5 |
3 |
ADJ(0.8) |
0.38 |
H |
Y |
900 |
MLCC,POK,SS, Dual mode |
TSOT23-6/SOP8(FD)/ MSOP10(FD)/TDFN3X3-10 |
|
|
1.8 |
5.5 |
3 |
1.5 |
0.38 |
H |
Y |
900 |
MLCC,POK,SS |
TDFN3X3-10 |
|
|
1.1 |
5.5 |
3 |
ADJ(0.8) |
0.38 |
H |
Y |
900 |
MLCC,POK,SS, Dual mode |
TSOT23-6/SOP8(FD)/ MSOP10(FD)/TDFN3X3-10 |
|
|
1.1 |
5.5 |
3 |
ADJ(0.8) |
0.45 |
H |
Y |
1000 |
MLCC,POK |
SOP8(FD)/TDFN3X3-10 |
|
|
1.1 |
5.5 |
5 |
ADJ(0.8) |
0.2 |
H |
Y |
400 |
MLCC,POK,SS |
SOP-8(FD) |
|
|
1.1 |
5.5 |
4 |
ADJ(0.8) |
0.33 |
H |
Y |
400 |
MLCC,POK,SS |
SOP-8(FD) |
|
|
1.1 |
5.5 |
4 |
ADJ(0.8) |
0.3 |
H |
Y |
400 |
MLCC,POK,SS |
SOP-8(FD) |
|
|
1.1 |
5.5 |
2 |
ADJ(0.8) |
0.26 |
H |
Y |
400 |
MLCC,POK,SS, Dual mode |
SOP-8(FD) |
|
|
1 |
3.5 |
7 |
ADJ(0.8) |
0.138 |
H |
Y |
400 |
MLCC,POK,SS |
SOP8(FD) |
|
|
1 |
3.5 |
6 |
0.9/0.80/0.725/ 0.675/0.9/0.85/ 0.775/0.750 |
0.15 |
H |
Y |
400 |
VCCSA Power D0&D1&EN |
SOP8(FD) |
|
