CXSD62491B是一款高效的1.5MHz同步降压DC/DC稳压器集成电路，能够输出高达1.5A的输出电流。它可以在2.5V到5.5V的宽输入电压范围内工作，并将主开关和同步开关与极低的RDS（ON）集成，以最大限度地降低传导损耗。
-
[ 产品资料下载 ]
目录
7.相关产品
产品概述 返回TOP
CXSD62491B CXSD62491E is a high efficiency 1.5MHz synchronous step down DC/DC regulator IC capable of delivering up to1.5Aoutput currents. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss.
产品特点 返回TOP
· Low RDS(ON) for Internal Switches (Top/Bottom) 210mohm/130mohm
· 2.5~5.5V Input Voltage Range
· High Switching Frequency 1.5MHz Minimizes the External Components
· Internal Soft-start Limits the Inrush Current
· 100% Dropout Operation
· RoHS Compliant and Halogen Free
· Output auto Discharge Function

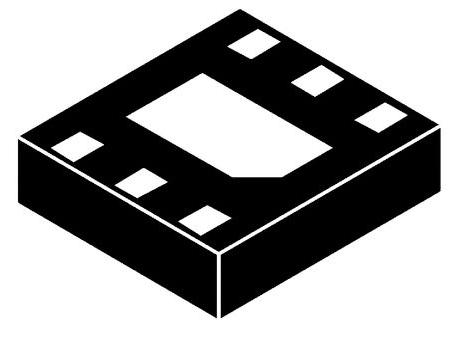

· Compact Package: DFN1.5x1.5-6
应用范围 返回TOP
· Portable Navigation Device
· Set Top Box
· USB Dongle
· Media Player
· Smart phone
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！
产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品。。。。
|
