CXSD62492L是一款高效、高频同步降压DC-DC稳压器IC，能够提供高达2个输出电流。CXSD62492L在2.7V至5.5V的宽输入电压范围内工作，并将主开关和同步开关与极低的RDS（ON）集成，以将传导损耗降至最低。
输出电压纹波小，外部电感和电容尺寸小，开关频率大于1MHz
-
[ 产品资料下载 ]
目录
7.相关产品
产品概述 返回TOP
The CXSD62492L is a high-efficiency, high frequency synchronous step-down DC-DC regulator IC capable of delivering up to2Aoutput current. The CXSD62492L operates over a wide input voltage range from 2.7V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
Low output voltage ripple and small external inductor and capacitor sizes are achieved with greater than 1MHz switching frequency.
产品特点 返回TOP
· Low RDS(ON) for Internal Switches
(top/bottom):120mΩ/90mΩ
· 2AContinuous Load Current Capability
· 2.7-5.5V Input Voltage Range
· High Switching Frequency Minimizes the External Components: 1MHz
· Internal Softstart Limits the Inrush Current
· Reliable Hic-cup Mode for Hard Short Circuit Protection:
· Reliable Non-latch off Over-voltage Protection:
· 100% Dropout Operation
· RoHS Compliant and Halogen Free
· Compact Package: DFN2X2-8.
应用范围 返回TOP
· LCD TV
· Set Top Box
· Net PC
· Mini-Notebook PC
· Access Point Router
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

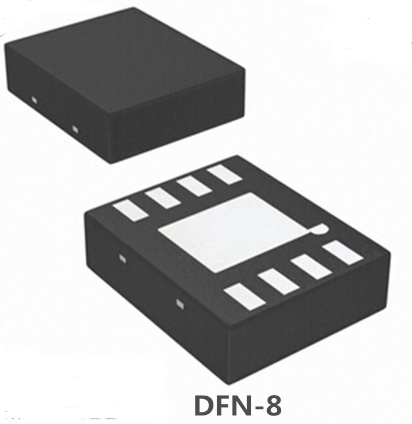

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品。。。。
|
