CXSD62507是一款高效率的1MHz同步降压DC/DC稳压器，电流模式控制IC，能够提供高达5A的输出电流。在3V到5.5V的宽输入电压范围内工作。它将主开关和同步开关与极低的RD（开）集成在一起，以最大限度地降低传导损耗。高集成度解决方案和DFN2x2-8封装实现了优化的物料清单成本，减少了外部零部件的数量。开关频率为1MHz，输入输出电压纹波小，外部电感和电容尺寸小，PCB布局空间小
-
[ 产品资料下载 ]
目录
7.相关产品
产品概述 返回TOP
The CXSD62507 is a high-efficiency 1 MHz synchronous step-down DC/DC regulator, current mode control IC capable of delivering up to 5A output current. The CXSD62507 operates over a wide input voltage range from 3V to 5.5V. It integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. High integrated solution and DFN2x2-8 package perform the optimized BOM cost and reduce external component part count. Low input and output voltage ripple, small external inductor and capacitor sizes, small PCB layout space are achieved with 1MHz switching frequency.
产品特点 返回TOP
· Low RDS(ON) for Internal Switches (Top/Bottom): 35/15 mΩ
· 3-5.5V Input Voltage Range
· 1 MHz Switching Frequency Minimizes the External Components
· Internal Soft-start Limits the Inrush Current
· Up to 98% Efficiency
· 0.6V Reference Voltage
· Shutdown Mode Draws<0.1μA Supply Current
· 100% Dropout Operation
· Power Good Indicator
· OVP/OCP/UVLO/OTP Protections
· RoHS Compliant and Halogen Free
· Compact Package: DFN2x2-8
应用范围 返回TOP
· High definition Set Top Box
· LCD TV
· Access Point Router
· Mini-notebook PC
· Net PC
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

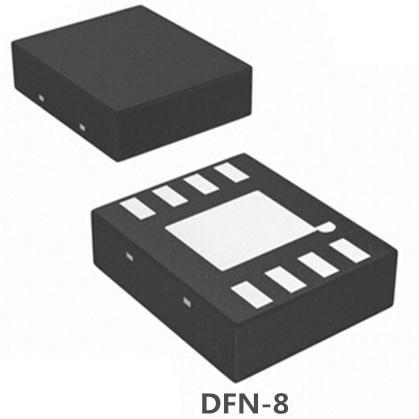

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品。。。。
|
