CXSD62172是一个8A同步降压转换器，集成了30兆瓦N沟道高侧MOSFET和9兆瓦低侧MOSFET功率因数调制或脉宽调制模式下提供出色的瞬态响应和精确的直流电压输出。
-
[ 产品资料下载 ]
目录
7.相关产品
产品概述 返回TOP
The CXSD62172 CXSD62172A CXSD62172B is a 8A, synchronous, step-down converter with integrated 30mW N-channel High-Side MOSFET and 9mW Low-Side MOSFET. The CXSD62172 CXSD62172A CXSD62172B steps down high voltage to generate low-voltage chipset or RAM supplies in notebook computers. The CXSD62172 CXSD62172A CXSD62172B provides excellent transient response and accurate DC voltage output in either PFM or PWM Mode. In Pulse Frequency Mode (PFM), the CXSD62172 CXSD62172A CXSD62172Bprovides very high efficiency over light to heavy loads with loadingmodulated switching frequencies. In PWM Mode, the converter works nearly at constant frequency for low-noise requirements. The CXSD62172 CXSD62172A CXSD62172Bis equipped with accurate current-limit, output under-voltage, and output over-voltage protections, perfect for various applications. A Power-On-Reset function monitors the voltage on VLDO to prevent wrong operation during power-on. The CXSD62172 CXSD62172A CXSD62172Bhas external adjustable soft-start and built-in an integrated output discharge method for soft stop. A soft-start ramps up the output voltage with programmable timing to reduce the start-up current. A soft-stop function actively discharges the output capacitors. The CXSD62172 CXSD62172A CXSD62172Bis available in TQFN4x4-23 (Power PAK).
产品特点 返回TOP
· Adjustable Output Voltage from +0.8V to +12V
- 0.8V Reference Voltage - +1% Accuracy over Temperature
· Operates from An Input Battery Voltage Range of +2.7V to +28V
· 20mA Low Dropout Regulator (LDO) with Fixed 5. 3V Output
· Power-On-Reset Monitoring on LDO pin
· Excellent line and load transient responses
· PFM mode for increased light load efficiency
· Programmable PWM Frequency from 100kHz to 1000kHz
· Integrated 30mW at LDO=5V N-Channel MOSFET For High Side
· Integrated 9mW at LDO=5VN-Channel MOSFET For Low Side
· Integrated Bootstrap Forward P-CH MOSFET
· External Adjustable Soft-Start and Soft-Stop
· Selectable Forced PWM or automatic PFM/PWM mode
· Power Good Monitoring
· 70% Under-Voltage Protection
· 125% Over-Voltage Protection
· Current-Limit Protection
- Using Sense Low-Side MOSFET’s RDS(ON)
· Over-Temperature Protection
· TQFN-23 4mmx4mm package
· Lead Free and Green Device Available (RoHS Compliant)
应用范围 返回TOP
· Notebook
· Mother Board
· Table PC
· Hand-Held Portable
· AIO PC
· Set-top boxes
· LCD TV
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

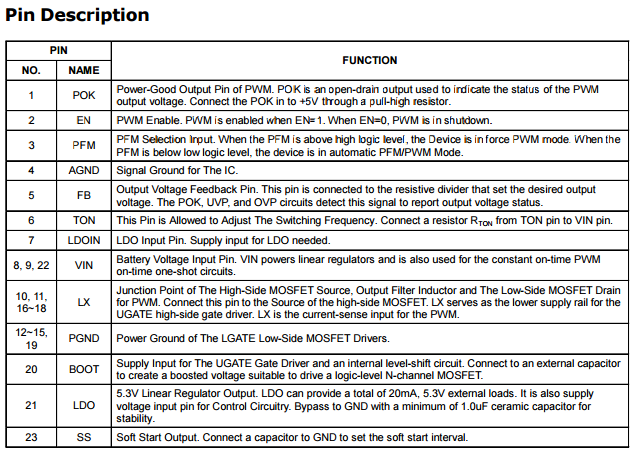

产品封装图 返回TOP

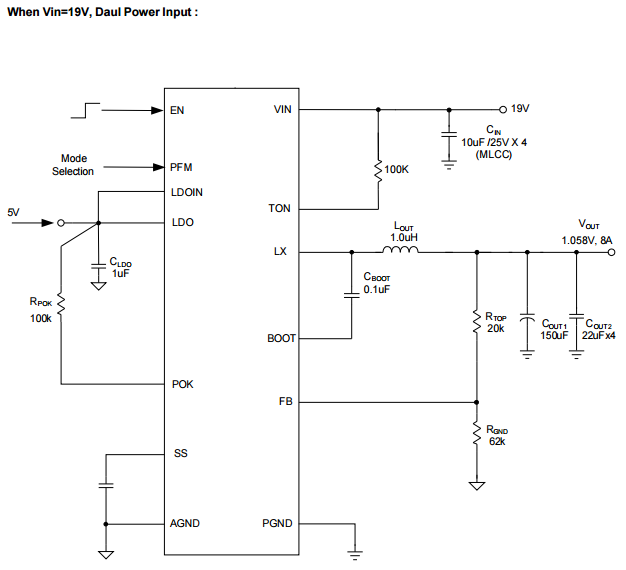

电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品.......
|
