2A, 20V Synchronous Step-Down Converter CXSD6136 is a current mode monolithic buck voltage converter. Operating with an input range of 4.5V-20V,guarantees robustness with over current protection
-
[ 产品资料下载 ]
![]()
目录
The CXSD6136 is a current mode monolithic buck voltage converter. Operating with an input range of 4.5V-20V, the CXSD6136 delivers 2A of continuous output current with two integrated N-Channel MOSFETs. At light loads, regulators operate in low frequency to maintain high efficiency and low output ripple. The CXSD6136 guarantees robustness with over current protection, thermal protection, start-up current run-away protection, and input under voltage lockout. The CXSD6136 is available in a 6-pin TSOT23-6 package, which provides a compact solution with minimum external components.
4.5V to 20V operating input range 2A output current b
Up to 95% efficiency
High efficiency at light load
Fixed 410kHz Switching frequency
Input under voltage lockout
Start-up current run-away protection
Over current protection and Hiccup
Thermal protection

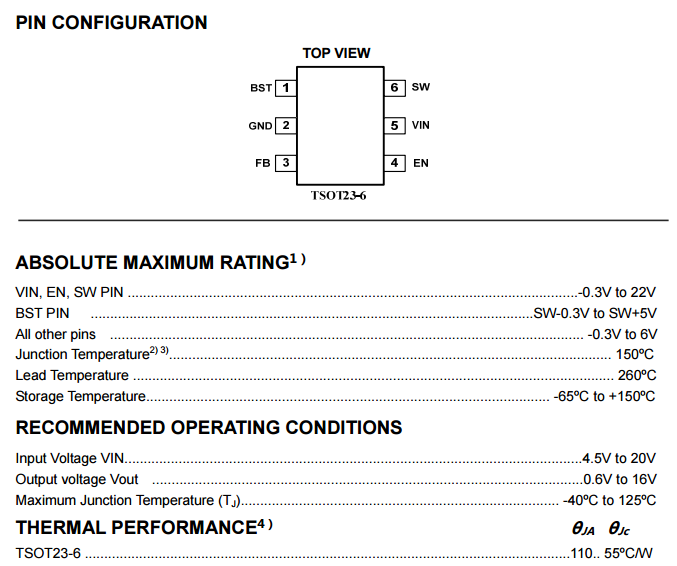

Available in TSOT23-6 package
Distributed Power Systems
Networking Systems
FPGA, DSP, ASIC Power Supplies
Green Electronics/ Appliances
Notebook Computers
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！
|
降压型DC/DC转换器(DC/DC Step-down Converter) |
|||||||
|
Part No. |
Power switching |
MODE |
VIN |
VOUT |
IQ |
FOSC |
Eff. |
|
Built-in MOSFETSynchronous |
PWM/PFM |
Max 7V |
ADJ |
35μA |
1.5MHz |
96% |
|
|
Built-in MOSFETSynchronous |
PWM/PFM |
2.6~6V |
ADJ |
40μA |
1.5MHz |
96% |
|
|
Built-in MOSFET Synchronous |
PWM/PFM |
2.6~7V |
ADJ |
50μA |
1.5MHz |
97% |
|
|
Built-in MOSFET Synchronous |
PWM/PFM |
2.5~6V |
ADJ |
40μA |
1.5MHz |
96% |
|
|
Built-in MOSFET Synchronous |
PWM/PFM |
2.5~5.5V |
ADJ |
50μA |
1.3MHz |
97% |
|
|
Built-in MOSFET Synchronous |
PWM/PFM |
2.6~6V |
ADJ |
30μA |
3MHz |
96% |
|
|
Built-in MOSFET Synchronous |
PWM/PFM |
2.6~5.5V |
ADJ |
50μA |
1.4MHz |
97% |
|
|
Built-in MOSFET Synchronous |
PWM/PFM |
3.5~16V |
ADJ |
0.4mA |
600KHz |
96% |
|
|
Built-in MOSFET Synchronous |
PWM/PFM |
3.5~16V |
ADJ |
0.4mA |
600KHz |
96% |
|
|
Built-in MOSFET Synchronous |
PWM/PFM |
4.2~18V |
ADJ |
0.8mA |
500KHz |
96% |
|
|
Built-in MOSFET Synchronous |
PWM/PFM |
4.7~20V |
ADJ |
50μA |
500KHz |
95% |
|
|
Built-in MOSFET Synchronous |
PWM/PFM |
4.7~20V |
ADJ |
50μA |
500KHz |
95% |
|
|
Built-in MOSFET Synchronous |
PWM/PFM |
4.5~20V |
ADJ |
50μA |
410KHz |
95% |
|
|
Built-in MOSFET Synchronous |
PWM/PFM |
4.5~18V |
ADJ |
80μA |
420KHz |
95% |
|
|
Built-in MOSFET Synchronous |
PWM/PFM |
4.5~18V |
ADJ |
80μA |
420KHz |
95% |
|
|
Built-in MOSFET Synchronous |
PWM/PFM |
4.5~18V |
ADJ |
80μA |
420KHz |
95% |
|
|
Built-in MOSFET |
PWM/PFM |
4~24V |
ADJ |
0.6mA |
1.4MHz |
90% |
|
|
Built-in MOSFET |
PWM/PFM |
4~38V |
ADJ |
0.6mA |
660KHz |
92% |
|
|
Built-in MOSFET |
PWM/PFM |
4~38V |
ADJ |
0.6mA |
660KHz |
92% |
|
|
Built-in MOSFET Synchronous |
PWM/PFM |
4~40V |
ADJ |
50μA |
2MHz |
93% |
|
|
Built-in MOSFET |
PWM/PFM |
4.2~40V |
ADJ |
200μA |
1.8MHz |
90% |
|
|
Built-in MOSFET Synchronous |
PWM/PFM |
4.5~24V |
ADJ |
50μA |
500KHz |
94% |
|
|
Built-in MOSFET Synchronous |
PWM |
5~20V |
0.923~15V ADJ |
60μA |
360KHz |
94% |
|
