CXSU63198是一种电流模式升压型DC-DC转换器，其PWM电路内置0.25Ω功率MOSFET，功率效率高。内部补偿网络还将6个外部补偿网络最小化组件计数。误差放大器的非反相输入连接到0.6V精密参考电压和内部软启动功能可降低励磁涌流。
-
"
目录
7.相关产品
产品概述 返回TOP
The CXSU63198 is a current mode boost DC-DC converter,Its PWM circuitry
with built-in 0.25Ω power MOSFET make this regulator highly power efficient.
The internal compensation network also minimizes as much as 6 external
component counts. The non-inverting input of error amplifier connects to a
0.6V precision reference voltage and internal soft-start function can reduce
the inrush current.The CXSU63198 is available in the SOT23-6L package and
provides space-saving PCB for the application fields.CXSU63198为一颗CC
(恒流)模式的PWM升压IC,适用于锂电池(3～4.2V)输出5V,1A的移动电源应用。
CXSU63198封装为SOT23-6,工作频率为1MHZ,可以搭配3.3uh
产品特点 返回TOP
Adjustable Output up to 24V
Internal Fixed PWM frequency: 1.0MHz
Precision Feedback Reference Voltage: 0.6V (±2%)
Internal 0.25Ω, 2.5A, 26V Power MOSFET
Shutdown Current: 0.1μA
Over Voltage Protection
Over Temperature Protection
Adjustable Over Current Protection: 0.5A ~ 2.5A
Package: SOT23-6L
应用范围 返回TOP
Chargers
LCD Displays
Digital Cameras
Handheld Devices
Portable Products
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！
产品封装图 返回TOP

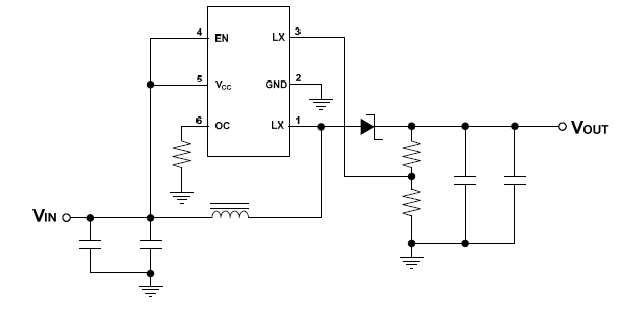

电路原理图 返回TOP
