CXSU63256是一款高效的电流模式控制升压调节器。该器件集成了130mΩ低RDS（ON）N沟道MOSFET，效率高。固定的1MHz开关频率和内部补偿减少了外部元件的尺寸和数量。内置的内部软启动电路将启动时的浪涌电流降至最低
-
[ 产品资料下载 ]
目录
7.相关产品
产品概述 返回TOP
The CXSU63256 is a high efficiency, current-mode control Boost regulator. The device integrates a 130mΩ low RDS(ON) N-channel MOSFET for high efficiency. The fixed 1MHz switching frequency and internal compensation reduce external components size and count. The build-in internal soft start circuitry minimizes the inrush current at start-up.The CXSU63256 is available in compact SOT23-6 package.
产品特点 返回TOP
· Wide Input Range: 3-8V Bias Input, 16Vout Max
· 1MHz Switching Frequency
· Minimum On Time: 100ns Typical
· Minimum Off Time: 100ns Typical
· Low RDS(ON): 130mΩ
· Rohs Compliant And Halogen Free
· Accurate Reference: 0.6VREF
· Compact Package: SOT23-6
应用范围 返回TOP
· Wled Drivers
· Networking Cards Powered From Pci Or Pci-Express Slots
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！
产品封装图 返回TOP
a

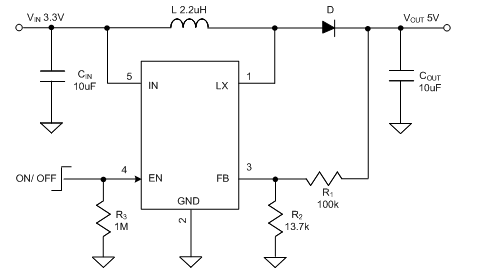

电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品.....
|
Single Output Step Up Regulator(Integrated Switch) |
||||||||||
|
Part Number |
Vin (min) (V) |
Vin (max) (V) |
UVLO (V) |
Ilim(A) |
Fsw (MHz) |
Vout,max(V) |
Feedback Voltage (V) |
Feedback Voltage accuracy |
Input Quiescent Current(uA) |
Package |
|
0.7 |
5 |
0.75 |
0.4 |
5.25 |
0.5 |
±3% |
0.5 |
SOT363 |
||
|
CXSU63245L |
0.7 |
5 |
0.75 |
0.2 |
5.25 |
0.5 |
±3% |
0.5 |
SOT363 |
|
|
0.7 |
5 |
0.75 |
0.35 |
3.3 |
3.3 |
±3% |
0.5 |
SOT235 |
||
|
CXSU63246A |
0.7 |
5 |
0.75 |
0.35 |
3 |
3 |
±3% |
0.5 |
SOT235 |
|
|
0.7 |
5 |
0.75 |
0.35 |
5.25 |
1 |
±3% |
0.5 |
SOT363 |
||
|
CXSU63247A |
0.7 |
5 |
0.75 |
0.35 |
5.25 |
5 |
±3% |
0.5 |
SOT363 |
|
|
0.9 |
4 |
0.9 |
1.8 |
1.2 |
4 |
1.2 |
±3% |
65 |
SOT236 |
|
|
1.8 |
5.25 |
1.78 |
3.2 |
0.5 |
5.5 |
1.2 |
±1.5% |
10 |
QFN2x210 |
|
|
1.8 |
5.25 |
1.78 |
5 |
0.5 |
5.5 |
1.2 |
±1.5% |
10 |
QFN2X210 |
|
|
CXSU63250A |
1.8 |
5.25 |
1.78 |
5 |
0.5 |
5.5 |
1.2 |
±1.5% |
10 |
QFN2X210 |
|
1.8 |
5.25 |
1.78 |
6 |
0.5 |
5.5 |
1.2 |
±1.5% |
10 |
QFN2X210 |
|
|
CXSU63251A |
1.8 |
5.25 |
1.78 |
6 |
0.5 |
5.5 |
1.2 |
±1.5% |
10 |
QFN2X210 |
|
CXSU63251B |
1.8 |
5.25 |
1.78 |
6 |
0.5 |
5.5 |
1.2 |
±1.5% |
10 |
QFN2x210 |
|
2.5 |
5.5 |
3 |
1 |
5.5 |
1.2 |
±1.5% |
8 |
TSOT236 |
||
|
2 |
5.5 |
2 |
6 |
0.5 |
5.5 |
1.2 |
±1.5% |
10 |
QFN2X210 |
|
|
2.3 |
5.25 |
2.3 |
6 |
0.5 |
5.5 |
1.2 |
±1.5% |
2 |
QFN 2x38 |
|
|
3 |
25 |
2.3 |
0.6 |
1 |
25 |
0.6 |
±2% |
100 |
SOT236 |
|
|
3 |
8 |
1.8 |
2 |
1 |
16 |
0.6 |
±2% |
100 |
SOT236 |
|
|
3 |
25 |
2.7 |
2 |
1 |
25 |
0.6 |
±2% |
100 |
SOT236 |
|
|
3 |
33 |
2.1 |
2 |
1 |
33 |
0.6 |
±2% |
100 |
SOT236 |
|
|
3 |
30 |
2.85 |
15 |
adj. |
30 |
1 |
±1.5% |
220 |
QFN4x418 |
|
|
3.5 |
30 |
3 |
2 |
0.85 |
30 |
1 |
±2% |
150 |
SOT236 |
|
|
2 |
6 |
1.9 |
2.5 |
1 |
6 |
0.6 |
±2% |
200 |
SOT236 |
|
|
2.5 |
5.5 |
2.4 |
2.5 |
1 |
6 |
0.6 |
±2% |
200 |
DFN3x312 |
|
|
2 |
6 |
1.9 |
4 |
1 |
6 |
0.6 |
±2% |
100 |
DFN3x310 |
|
|
8.6 |
15.9 |
8.3 |
4.5 |
0.5 |
16 |
1.25 |
±1.5% |
120 |
DFN3x310 |
|
|
3 |
9 |
2.9 |
6 |
1 |
13 |
1 |
±2% |
600 |
QFN3x316 |
|
|
3 |
5.5 |
3 |
9 |
adj. |
36 |
1.25 |
±2% |
380 |
DFN3X310 |
|
|
3 |
16 |
2.85 |
15 |
adj. |
18 |
1 |
±1.5% |
220 |
QFN4x418 |
|
|
3 |
16 |
2.85 |
15 |
adj. |
16 |
1 |
±1.5% |
230 |
QFN4x418 |
|
|
3 |
33 |
2.7 |
4 |
1 |
33 |
0.6 |
±2% |
100 |
QFN3x310 |
|
