CXLD64103是一个低损耗的三端可调稳压器，输出电流能力为0.6A。为了获得较低的压降和较快的瞬态响应，这对低压应用至关重要，对CXLD64103进行了优化。该器件可在1.2V，输入电源低于9V。在0.6A的最大电压为1.55伏时，电压下降，电流限制被修整，以确保指定的输出电流和受控的短路电流
-
[ 产品资料下载 ]
目录
7.相关产品
产品概述 返回TOP
The CXLD64103 is a low dropout three-terminal adjustable regulators with 0.6A output current capability. In order to obtain lower dropout voltage and faster transient response, which is critical for low voltage applications, the CXLD64103 has been optimized. The device is available in 1.2V with an input supply below 9V. Dropout voltage is guaranteed at a maximum of 1.55V at 0.6A. Current limit is trimmed to ensure specified output current and controlled short-circuit current. On-chip thermal limiting provides protection against any combination of overload that would create excessive junction temperatures. The CXLD64103 is available in the industry standard 3-pin, SOT-89 and SOT-223 package.
产品特点 返回TOP
· Guaranteed Output Voltage Accuracy within 2%
· Fast Transient Response
· Guaranteed Dropout Voltage at Multiple Currents
· Load Regulation : 0.4% Typ.
· Line Regulation : 1mV Typ.
· Low Dropout Voltage : 1.4V Typ. at IOUT = 600mA
· Current Limit : 0.8A Min. at TJ =25°C
· On-Chip Thermal Limiting : 150°C Typ.
· Fixed Output : 1.2V
· Standard 3-pin, SOT-89 and SOT-223 Package
· Lead Free Available (RoHS Compliant)
应用范围 返回TOP
· Voltage Regulator for CD-ROM Drivers
· Voltage Regulator for LAN Cards
· Voltage Regulator for mother Boards
· Wireless Communication Systems
· Portable Instrument
· Portable Consumer Equipment
· Low Voltage Systems

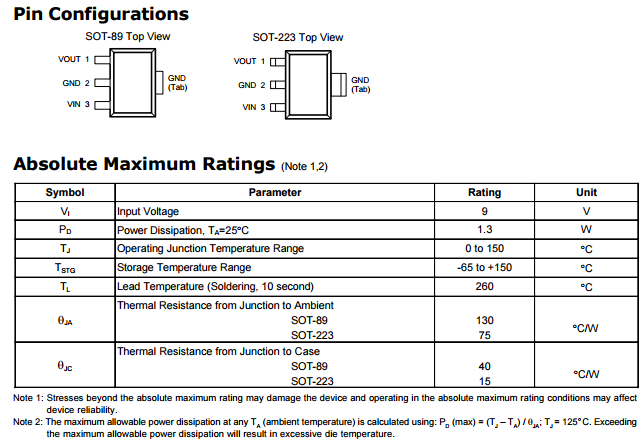

技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！
产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
Linear Regulator > Single Output LDO Regulator |
||||||||||||||
|
Part_No |
Package |
Input Voltag (V) |
VCNTL Voltage (V) |
Quies. Curre. (uA) |
Ref. Volta. (V) |
Fixed Output Voltage (V) |
Out. Curr. (max) (A) |
Dro. Volt. (V) |
EN |
POK |
High PSRR |
Low Noise |
||
|
min |
max |
min |
max |
|||||||||||
|
TO220/TO252/TO263 |
2.75 |
7 |
N |
N |
8000 |
1.25 |
3.3 |
5 |
1.3 |
N |
N |
N |
N |
|
|
TO220/TO252/TO263 |
1.75 |
7 |
N |
N |
8000 |
1.25 |
3.3 |
3 |
1.3 |
N |
N |
N |
N |
|
|
SOT223/TO252/TO220 |
2.75 |
12 |
N |
N |
5500 |
1.25 |
1.8/2.5/2.85 /3.3 |
1.5 |
1.3 |
N |
N |
N |
N |
|
|
SOT89/TO92 SOT223/TO252 |
3.1 |
9 |
N |
N |
5500 |
1.25 |
1.8/2.5/3.3 |
0.8 |
1.3 |
N |
N |
N |
N |
|
|
CXLD64101R |
SOT89/TO92 |
3.1 |
9 |
N |
N |
5500 |
1.25 |
1.8/2.5/3.3 |
0.8 |
1.3 |
N |
N |
N |
N |
|
SOT89/TO92 |
2.95 |
9 |
N |
N |
5500 |
1.25 |
N |
0.5 |
1.3 |
N |
N |
N |
N |
|
|
SOT223 |
2.9 |
9 |
N |
N |
5500 |
N |
1.2 |
0.6 |
1.4 |
N |
N |
N |
N |
|
|
SOP-8 |
2.75 |
12 |
N |
N |
5500 |
1.25 |
3.3 |
1 |
1.1 |
N |
N |
N |
N |
|
|
SOP-8 |
3 |
6 |
N |
N |
50 |
N |
2.5 |
1 |
0.21 |
N |
N |
Y |
N |
|
|
TO220-5/TO263-5 TO252-5/SOP8P |
2.05 |
5.5 |
2.75 |
5.5 |
8000 |
1.25 |
1.5/1.8/2.5 |
5 |
0.52 |
N |
N |
Y |
N |
|
|
TO220-5/TO263-5 TO252-5 |
2.05 |
5.5 |
2.75 |
12 |
8000 |
1.25 |
N |
3 |
0.45 |
N |
N |
Y |
N |
|
|
SOT-23-5/SOT-23-3 SOT-89 |
2 |
6 |
N |
N |
4 |
N |
1.2~ 3.5 |
0.15 |
0.2 |
Y |
N |
N |
N |
|
|
CXLD64109/ |
SOT23-5 |
2.7 |
6 |
N |
N |
50 |
N |
1.3 ~ 5.0 |
0.15 |
0.3 |
Y |
N |
N |
N |
|
SOT23-5/SOT89/SOP8 |
5.4 |
25 |
N |
N |
15 |
1.24 |
3.3/5 |
0.15 |
0.75 |
Y |
N |
N |
N |
|
|
SOT23-5/SOT89 SOP8P |
6.5 |
25 |
N |
N |
70 |
1.24 |
3.3/5 |
0.15 |
1.9 |
T |
N |
N |
N |
|
|
SOT25 |
2.7 |
6 |
N |
N |
60 |
N |
1.2 |
0.15 |
1.5 |
Y |
Y |
N |
N |
|
|
CXLD64113/A |
SOT23/SOT89 |
2.7 |
6 |
N |
N |
50 |
N |
1.3~ 3.4/5 |
0.3 |
0.4 |
Y |
N |
N |
N |
|
CXLD64114/A |
SOT23/SOT25/SOT89 |
2.7 |
6 |
N |
N |
60 |
N |
1.5~ 4.5 |
0.3 |
0.4 |
N |
N |
N |
N |
|
SOT25 |
2.8 |
6 |
N |
N |
135 |
0.8 |
1.2,1.5,1.8, 2.5,3.3 |
0.3 |
0.23 |
Y |
N |
N |
N |
|
|
SOT25 |
2.8 |
6 |
N |
N |
135 |
N |
1.2/3.3 |
0.3 |
0.17 |
Y |
Y |
N |
N |
|
|
SOT25 |
2.8 |
6 |
N |
N |
135 |
0.8 |
1.2 |
0.3 |
0.23 |
Y |
N |
N |
N |
|
|
CXLD64118/A |
SOT23/SOT25/TSOT25 SC70-5/VTDFN1.2x1.6 -4/TDFN1.6x1.6-6 |
2.5 |
6 |
N |
N |
40 |
N |
1.2~3.7 |
0.3 |
0.52 |
Y |
N |
Y |
N |
|
CXLD64119/A |
SOT25 |
3 |
6 |
N |
N |
135 |
1.25 |
N |
0.3 |
0.5 |
Y |
N |
N |
N |
|
SOT25 |
2.7 |
6 |
N |
N |
135 |
0.8 |
N |
0.3 |
0.5 |
Y |
N |
N |
N |
|
|
SOT25 |
3 |
6 |
N |
N |
135 |
1.2 |
N |
0.3 |
0.5 |
Y |
N |
N |
N |
|
|
SOP-8P |
1.2 |
3.5 |
3 |
6 |
2000 |
N |
0.8~3 |
2 |
0.47 |
Y |
N |
N |
N |
|
|
SOP8/TSSOP8 |
2.7 |
6 |
N |
N |
120 |
N |
1.3~3.4 |
0.5 |
0.3 |
Y |
N |
N |
N |
|
|
SOT23/SOT89/SOT223 |
2.7 |
6 |
N |
N |
60 |
N |
1.5~4.5 |
0.56 |
0.6 |
N |
N |
N |
N |
|
|
SOT23/SOT89/SOT223 |
2.9 |
6 |
N |
N |
140 |
N |
1.0~5.0 |
0.6 |
0.22 |
N |
N |
N |
N |
|
|
SOP8 |
2.9 |
6 |
N |
N |
140 |
N |
1.2,1.5, 1.8,2.5, 2.8,3,3.3 |
0.6 |
0.22 |
N |
N |
N |
N |
|
|
SOP8 |
2.9 |
6 |
N |
N |
140 |
0 |
N |
0.6 |
0.25 |
Y |
N |
N |
N |
|
|
SOP8 |
4.5 |
6 |
N |
N |
140 |
0 |
N |
0.6 |
0.25 |
N |
N |
N |
N |
|
|
TDFN3x3-10 |
1.2 |
5.5 |
3 |
5.5 |
1000 |
0.8 |
N |
1 |
0.12 |
Y |
Y |
N |
N |
|
|
SOT-89/TO-92 |
2.75 |
9 |
N |
N |
6000 |
1.25 |
2.85/3.3/3.5 |
0.3 |
1.2 |
N |
N |
N |
N |
|
|
SOT-89/TO-92 |
2.95 |
9 |
N |
N |
6000 |
1.25 |
1.8,2.5, 2.6,2.8,3.3 |
0.45 |
1.3 |
N |
N |
N |
N |
|
|
SOT-89/TO-92 |
2.75 |
9 |
N |
N |
6000 |
1.25 |
2.85/3.3 |
0.3 |
1.2 |
N |
N |
N |
N |
|
|
SOT-89/TO-92 |
2.95 |
9 |
N |
N |
6000 |
1.25 |
1.8/2.5/3.3 |
0.5 |
1.3 |
N |
N |
N |
N |
|
|
SOT89/SOT223/TO252 |
2.7 |
6 |
N |
N |
50 |
N |
1.3~3.4 |
0.9 |
0.21 |
Y |
N |
Y |
N |
|
|
SOP-8 |
1 |
5.5 |
3 |
5.5 |
1000 |
0.8 |
N |
1 |
0.12 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.1 |
3.3 |
3 |
6 |
1000 |
0.8 |
N |
5 |
0.15 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.1 |
3.3 |
3 |
6 |
1000 |
0.8 |
N |
4 |
0.17 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.1 |
3.5 |
3 |
6 |
1000 |
0.8 |
N |
1.5 |
0.12 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.2 |
5.5 |
3 |
5.5 |
1000 |
0.8 |
N |
2 |
0.24 |
Y |
Y |
N |
N |
|
|
SOP-8 |
1.2 |
3.65 |
3 |
5.5 |
1000 |
0.8 |
N |
3 |
0.23 |
Y |
Y |
N |
N |
|
|
SOP-8 |
1.2 |
5.5 |
3 |
5.5 |
1000 |
0.8 |
N |
3 |
0.23 |
Y |
Y |
N |
N |
|
|
SOP8P/TDFN3x3-10 |
1.2 |
5.5 |
3 |
5.5 |
100 |
0.8 |
N |
3 |
0.23 |
Y |
Y |
N |
N |
|
|
SOP-8P |
1.2 |
3.65 |
3 |
5.5 |
1000 |
0.8 |
N |
4 |
0.3 |
Y |
Y |
N |
N |
|
|
SOP-8P/TDFN3x3-10 |
1 |
5.25 |
3 |
5.5 |
1000 |
0.8 |
N |
5 |
0.15 |
Y |
Y |
N |
N |
|
