CXSD62602A是一款高效的直流到直流降压开关调节器，经过优化，可为射频功率放大器供电，开关频率高达3MHz，可输出高达2A的输出电流。该器件在2.4V至5.5V的输入电压范围内工作，并通过跟踪外部参考电压提供从0.6V至VIN的可调输出电压
-
[ 产品资料下载 ]
目录
7.相关产品
产品概述 返回TOP
CXSD62602A是一款高效的直流到直流降压开关调节器，经过优化，可为射频功率放大器供电，开关频率高达3MHz，可输出高达2A的输出电流。该器件在2.4V至5.5V的输入电压范围内工作，并通过跟踪外部参考电压提供从0.6V至VIN的可调输出电压The CXSD62602A is a high-efficiency, DC-to-DC step-down switching regulator optimized for powering RF power amplifiers, It has a high switching frequency of 3MHz and is capable of delivering up to 2A of output current. The device operates from an input voltage range of 2.4V to 5.5V and provides and adjustable output voltages from 0.6V to VIN by tracking an external reference voltage. Therefore, the CXSD62602A is ideal for powering RF PAs because power levels of PAs can be controlled by an external envelope signal and the system efficiency is optimized CXSD62602A is housed in a tiny DFN2x2-8L package
产品特点 返回TOP
External Reference signal
Standby Current 33uA (Vout=1.2V, Iout=0A)
Up to 96% Efficiency
Up to 2A Max Output Current
3MHz Frequency
Light Load operation
Internal Compensation
Tiny DFN2x2-8L Package
应用范围 返回TOP
RF PA
NB-IOT
Cellphone
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

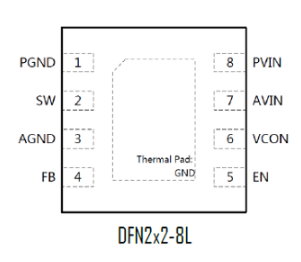

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
型号 |
产品描述 |
架构 |
VIN (min) (V) |
VIN (max) (V) |
VOUT (min) (V) |
VOUT (max) (V) |
IOUT (max) (A) |
Vfb (V) |
开关 频率 (Hz) |
IQ (uA) |
封装形式 |
|
3通道6V/3.5A |
同步降压 |
2.6 |
6 |
0.45 |
3.6 |
3.5 |
0.45 |
1.5M |
40 |
DFN4X4-24 |
|
|
3通道6V/1.5A |
内部补偿 |
2.6 |
5.5 |
0.6 |
3.6 |
1.5*3 |
0.6 |
1.5M |
40 |
||
|
18V/2A同步降压 |
内部补偿 |
4.2 |
28 |
0.8 |
9 |
2 |
0.8 |
1M |
750 |
||
|
6V/3A同步降压 |
内部补偿 |
3.6 |
6 |
0.6 |
5 |
1 |
0.6 |
1.8M |
420 |
||
|
18V/3A同步降压 |
内部补偿 |
4.5 |
18 |
0.6 |
5 |
3 |
0.6 |
500k |
177 |
||
|
6V/1A同步降压 DFN2X2-6封装 |
内部补偿 |
2.6 |
6 |
0.6 |
5 |
1 |
0.6 |
500k |
40 |
DFN2X2-6 |
|
|
7.3V/3A同步降压 |
内部补偿 |
2.4 |
7.3 |
0.6 |
5 |
3 |
0.6 |
1.5M |
42 |
SOT26 |
|
|
7V/1.2A同步降压 |
内部补偿 |
2.6 |
7.2 |
0.6 |
5 |
1 |
0.6 |
1.5M |
40 |
SOT25 |
|
|
5.5V/2A同步降压 |
3.6 |
5.5 |
0.8 |
5 |
2 |
0.8 |
1.4M |
450 |
|||
|
6V/3A同步降压 COT架构 |
内部补偿 |
2.6 |
6 |
0.45 |
5 |
3 |
0.45 |
1.5M |
|||
|
CXSD62600A |
7V/0.6A同步降压 |
内部补偿 |
2.6 |
7 |
1.11 |
5 |
0.6 |
1.11 |
1.2M |
1 |
SOT25 DFN2X2-6 |
|
CXSD62601A |
6V双路1.2A同步降压 |
内部补偿 |
2.6 |
5.5 |
0.6 |
5 |
1.2 |
0.6 |
1.2M |
38 |
SOP8 |
|
CXSD62602A |
6V/2A3MHz同步降压 |
内部补偿 |
2.6 |
5.5 |
0.6 |
5 |
2 |
0.6 |
3M |
30 |
DFN2x2-8 |
|
CXSD62603A |
18V/2A同步降压 |
内部补偿 |
4.2 |
18 |
0.6 |
6 |
2 |
0.65 |
500K |
700 |
SOT23-6 |
|
38V/0.4A同步降压 |
内部补偿 |
5 |
38 |
3.3 |
12 |
0.4 |
0.8 |
700K |
850 |
SOT23-6 |
|
|
18V/3A同步降压 |
内部补偿 |
4.5 |
18 |
0.798 |
5 |
3 |
0.798 |
700K |
177 |
SOT563 |
|
|
18V/2A同步降压 |
内部补偿 |
4.5 |
18 |
0.798 |
5 |
2 |
0.798 |
700K |
177 |
SOT563 |
