CXAO42110 CXAO42111（双）和CXAO42112（四）是高压运算放大器，设计用于提供宽输入共模电压范围和输出电压摆动。这些设备可以在±2.25V到±18V双电源或+4.5V到+36V单电源之间工作。该器件具有高转换速率、低输入偏置和偏置电流、低偏置电压和低偏置电压温度系数等特点。
CXAO42110/1/2是在-40℃到+125℃的扩展温度范围内指定的。CXAO42110单曲有绿色SOT-23-5、MSOP-8和SOIC-8封装。CXAO42111 dual有绿色SOIC-8和MSOP-8两种型号。CXAO42112四线组有绿色SOIC-14和TSSOP-14封装。
•低功耗：150μA/放大器
•宽输入共模电压范围
•低输入偏置和偏移电流
•输出短路保护
•轨对轨输出
•高输入阻抗
•低偏移电压：3mV（最大值）
•高转换率：7V/μs
-
[ CXAO42110 ]
目录
7.相关产品
产品概述 返回TOP
The CXAO42110 (single), CXAO42111 (dual) and CXAO42112 (quad) are high voltage operational amplifiers that are designed to offer a wide input common mode voltage range and output voltage swing. These devices can operate from ±2.25V to ±18V dual power supplies or from +4.5V to +36V single supplies.
The devices feature high slew rate, low input bias and offset current, low offset voltage and low offset-voltage temperature coefficient.
The CXAO42110/1/2 are specified over the extended -40℃ to +125℃ temperature range. The CXAO42110 single is available in Green SOT-23-5, MSOP-8 and SOIC-8 packages. The CXAO42111 dual is available in Green SOIC-8 and MSOP-8 packages. The CXAO42112 quad is available in Green SOIC-14 and TSSOP-14 packages.
产品特点 返回TOP
• Low Power Consumption: 150μA/Amplifier
• Wide Input Common Mode Voltage Range
• Low Input Bias and Offset Currents
• Output Short-Circuit Protection
• Rail-to-Rail Output
• High Input Impedance
• Low Offset Voltage: 3mV (MAX)
• High Slew Rate: 7V/μs
• Small Packaging:
CXAO42110 Available in SOT-23-5, MSOP-8 and
SOIC-8 Packages
CXAO42111 Available in MSOP-8 and SOIC-8 Packages
CXAO42112 Available in TSSOP-14 and SOIC-14 Packages
应用范围 返回TOP
High Impedance Sensors
Photodiode Amplifier
Precision Instrumentation
Phase-Locked Loop Filters
High End, Professional Audio
DAC Output Amplifier
ATE
Medical
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

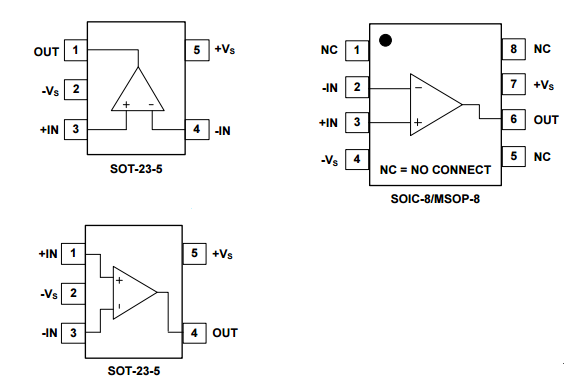

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
低功耗运算放大器 |
|||||||||||
|
Part No. |
CH |
SHDN |
VCC (Min) |
VCC (Max) |
VOS (mV) |
Iq/CH (μA) |
IB (pA) |
GBP (MHz) |
SR (V/ms) |
ENOISE (nV/√Hz) |
Package |
|
2 |
N |
2.1 |
5.5 |
5 |
60 |
10 |
1 |
520 |
27 |
SOIC-8 MSOP-8 DIP-8 |
|
|
1 |
N |
1.8 |
5.5 |
0.85 |
2.5 |
1 |
0.12 |
80 |
75 |
SOT-23-5 SC70-5 TDFN-2x2-6L |
|
|
2 |
N |
1.8 |
5.5 |
0.85 |
2.5 |
1 |
0.12 |
80 |
75 |
SOT-23-8 SOIC-8 |
|
|
4 |
N |
1.8 |
5.5 |
0.85 |
2.5 |
1 |
0.12 |
80 |
75 |
TSSOP-14 |
|
|
1 |
N |
3.3 |
24 |
1 |
50 |
5 |
1 |
300 |
25 |
SOT-23-5 SC70-5 |
|
|
2 |
N |
3.3 |
24 |
1 |
50 |
5 |
1 |
300 |
25 |
SOIC-8 MSOP-8 TDFN-2x3-8L |
|
|
4 |
N |
3.3 |
24 |
1 |
50 |
5 |
1 |
300 |
25 |
SOIC-14 |
|
|
1 |
N |
4.5 |
36 |
3 |
144 |
20 |
1.4 |
5000 |
45 |
SOT-23-5 SOIC-8 MSOP-8 |
|
|
2 |
N |
4.5 |
36 |
3 |
144 |
20 |
1.4 |
5000 |
45 |
SOIC-8 MSOP-8 |
|
|
4 |
N |
4.5 |
36 |
3 |
144 |
20 |
1.4 |
5000 |
45 |
SOIC-14 TSSOP-14 |
|
|
1 |
N |
2.1 |
5.5 |
3.5 |
5.5 |
0.5 |
0.15 |
50 |
85 |
SOT-23-5 SOIC-8 |
|
|
2 |
N |
2.1 |
5.5 |
3.5 |
5.5 |
0.5 |
0.15 |
50 |
85 |
SOIC-8 MSOP-8 |
|
|
4 |
N |
2.1 |
5.5 |
3.5 |
5.5 |
0.5 |
0.15 |
50 |
85 |
SOIC-14 TSSOP-14 |
|
|
1 |
N |
2.1 |
5.5 |
3.5 |
18 |
0.5 |
0.5 |
200 |
33 |
SOT-23-5 SOIC-8 |
|
|
2 |
N |
2.1 |
5.5 |
3.5 |
18 |
0.5 |
0.5 |
200 |
33 |
SOIC-8 MSOP-8 |
|
|
4 |
N |
2.1 |
5.5 |
3.5 |
18 |
0.5 |
0.5 |
200 |
33 |
SOIC-14 TSSOP-14 |
|
|
1 |
N |
1.8 |
5.5 |
3.4 |
80 |
3 |
1.5 |
800 |
30 |
SOT-23-5 SC70-5 SOIC-8 MSOP-8 |
|
|
2 |
N |
1.8 |
5.5 |
3.4 |
80 |
3 |
1.5 |
800 |
30 |
SOIC-8 MSOP-8 |
|
|
1 |
Y |
1.8 |
5.5 |
3.4 |
80 |
3 |
1.5 |
800 |
30 |
SOT-23-6 SOIC-8 MSOP-8 |
|
|
4 |
N |
1.8 |
5.5 |
3.4 |
80 |
3 |
1.5 |
800 |
30 |
SOIC-14 TSSOP-14 |
|
|
1 |
N |
2.1 |
5.5 |
3.5 |
46 |
0.5 |
1.1 |
520 |
27 |
SOT-23-5 SOIC-8 SC70-5 |
|
|
2 |
N |
2.1 |
5.5 |
3.5 |
46 |
0.5 |
1.1 |
520 |
27 |
SOIC-8 MSOP-8 TSSOP-8 |
|
|
1 |
Y |
2.1 |
5.5 |
3.5 |
48 |
0.5 |
1.1 |
520 |
27 |
SOT-23-6 SOIC-8 |
|
|
4 |
N |
2.1 |
5.5 |
3.5 |
46 |
0.5 |
1.1 |
520 |
27 |
SOIC-14 TSSOP-14 |
|
|
1 |
N |
2.1 |
5.5 |
3.5 |
48 |
0.5 |
1.1 |
520 |
27 |
SOT-23-5 |
|
