CXAO42159A CXAO42159B CXAO42159C CXAO42159D CXAO42159E是高精度、低噪声、低失真、轨对轨输出的CMOS电压反馈运算放大器，具有使用方便、成本低等优点。它们具有很宽的输入共模电压范围和输出电压波动，在2.5V到5.5V的单电源电压下运行。
尽管成本较低，但CXAO42159A/B/C/D/E提供了出色的总体性能。他们提供50兆赫的宽频带产品和2.3毫安/放大器的典型低功率。
CXAO42159A/B/C/D/E的低失真和快速稳定使它们成为缓冲高速A/D或D/A转换器的理想选择。CXAO42159C/E具有断电禁用功能，可将电源电流降低至75μa/放大器。这些特性使CXAO42159C/Eideal适用于尺寸和功率至关重要的便携式和电池供电应用。在-40℃到+125℃的扩展温度范围内都有规定。
•低成本
•轨对轨输出
2mV典型VOS
•增益带宽产品：50MHz
•高转换率：66V/μs
•2V步进，沉降时间为0.1%；60ns
•过载恢复时间：25ns
•低噪声：8.7nV/√Hz
•使用2.5V至5.5V电源
•输入电压范围：-0.2V至+3.8V，VS=5V
•低供电电流
-
[ CXAO42159A ]
目录
7.相关产品
产品概述 返回TOP
The CXAO42159A/B/C/D/E are high precision, low noise, low distortion, rail-to-rail output CMOS voltage feedback operational amplifiers offering ease of use and low cost. They have a wide input common mode voltage range and output voltage swing, running at single-supply voltage from 2.5V to 5.5V.
Despite being low cost, the CXAO42159A/B/C/D/E provide excellent overall performance. They offer wide gainbandwidth product to 50MHz and a typical low power of 2.3mA/amplifier.
The CXAO42159A/B/C/D/E‘s low distortion and fast settling make them ideal for buffering high speed A/D or D/A converters. The CXAO42159C/E has a power-down disable feature that reduces the supply current to 75μA/amplifier. These features make the CXAO42159C/Eideal for portable and battery-powered applications where size and power are critical. All are specified over the extended -40℃ to +125℃temperature range.
产品特点 返回TOP
• Low Cost
• Rail-to-Rail Output
2mV Typical VOS
• Gain-Bandwidth Product: 50MHz
• High Slew Rate: 66V/μs
• Settling Time to 0.1% with 2V Step: 60ns
• Overload Recovery Time: 25ns
• Low Noise: 8.7nV/√Hz
• Operates on 2.5V to 5.5V Supplies
• Input Voltage Range: -0.2V to +3.8V with VS = 5V
• Low Supply Current
2.3mA/Amplifier (TYP)
75μA/Amplifier Shutdown Current for CXAO42159C/5
• Small Packaging
CXAO42159A Available in SOT-23-5 and SOIC-8
CXAO42159B Available in MSOP-8 and SOIC-8
CXAO42159C Available in SOT-23-6 and SOIC-8
CXAO42159D Available in TSSOP-14 and SOIC-14
CXAO42159E Available in MSOP-10
应用范围 返回TOP
Data Acquisition
Process Control
Audio Processing
Video Processing
Active Filters
Test Equipment
Cell Phone PA Control
Broadband Communications
A-to-D Driver
D-to-A Driver
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

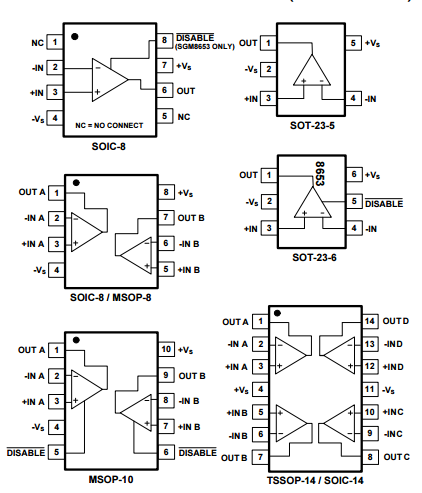

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
低噪声运算放大器 |
|||||||||||
|
Part No. |
CH |
SHDN |
VCC (Min) |
VCC (Max) |
VOS (mV) |
Iq/CH (μA) |
IB (pA) |
GBP (MHz) |
SR (V/μs) |
ENOISE (nV/√Hz) |
Package |
|
1 |
N |
2.1 |
5.5 |
4 |
1.2 |
1 |
11 |
8.5 |
12.5 |
SOT-23-5 SOIC-8 SC70-5 |
|
|
2 |
N |
2.1 |
5.5 |
4 |
1.1 |
1 |
11 |
8.5 |
12.5 |
SOIC-8 MSOP-8 TSSOP-8 |
|
|
1 |
Y |
2.1 |
5.5 |
4 |
1.2 |
1 |
11 |
8.5 |
12.5 |
SOT-23-6 SOIC-8 |
|
|
4 |
N |
2.1 |
5.5 |
4 |
1.1 |
1 |
11 |
8.5 |
12.5 |
SOIC-14 TSSOP-14 |
|
|
1 |
N |
2 |
5.5 |
3 |
0.27 |
1 |
3 |
1.7 |
17.5 |
SOT-23-5 SOIC-8 SC70-5 |
|
|
2 |
N |
2 |
5.5 |
3 |
0.21 |
1 |
3 |
1.7 |
17.5 |
SOIC-8 MSOP-8 |
|
|
1 |
Y |
2 |
5.5 |
3 |
0.27 |
1 |
3 |
1.7 |
17.5 |
SOT-23-6 SOIC-8 |
|
|
4 |
N |
2 |
5.5 |
3 |
0.21 |
1 |
3 |
1.7 |
17.5 |
SOIC-14 TSSOP-14 |
|
|
1 |
N |
2 |
5.5 |
3.5 |
0.57 |
1 |
6 |
3.7 |
13 |
SOT-23-5 SOIC-8 SC70-5 |
|
|
2 |
N |
2 |
5.5 |
3.5 |
0.48 |
1 |
6 |
3.7 |
13 |
MSOP-8 SOIC-8 |
|
|
1 |
Y |
2 |
5.5 |
3.5 |
0.57 |
1 |
6 |
3.7 |
13 |
SOT-23-6 SOIC-8 |
|
|
4 |
N |
2.5 |
5.5 |
3.5 |
0.47 |
1 |
6 |
3.7 |
12 |
SOIC-14 TSSOP-14 |
|
|
1 |
N |
2.5 |
5.5 |
8 |
2.3 |
6 |
50 |
66 |
8.7@1MHz |
SOT-23-5 SOIC-8 |
|
|
2 |
N |
2.5 |
5.5 |
8 |
2.3 |
6 |
50 |
66 |
8.7@2MHz |
SOIC-8 MSOP-8 |
|
|
1 |
Y |
2.5 |
5.5 |
8 |
2.3 |
6 |
50 |
66 |
8.7@3MHz |
SOT-23-6 SOIC-8 |
|
|
4 |
N |
2.5 |
5.5 |
8 |
2.3 |
6 |
50 |
66 |
8.7@4MHz |
SOIC-14 TSSOP-14 |
|
|
2 |
Y |
2.5 |
5.5 |
8 |
2.3 |
6 |
50 |
66 |
8.7@5MHz |
MSOP-10 |
|
