CXAS42231是一款数字音频放大器，能够驱动25W（BTL）的每对8负载扬声器和50W（PBTL）的4负载扬声器，在24伏电源下工作，无需外部散热器或风扇，即可播放音乐。CXAS42231提供高级音频处理功能，如音量控制、30个EQ频段、音频混音、3D环绕声和动态范围控制（DRC）。通过一个简单的I2 C控制接口，这些都是完全可编程的。提供了可靠的保护电路，以保护CXAS42231免受意外错误操作条件造成的损坏。CXAS42231的全数字电路设计比模拟电路设计实现的模拟AB类或D类音频放大器更能容忍噪声和PVT（过程电压和温度）变化。CXAS42231由于其强大的内置防弹出电路，在瞬时电源开/关或静音/关机切换期间不会弹出
-
[ CXAS42231 ]
目录
7.相关产品
产品概述 返回TOP
CXAS42231 is a digital audio amplifier capable of driving 25W (BTL) each to a pair of 8 load speaker and 50W (PBTL) to a 4 load speaker operating at 24V supply without external heat-sink or fan requirement with play music. CXAS42231 provides advanced audio processing functions, such as volume control, 30 EQ bands, audio mixing, 3D surround sound and Dynamic Range Control (DRC). These are fully programmable via a simple I2 C control interface. Robust protection circuits are provided to protect CXAS42231 from damage due to accidental erroneous operating condition. The full digital circuit design of CXAS42231 is more tolerant to noise and PVT (Process Voltage, and Temperature) variation than the analog class-AB or class-D audio amplifier counterpart implemented by analog circuit design. CXAS42231 is pop free during instantaneous power on/off or mute/shut down switching because of its robust built-in anti-pop circuit

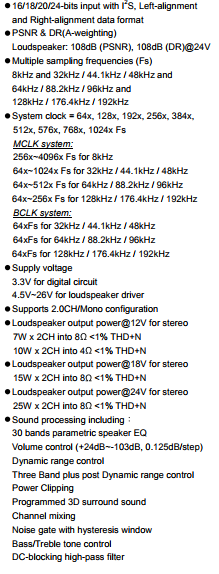

产品特点 返回TOP
应用范围 返回TOP
TV audio
Boom-box, CD and DVD receiver, docking system
Powered speaker
Wireless audio
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

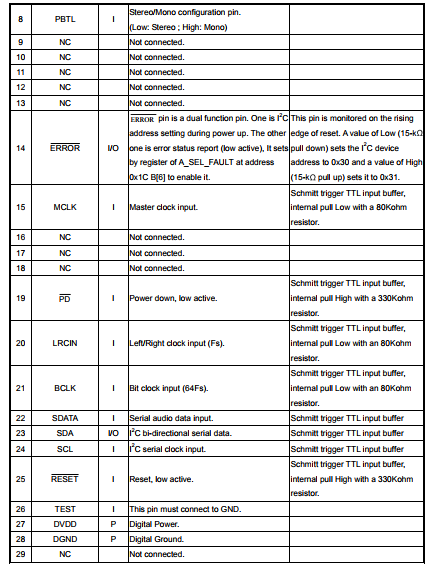

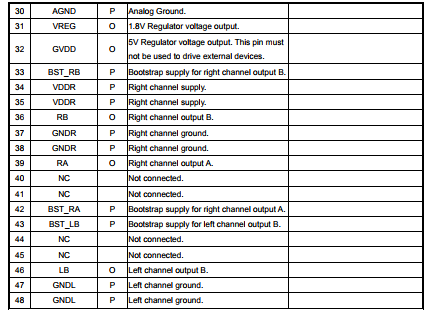

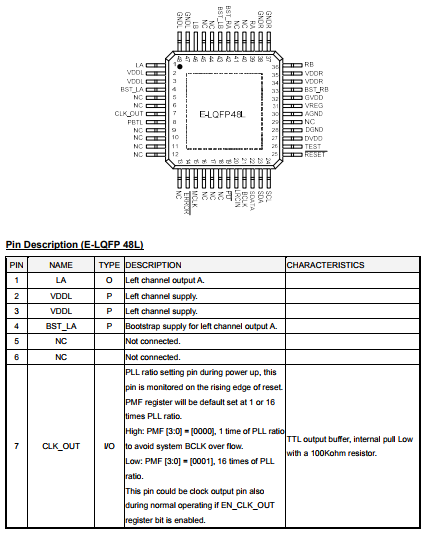

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
数字功放（内置DSP） |
||||
|
产品型号 |
简介 |
工作电压 |
封装 |
备注 |
|
支持2.0 1.0 1*50W、2x25W立体声 30段EQ 3段DRC |
4.5-26V 3.3V |
ETSSOP-24 |
2x25W(8Ω)/50W(4Ω) I2S数字功放30EQ DRC/ TBDRC with post DRC，3D 环绕音效，内置锁相环，I2S output |
|
|
支持2.0 1.0 1*50W、2x25W立体声 30段EQ 3段DRC |
4.5-26V 3.3V |
ELQFP-48 7x7 mm |
2x25W(8Ω)/50W(4Ω) I2S数字功放，30 EQ，DRC/ TBDRC with post DRC，3D 环绕音效，内置锁相环，I2S output DRC，DRC， |
|
