CXAS42240由四个独立的、高增益、内部频率补偿运算放大器组成，这些运算放大器设计用于在一个电源上通过宽电压范围工作。也可以通过分离电源进行操作。CXAS42240的输入共模范围可以超出导轨，并且CXAS42240具有导轨到导轨的输出电压摆动。每个放大器的静态电流为2毫安。CXAS42240还具有快速旋转和稳定时间，以及高输出驱动能力300毫安（源/汇），这些特点使这些放大器成为TFT-LCD的理想参考缓冲器。其他应用包括电池电源、便携式设备以及任何重要的低功耗应用
宽电源工作范围+4.5V至+16.5V
输入公共电压范围超出轨道
轨对轨输出电压摆动
低输入偏移电压3mV（典型）
宽带（单位增益）30MHz
低静态电流：每个放大器2mA
大直流电压增益85dB（典型）
转换率30V/μs
单位增益稳定
-
[ CXAS42240 ]
目录
7.相关产品
产品概述 返回TOP
The CXAS42240 consists of four independent, high gain, internally frequency compensated operational amplifiers which were designed to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible. The input common mode range of the CXAS42240 can be beyond the rails, and the CXAS42240 are with rail-to-rails output voltage swing. The quiescent current is 2mA per amplifier. The CXAS42240 also feature fast slewing and settle-times, as well as high output drive capability of 300mA (source/sink).These features make these amplifiers ideal for use as reference buffers for TFT-LCD. Other applications include battery power, portable devices, and anywhere low power consumption is important. The CXAS42240 is housed in a TSSOP-14 and TSSOOP-14 (FD) packages.
产品特点 返回TOP
Wide Supply Operation Range +4.5V to +16.5V
Input Common Voltage Range Beyond the Rails
Rail-to-Rail Output Voltage Swing
Low Input Offset Voltage 3mV (Typical)
Wide Bandwidth (unit gain) 30MHz
Low Quiescent Current: 2mA per Amplifier
Large DC Voltage Gain 85dB (Typical)
Slew-Rate 30V/μs
Unit-Gain Stable
应用范围 返回TOP
Portable Equipment
LCD-TV Equipment
Battery-Powered Equipment
ASIC Input or Output Amplifier
Low Power/Low Voltage Applications
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

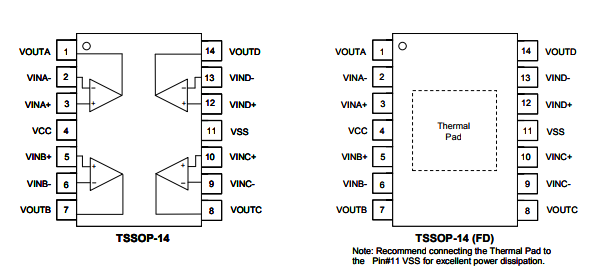

产品封装图 返回TOP
电路原理图 返回TOP
a
相关芯片选择指南 返回TOP 更多同类产品......
|
Operational Amplifier |
|||||||||
|
Part NO. |
VDD (V)min |
VDD (V) max |
CH |
IOUT (mA) |
S/R (V/μs) |
BW (MHz) |
Offset (mV) |
Note |
Package |
|
2.2 |
5.5 |
1 |
66 |
6.5 |
6.5 |
1.5 |
Rail-to-Rail Input/Output |
SC-70-5/SOT-23-5 |
|
|
2 |
5.5 |
1 |
12 |
1 |
3 |
1 |
Rail-to-Rail Input/Output |
SOT-23-5 |
|
|
3 |
6.5 |
2 |
100 |
5 |
6 |
5 |
Rail-to-Rail Output |
MSOP-8 |
|
|
2.2 |
7 |
1 |
100 |
6.5 |
6.5 |
5 |
Rail-to-Rail Input/Output |
SOT-23-5/SC-70-5 |
|
|
2.2 |
7 |
1 |
100 |
6.5 |
6.5 |
2 |
Rail-to-Rail Input/Output |
SOT-23-5/WDFN1.6X1.6-6 |
|
|
2.2 |
5.5 |
2 |
66 |
6 |
2.5 |
5 |
Rail-to-Rail Input/Output |
MSOP-8/SOP-8/SOT-23-8 |
|
|
3 |
5.5 |
4 |
66 |
6 |
2.5 |
5 |
Rail-to-Rail Input/Output |
TSSOP-14 |
|
|
4.5 |
16 |
2 |
50 |
5.5 |
4 |
3 |
Rail-to-Rail Input/Output |
SOP-8/MSOP-8/SOP-8(FD) |
|
|
4.5 |
16 |
4 |
50 |
5.5 |
4 |
3 |
Rail-to-Rail Input/Output |
TSSOP-14/TQFN4X4-16 |
|
|
4.5 |
16.5 |
4 |
300 |
30 |
30 |
3 |
Rail-to-Rail Output |
TSSOP-14(FD) |
|
|
4.5 |
20 |
1 |
65 |
150 |
30 |
2 |
Rail-to-Rail Input/Output |
TSOT-23-5/SC-70-5 |
|
|
4.5 |
20 |
2 |
65 |
150 |
30 |
2 |
Rail-to-Rail Input/Output |
SOP-8(FD)/MSOP-8 |
|
|
4.5 |
20 |
4 |
65 |
150 |
30 |
2 |
Rail-to-Rail Input/Output |
TSSOP-14/(FD) |
|
|
4.5 |
19.5 |
1 |
400 |
80 |
35 |
3 |
Rail-to-Rail Output |
TDFN3X3-8 |
|
|
4.5 |
20 |
1 |
400 |
50 |
35 |
3 |
Rail-to-Rail Input/Output |
TDFN3X3-8/MSOP-8(FD) |
|
|
4.5 |
20 |
4 |
400 |
50 |
35 |
3 |
Rail-to-Rail Output |
TSSOP-14(FD)/TQFN4X4-16 |
|
