CXAS42235 CXAS42235A是一个输入/输出轨对轨运算放大器。可在+2.2V至+7V单电源或±1.1V至±3.5双电源下工作。CXAS42235 CXAS42235A可以驱动66mA进入电阻负载，使其在10%的电源轨内。交流性能优良，带宽6.5MHz，转换速率6.5V/μs，开环增益95dB，相位裕度60度，失真小。CXAS42235 CXAS42235A每个放大器的供电电流仅为500μA。它非常适合于低电流消耗的应用，以控制大电流负载。应用包括计算机的音频放大、声音端口、声卡和机顶盒。CXAS42235 CXAS42235A封装在5针小型SOT-23-5和SC-70-5（SOT-353）封装中。+2.2V至+7V单电源操作
“输入/输出轨对轨”输入电流低
·高输出驱动能力
·低静态电流：500μA@5V
·高转换率6.5V/μs
·高增益带宽产品6.5MHz
·高开环增益95dB
“高PSRR 70dB
-
[ CXAS42235 ]
目录
7.相关产品
产品概述 返回TOP
CXAS42235 CXAS42235A is a input/output rail-to-rail Operational Amplifier. It can be operated from +2.2V to +7V single supply or from ±1.1V to ±3.5 dual supply. CXAS42235 CXAS42235A can drive 66mA into resistor loads to within 10% power rail. AC performance is very excellent with 6.5MHz bandwidth, 6.5V/μs Slew Rate, 95dB open loop gain, 60 degree phase margin and low distortion. Supply current of CXAS42235 CXAS42235A is only 500μA per Amplifier. It is very suitable for low current consumption applications to control high current loads. Applications include audio amplification for computers, sound ports, sound cards and set-top boxes. CXAS42235 CXAS42235A is housed in a 5-pin small SOT-23-5 and SC-70-5 (SOT-353) package.
产品特点 返回TOP
„ +2.2V to +7V Single-Supply Operation
„ Input / Output Rail-to-Rail „ Low Input Current
„ High Output Driving Capacity
„ Low Quiescent Current: 500μA @ 5V
„ High Slew Rate 6.5V/μs
„ High Gain-Bandwidth Product 6.5MHz
„ High Open Loop Gain 95dB
„ High PSRR 70dB
应用范围 返回TOP
„ Headphone Driver
„ Portable Equipment
„ Battery-Powered Equipment
„ Multimedia Audio
„ ASIC Input or Output Amplifier
„ Sensor Amplifier
„ Low Power/Low Voltage Applications
„ Set-up Box Audio HP or Pre-driver Applications
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

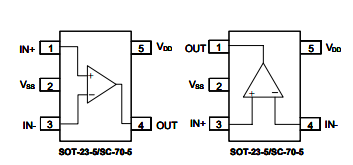

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
Operational Amplifier |
|||||||||
|
Part NO. |
VDD (V)min |
VDD (V) max |
CH |
IOUT (mA) |
S/R (V/μs) |
BW (MHz) |
Offset (mV) |
Note |
Package |
|
2.2 |
5.5 |
1 |
66 |
6.5 |
6.5 |
1.5 |
Rail-to-Rail Input/Output |
SC-70-5/SOT-23-5 |
|
|
2 |
5.5 |
1 |
12 |
1 |
3 |
1 |
Rail-to-Rail Input/Output |
SOT-23-5 |
|
|
3 |
6.5 |
2 |
100 |
5 |
6 |
5 |
Rail-to-Rail Output |
MSOP-8 |
|
|
2.2 |
7 |
1 |
100 |
6.5 |
6.5 |
5 |
Rail-to-Rail Input/Output |
SOT-23-5/SC-70-5 |
|
|
2.2 |
7 |
1 |
100 |
6.5 |
6.5 |
2 |
Rail-to-Rail Input/Output |
SOT-23-5/WDFN1.6X1.6-6 |
|
|
2.2 |
5.5 |
2 |
66 |
6 |
2.5 |
5 |
Rail-to-Rail Input/Output |
MSOP-8/SOP-8/SOT-23-8 |
|
|
3 |
5.5 |
4 |
66 |
6 |
2.5 |
5 |
Rail-to-Rail Input/Output |
TSSOP-14 |
|
|
4.5 |
16 |
2 |
50 |
5.5 |
4 |
3 |
Rail-to-Rail Input/Output |
SOP-8/MSOP-8/SOP-8(FD) |
|
|
4.5 |
16 |
4 |
50 |
5.5 |
4 |
3 |
Rail-to-Rail Input/Output |
TSSOP-14/TQFN4X4-16 |
|
|
4.5 |
16.5 |
4 |
300 |
30 |
30 |
3 |
Rail-to-Rail Output |
TSSOP-14(FD) |
|
|
4.5 |
20 |
1 |
65 |
150 |
30 |
2 |
Rail-to-Rail Input/Output |
TSOT-23-5/SC-70-5 |
|
|
4.5 |
20 |
2 |
65 |
150 |
30 |
2 |
Rail-to-Rail Input/Output |
SOP-8(FD)/MSOP-8 |
|
|
4.5 |
20 |
4 |
65 |
150 |
30 |
2 |
Rail-to-Rail Input/Output |
TSSOP-14/(FD) |
|
|
4.5 |
19.5 |
1 |
400 |
80 |
35 |
3 |
Rail-to-Rail Output |
TDFN3X3-8 |
|
|
4.5 |
20 |
1 |
400 |
50 |
35 |
3 |
Rail-to-Rail Input/Output |
TDFN3X3-8/MSOP-8(FD) |
|
|
4.5 |
20 |
4 |
400 |
50 |
35 |
3 |
Rail-to-Rail Output |
TSSOP-14(FD)/TQFN4X4-16 |
|
