EPROM/ROM-Based 8-Bit Microcontroller Series CX8PE54 CX8PE56family of low-cost, high speed, high noise immunity, EPROM/ROM-based 8-bit CMOS microcontrollers

   产品概述 返回TOPon0嘉泰姆

The CX8PE54/CX8PE56 series is a family of low-cost, high speed, high noise immunity, EPROM/ROM-based 8-bit CMOS microcontrollers. It employs a RISC architecture with only 42 instructions. All instructions are single cycle except for program branches which take two cycles. The easy to use and easy to remember instruction set reduces develoCXent time significantly. The FM8PE54/E56 series consists of Power-on Reset (POR), Brown-out Reset (BOR), Power-up Reset Timer (PWRT), Oscillator Start-up Timer(OST), Watchdog Timer, EPROM/ROM, SRAM, tri-state I/O port, I/O pull-high/open-drain/pull-down control, Power saving SLEEP mode, real time programmable clock/counter, Interrupt, Wake-up from SLEEP mode, and Code Protection for EPROM products. There are three oscillator configurations to choose from, including the power-saving LP (Low Power) oscillator and cost saving RC oscillator. The FM8PE54/E54E address 512×13 of program memory, and the FM8PE56/E56E address 1K×13 of program memory. The FM8PE54/E56 can directly or indirectly address its register files and data memory. All special function registers including the program counter are mapped in the data memory.

   产品特点 返回TOPon0嘉泰姆

  ‧ Direct, indirect addressing modes for data accessing on0嘉泰姆

‧ 8-bit real time clock/counter (Timer0) with 8-bit programmable prescaler on0嘉泰姆

‧ Internal Power-on Reset (POR)on0嘉泰姆

 ‧ Built-in Low Voltage Detector (LVD) for Brown-out Reset (BOR) on0嘉泰姆

‧ Power-up Reset Timer (PWRT) and Oscillator Start-up Timer(OST) on0嘉泰姆

‧ On chip Watchdog Timer (WDT) with internal oscillator for reliable operation and soft-ware watch-dog enable/disable control on0嘉泰姆

‧ Two I/O ports IOA and IOB with independent direction control (maximum 16 I/O pins) on0嘉泰姆

‧ Soft-ware I/O pull-high/pull-down or open-drain control on0嘉泰姆

‧ One internal interrupt source: Timer0 overflow; Two external interrupt source: INT pin, Port B input change on0嘉泰姆

‧ Wake-up from SLEEP by INT pin or Port B input change on0嘉泰姆

‧ Power saving SLEEP mode on0嘉泰姆

‧ Built-in 8MHz, 4MHz, 1MHz, and 455KHz internal RC oscillator on0嘉泰姆

‧ Programmable Code Protection on0嘉泰姆

‧ Selectable oscillator options: on0嘉泰姆

- ERC: External Resistor/Capacitor Oscillator on0嘉泰姆

- HF: High Frequency Crystal/Resonator Oscillator on0嘉泰姆

- XT: Crystal/Resonator Oscillator on0嘉泰姆

- LF: Low Frequency Crystal Oscillator on0嘉泰姆

- IRC: Internal Resistor/Capacitor Oscillator on0嘉泰姆

- ERIC: External Resistor/Internal Capacitor Oscillator on0嘉泰姆

‧ Wide-operating voltage range: on0嘉泰姆

- EPROM : 2.3V to 5.5V on0嘉泰姆

- ROM : 2.3V to 5.5Von0嘉泰姆

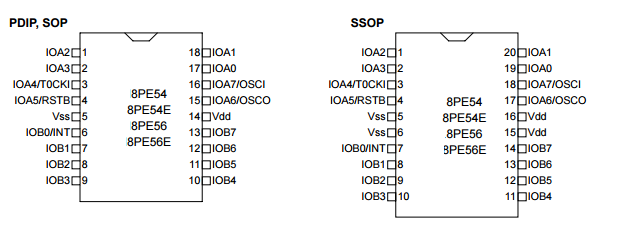

   应用范围 返回TOPon0嘉泰姆

   aon0嘉泰姆
